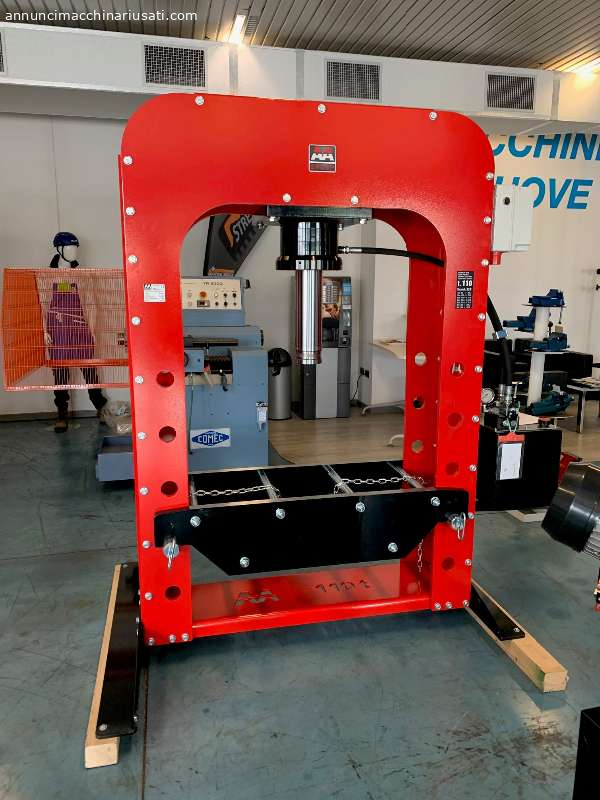

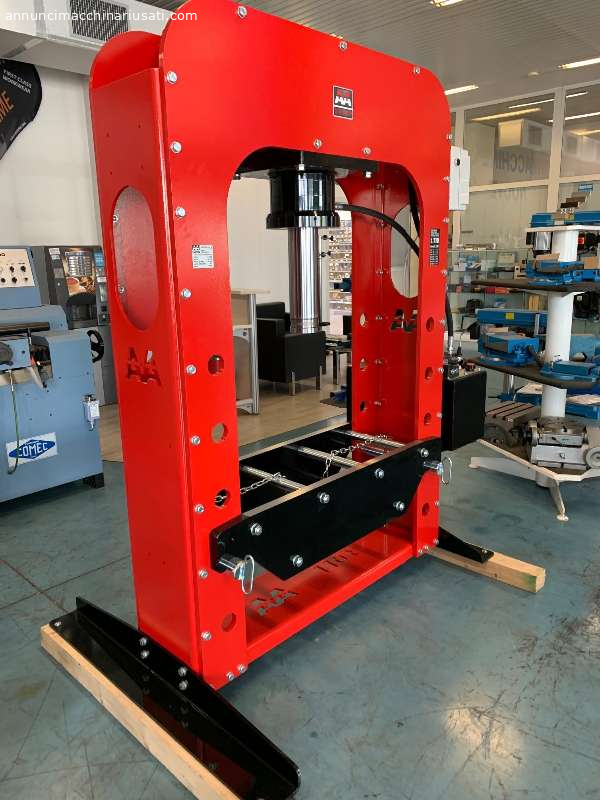

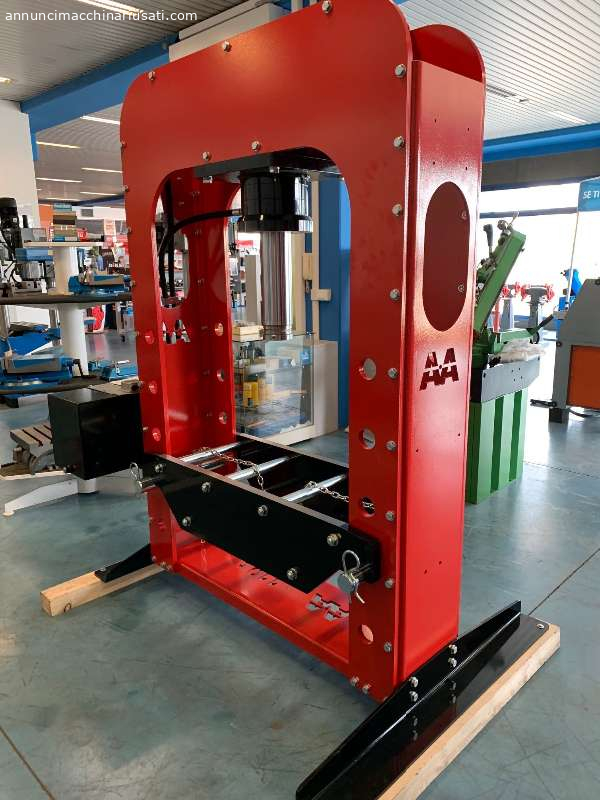

AXA 110 Ton electro-hydraulic press
Made in Italy
equipped with:

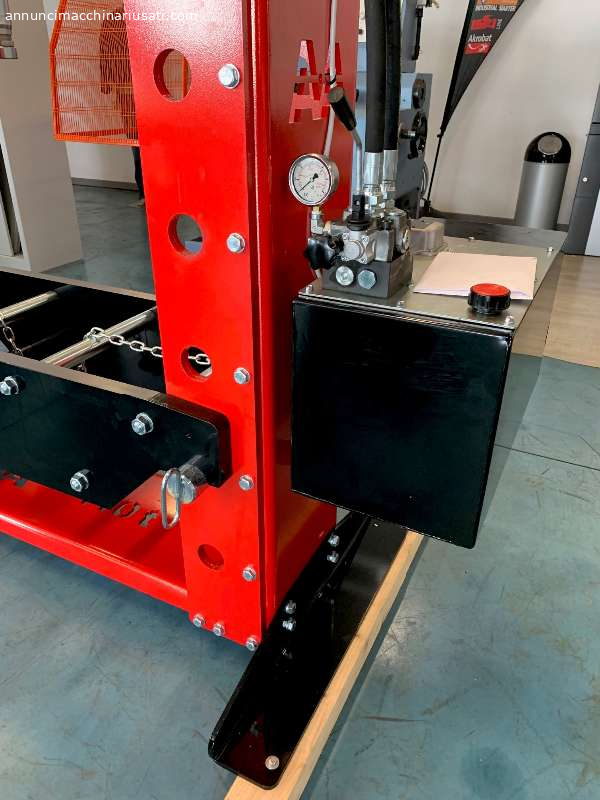

400 V 50-60 Hz immersed motor control unit.
Pump for rapid approach and return set at 20 bar.
Adjustable pressure pump with handwheel to obtain the required power.
Relief valve with mechanical block to prevent overpressure.
Pressure gauge (standard) which allows you to calibrate the power delivered with extreme precision.
The P110MR is the only hydraulic press composed of 2 uprights in a monolithic structure in FE510 laser cut
without welding at the points of greatest stress
. This feature gives it extraordinary robustness.
It is non-deformable and guarantees narrow working tolerances. The P110MR is equipped with a 30 liter tank and has a rapid descent speed of 1,400 mm/min.
Weight: 1,100 kg
Max pressure: 350 bar
Max flow rate: t.
110 Rapid flow rate: l/min 34
Slow flow rate: l/min 5
Inside shoulders: mm 1004
Rapid rod advancement: mm/min 1,400
Slow rod advancement: mm/min: 130
Voltage: V 400
Frequency: Hz 50-60
Power : kW 3
Max. absorbed current : A 7.3
Cylinder stroke : mm 300
Cylinder diameter : mm 200
Rod diameter : mm 110
Piston descent speed : mm/sec 23
Tank capacity : 30 liters
Weight : 1038 Kg
Dimensions : (HXPXL) 1,880 x 1,230 x 2030 mm
