Used CNC Lathe Doosan Mod. Puma 2100SY/F0iTD

If you are looking for a high quality used CNC lathe, the Doosan Mod. Puma 2100SY/F0iTD is definitely a machine that deserves your attention. With a robust design and high performance, this lathe is designed to meet the most demanding needs in the machining industry.

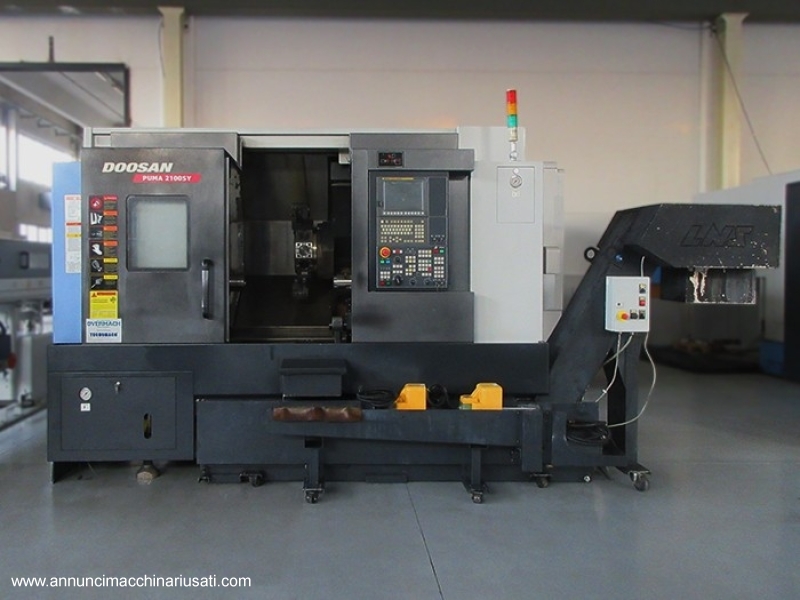

Visual Appearance and Structure

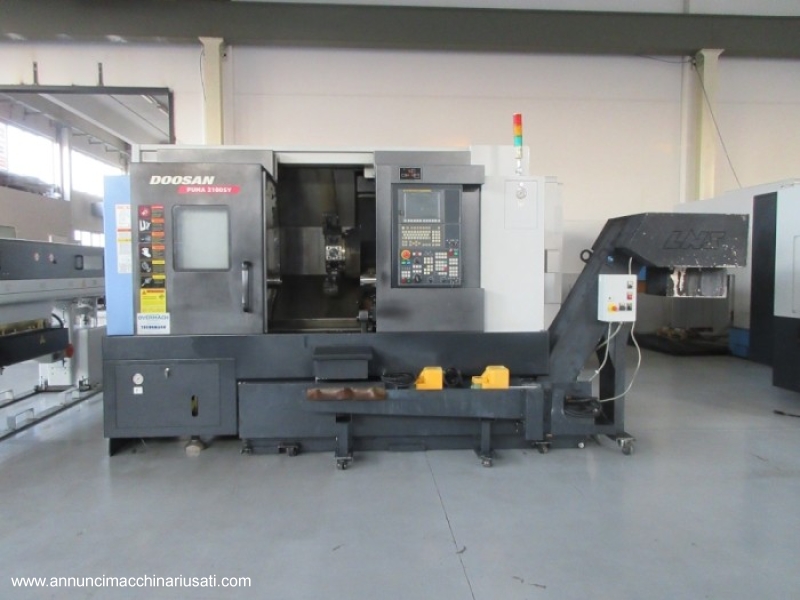

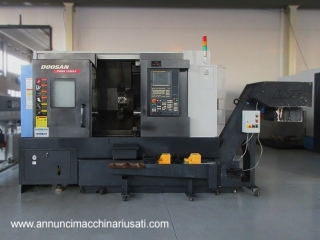

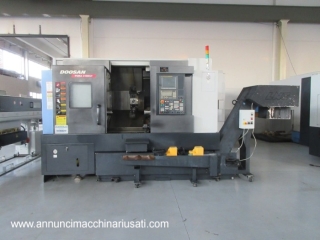

The Doosan Puma 2100SY/F0iTD presents itself as an impressive machine, built with high quality materials and with particular attention to detail. The finish is a dark metallic grey, giving a modern and professional look. The machine is equipped with a large control panel, well positioned to facilitate the operator, and the ergonomic design makes all the main functions accessible.

Dimensions and Processing Capacity

This CNC lathe has exceptional technical specifications, suitable for complex machining:

• Max rotating diameter on the bench : Ø 780 mm
• Max rotating diameter on the carriage : Ø 630 mm
• Max turning diameter : Ø 406 mm
• Max turning length : 520 mm
• Bar passage : 65 mm

The generous dimensions of the Puma 2100SY/F0iTD make it ideal for machining large pieces, without compromising precision.

Racing and Advancements

The strokes are designed to offer great flexibility during the turning process:

• X axis travel : 260 mm
• Z axis travel : 590 mm
• Y axis travel : +102/-51 mm
• B axis travel : 590 mm

Fast forwards are equally impressive:

• Rapid feed axes X – Z – B : 30 m/min
• Y axis rapid feed : 10 m/min

These characteristics allow excellent productivity and a significant reduction in cycle times to be achieved.

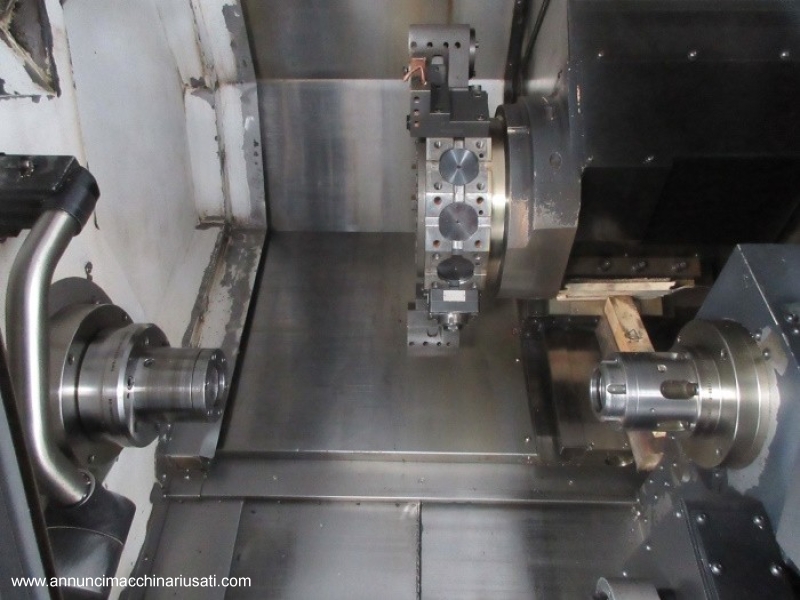

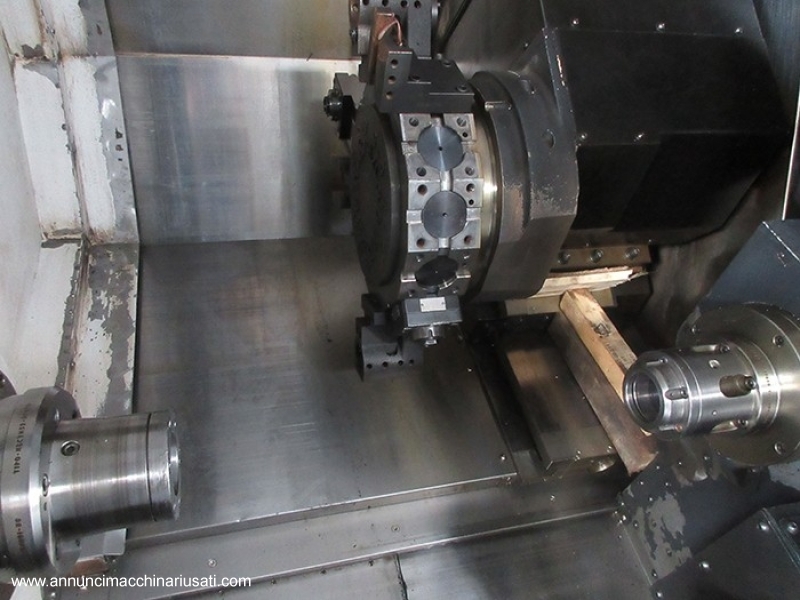

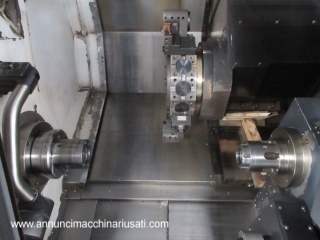

Turretting and Tools

The Doosan Puma 2100SY/F0iTD is equipped with a BMT65 which offers:

• Number of positions: 12
• Motorized tool rotation speed : 5000 rpm
• Power tool motor power : 5.5 kW

The size of the turning tools is 25x25 mm and the maximum diameter is 40 mm . These specifications make the lathe extremely versatile and capable of handling a variety of machining operations.

Usage Procedure

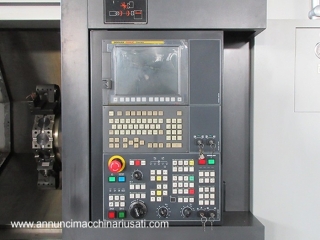

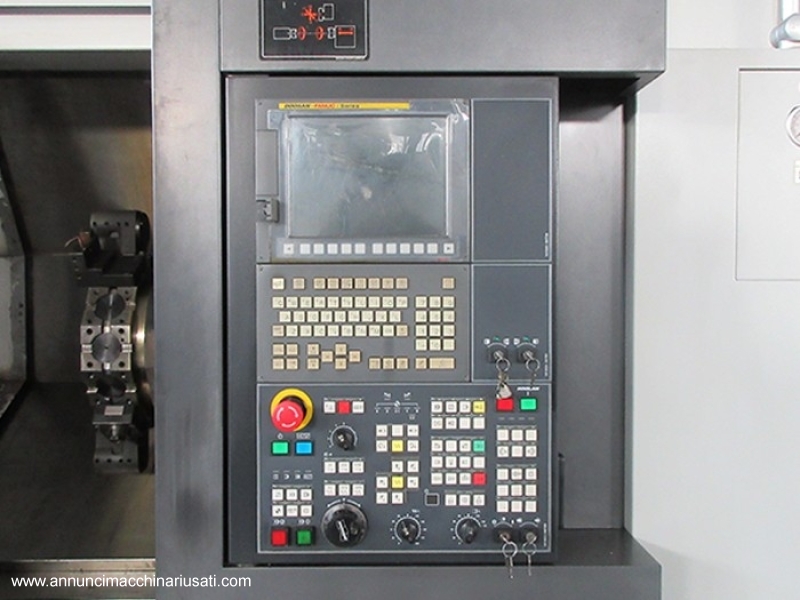

Using the Doosan Puma 2100SY/F0iTD is a simple and intuitive process. After setting the workpiece on the spindle, the operator can select the machining program via the FANUC i-series control panel. Thanks to CNC technology, the lathe automatically performs cutting operations with millimeter precision. Bars of materials can be loaded thanks to the Top Bar Loader, which further increases operational efficiency.

Maintenance and Safety

Maintenance of the Puma 2100SY/F0iTD is essential to ensure optimal performance. It is recommended:

• Lubricate moving parts regularly.
• Check and replace worn tools.
• Perform periodic cleaning to remove chips and dust.

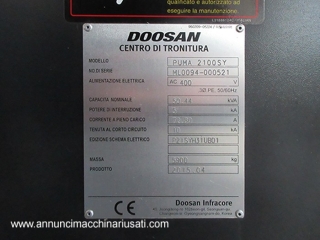

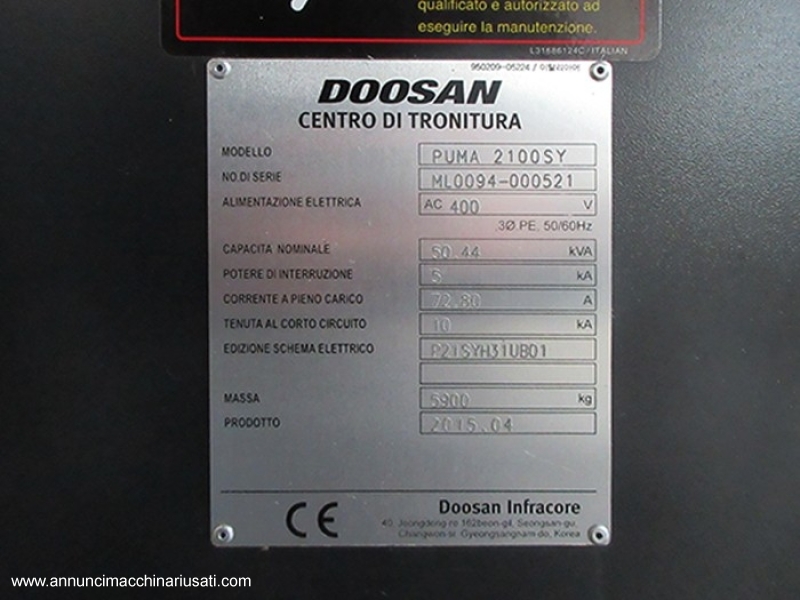

Regarding safety, it is important to comply with current regulations. If the machine does not have CE conformity indications, it will be necessary to make the necessary modifications to adapt it to the required safety and functionality standards.

Sectors of Use and Advantages of Purchasing Used

The Doosan Puma 2100SY/F0iTD CNC Lathe is perfect for a wide range of industries, including:

• Mechanical Engineering
• Automotive sector
• Production of industrial components

Buying a used lathe like the Doosan Puma 2100SY/F0iTD represents a unique opportunity. Not only do you have access to a high-quality machine at a lower price than new, but you also get equipment that, if well maintained, can provide years of reliable service.

Conclusion

In summary, the Doosan Mod. Puma 2100SY/F0iTD CNC Lathe is a robust and versatile machine, ideal for those seeking efficiency and quality in mechanical processing. Thanks to its superior features and reliability, it is an investment you cannot miss. Please do not hesitate to contact us for further information or to arrange a visit to the car!
