Timken H247549-99401 Bearing Detailed Data Sheet

Introduction

The Timken H247549-99401 Bearing is a single row tapered roller bearing, designed for applications requiring high strength and precision. Timken, a global leader in bearings and power transmission solutions, designed this model to deliver excellent performance in demanding industrial environments. In this data sheet, we will explore the technical features, materials and applications of this bearing in detail.

Composition and Materials

Make and Model: Timken H247549-99401 (also known as H247549/H247510)

Materials:

• Tapered Rollers: Made of high strength alloy steel, designed to handle radial and axial loads.
• Inner and Outer Rings: Constructed from alloy steel, heat treated to increase hardness and durability.
• Cage: Typically made of steel or synthetic material, designed to hold the rollers in place and reduce friction.

Construction:

• Tapered Roller Bearing: Single row, allows to support both radial and axial loads, making it suitable for applications that require combined management of these loads.

Measurements and Mechanical Characteristics

Measures:

• Internal Diameter (d): 234.95 mm (9.25 inches)
• External Diameter (D): 384.18 mm (15.125 inches)
• Width (B): 112.71 mm (4.4375 inches)
• Weight: 49.7kg

Mechanical Characteristics:

• Bore: Tapered, designed to fit shafts and housings with a specific contact angle, useful for combined loads.
• Bearing Type: Single row tapered roller, designed to handle radial and axial loads simultaneously.
• Load Capacity: High load capacity, suitable for industrial and heavy-duty applications.
• Precision: High manufacturing precision to reduce wear and improve operational life.

Mathematical Formulas for Characteristics

To evaluate the performance and characteristics of the bearing, the following formulas are used:

• Radial Load Capacity (C): C=Fr⋅d2C = \frac{F_r \cdot d}{2} $C$ $=$ 2 F r ​⋅ d ​Where FrF_r $F$ r ​is dd $d$ is the diameter of the bearing.

• Axial Load Capacity (Fa): Fa=Ca⋅d2Fa = \frac{C_a \cdot d}{2} $F$ $a$ $=$ 2 C a ​⋅ d ​Where CaC_a $C$ a ​is dd $d$ is the diameter of the bearing.

• Working Speed ​​(n): n=1000⋅Vπ⋅dn = \frac{1000 \cdot V}{\pi \cdot d} $n$ $=$ π ⋅ d 1000 ⋅ V ​Where VV $V$ is the linear speed (m/s ) and dd $d$ is the bearing diameter.

Sectors of Use

The Timken H247549-99401 bearing is suitable for a wide range of industrial applications, including:

• Mining: Used in heavy machinery that operates in harsh conditions and requires robust load capacity.
• Energy Industry: Used in turbines and generators, where it is necessary to manage combined radial and axial loads.
• Cement and Construction Industry: Suitable for equipment and machinery operating under high loads and harsh environmental conditions.

Enhancement of Technical Data

The Timken H247549-99401 bearing offers:

• High Load Capacity: The tapered roller configuration allows it to handle high radial and axial loads, making it ideal for heavy industrial applications.
• Robustness and Durability: Built with high quality materials and designed to operate in harsh working conditions.
• Versatility: Suitable for a variety of applications requiring combined load handling.

Description of the Manufacturer

Timken:

Timken is a leading global manufacturer of bearings and power transmission solutions. Founded in 1899, Timken is known for its continuous innovation and the high quality of its products. The company offers a wide range of bearings and components for industrial, automotive and commercial applications, with a strong commitment to research and development to improve the performance and reliability of its products.

Advantages of Purchasing Ready to Ship in Stock

Purchasing the Timken H247549-99401 bearing ready for delivery in stock offers numerous advantages:

• Immediate Availability: Reduces downtime and allows rapid replacement of faulty components.
• Competitively Priced: Stock bearings are often more competitively priced than bespoke orders.
• Less Production Disruption: Ensures operations continue without delays caused by missing essential components.

In conclusion, the Timken H247549-99401 bearing is an excellent choice for those looking for a robust and reliable component for heavy industrial applications. Timken brand quality combined with off-the-shelf availability offers significant value for industrial operations.

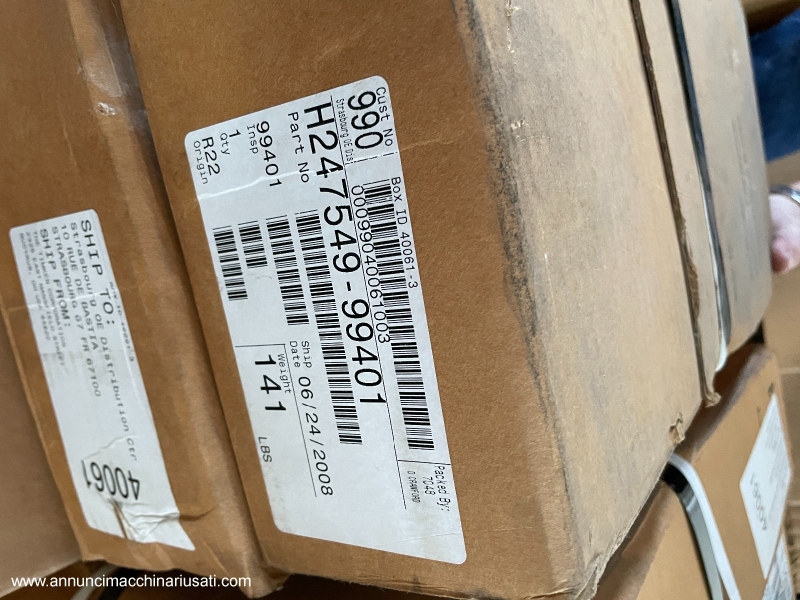

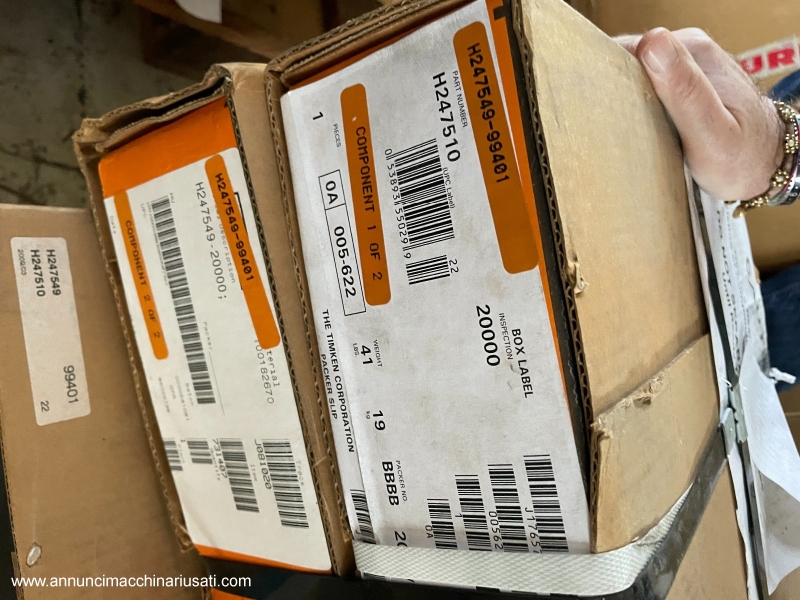

FOR SALE TIMKEN H247549/H247510 ALSO KNOWN AS H247549-99401 PRICE 3507 EURO
