TYPE OF MACHINERY:

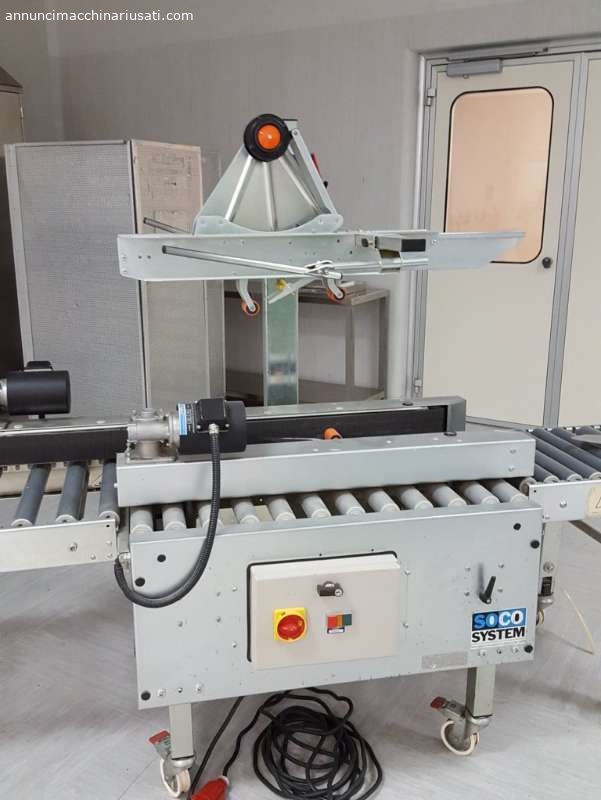

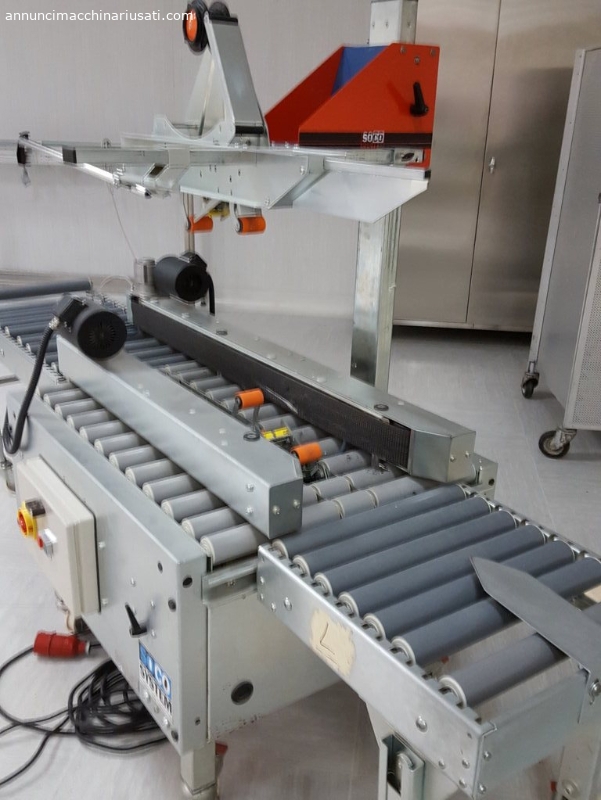

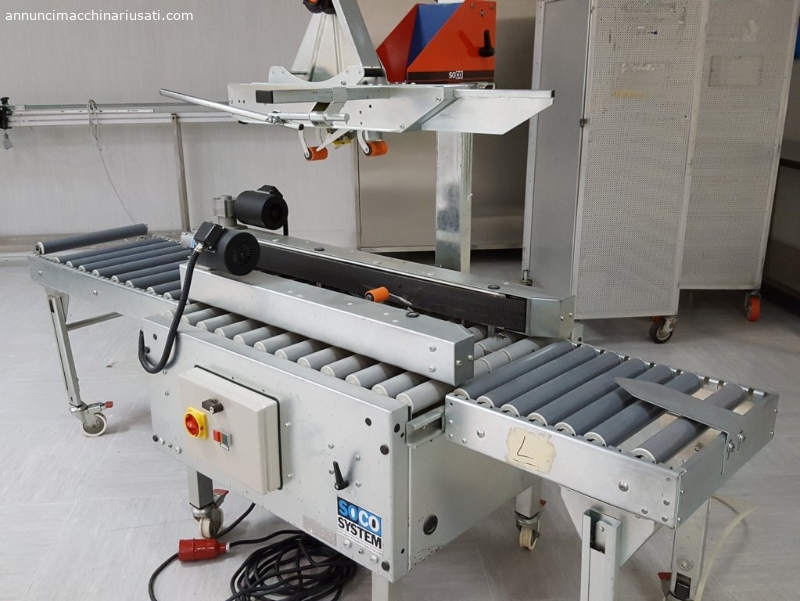

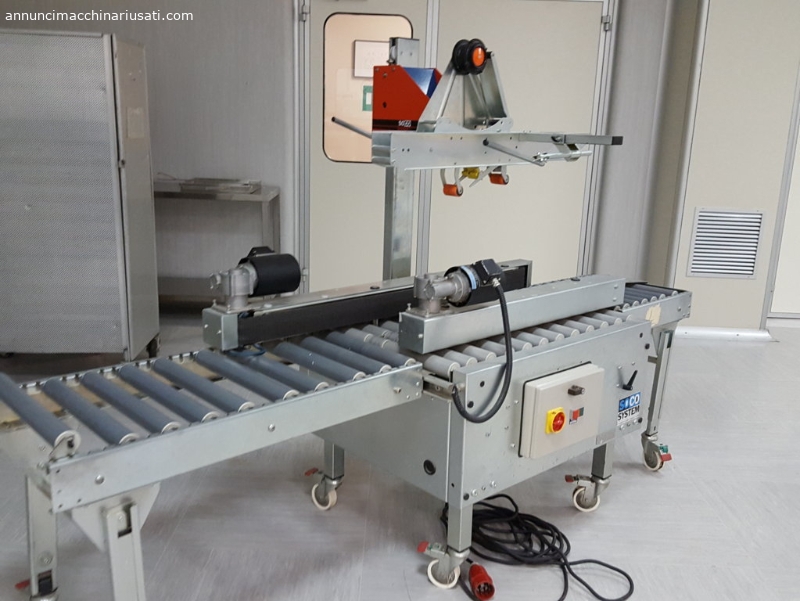

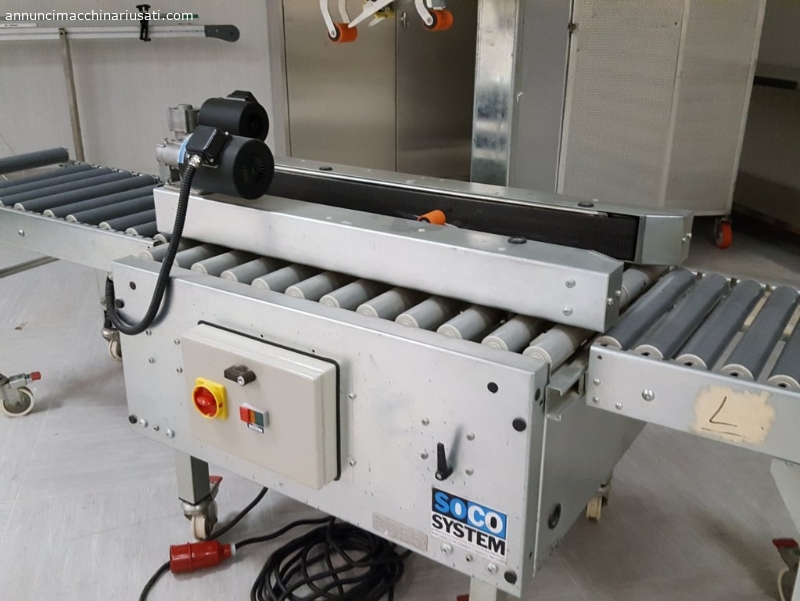

Semi-automatic taping machine for end of packaging line.

SECTOR OF USE:
Pharmaceutical, chemical, cosmetic, food, dietary, medical devices, manufacturing.

PECULIARITY:
The operator takes a box and after having only folded the lower flaps, places it on a roller table;

Once filled, he folds the upper flaps and pushes the box into the taping machine. The machine simultaneously tapes above and below the box. Quick and easy format change for both width and height. Transport of boxes via lateral motorized arms. Built-in taping units for adhesive tapes with a width of approximately 50 mm and with a closing overlap of approximately 70 mm. N.2 units available.
Year: 1989

TECHNICAL SPECIFICATIONS
Frequency Hz 50
Voltage Volt 380
Dimensions mm 1400 x 1100 x 1600
Weight kg 120
Roller width mm 300
Working height max./min.
mm 720 – 620 Max capacity boxes/min 30
Max. belt diam. 385 mm
