TYPE OF MACHINE:

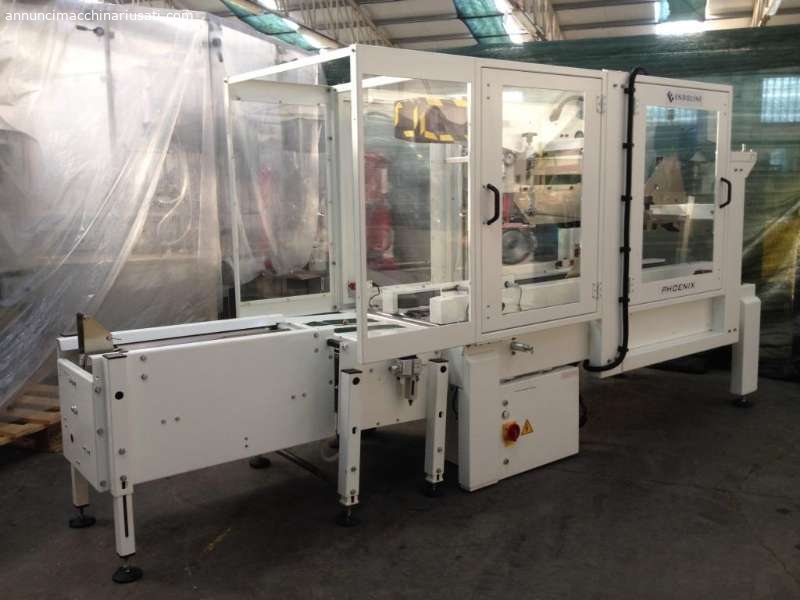

Semi-automatic case packer, folds the minor and major lower flaps of the box and keeps the open box in an upright position to make the filling phase easier for the operator while having both hands free.

The unit can operate with a horizontal or inclined plane depending on the products being packaged, the latter is more suitable for products such as bags or bottles. The machine incorporates a section with an electrically driven horizontal belt conveyor which transports the boxes to the machine which seals after folding the top flaps with adhesive tape (top and bottom). SECTOR OF USE:
Pharmaceutical, chemical, cosmetic, food, dietary, medical devices, manufacturing.

CHARACTERISTICS:

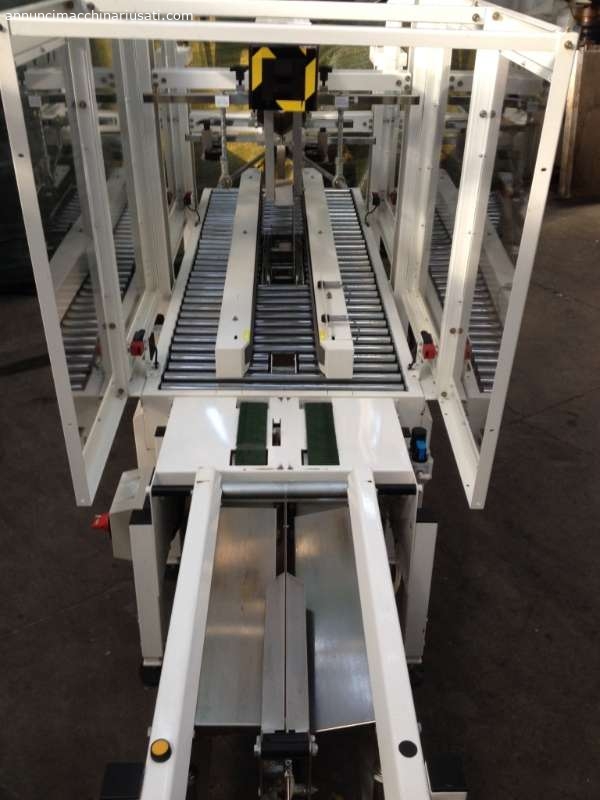

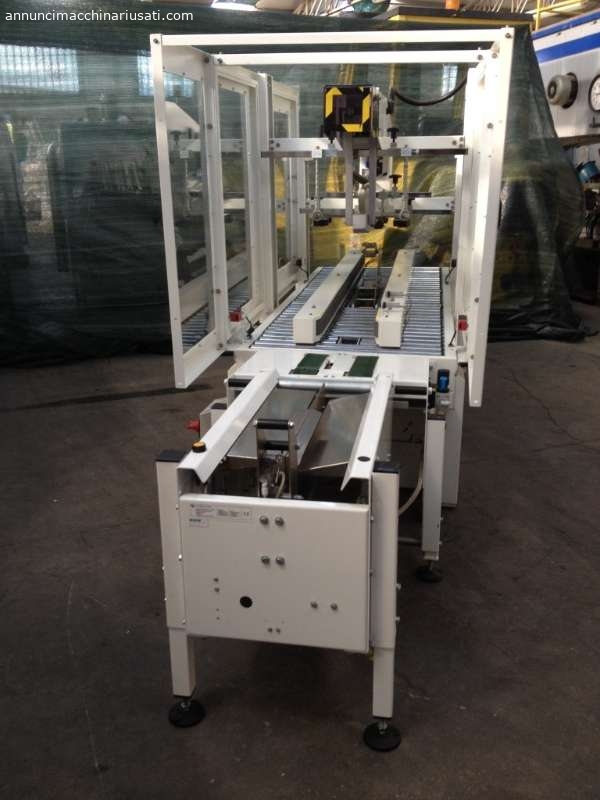

Front station: Endoline case packer Mod. 121
Inclination setting: variable, but at approximately 15 degrees from the horizontal plane
Conveyor belt: 450 x 850 mm, Weight: Approximately 100kg
According to CE standards, Material: Powder coated steel (RAL9010)

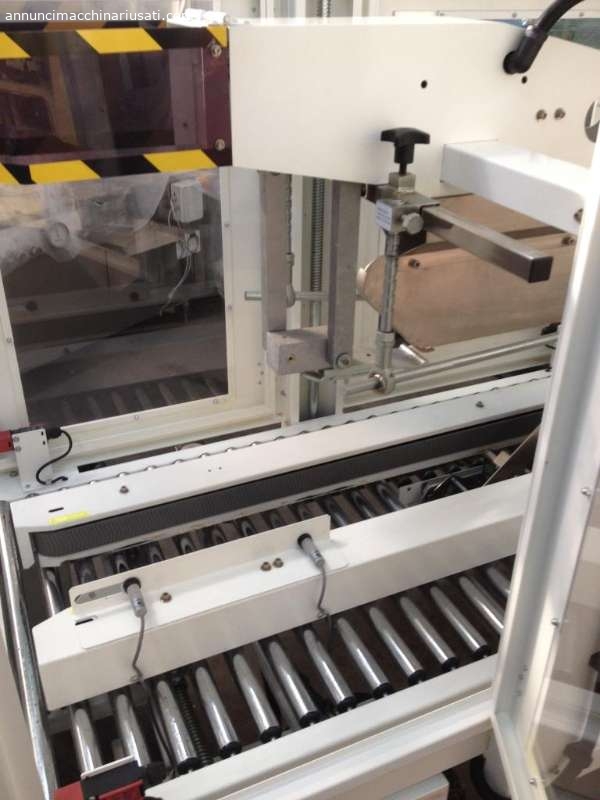

Second station: Endoline Phoenix taping machine Mod: P6FPT
The upper and side part has protections and doors with hinges
The cut is approximately 55 mm front and rear.

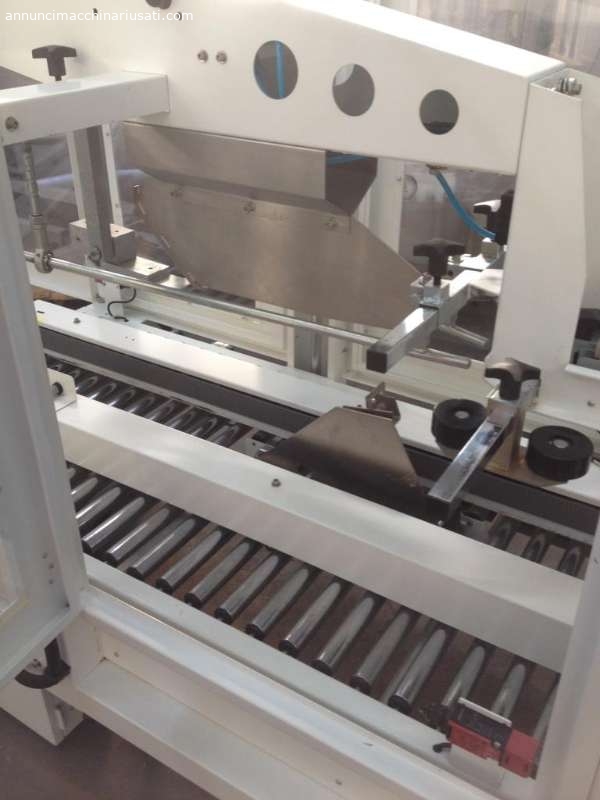

Tape applicator Mod. TU5055
According to CE standards, Material: Powder coated steel (RAL9010)

Year of construction: 2008

TECHNICAL SPECIFICATIONS
Length 3150 mm
Width 900 mm
Height 1600 mm
Net weight 900 Kg
Electrical frequency Hz 50
Operating voltage 415 Volts
Phases 3
Compressed air bar 5.5
Min. dim. of packing machine boxes 200 x 125 mm Max

. dim. of packing machine boxes
600 x 250 mm Min. dim. of taping machine boxes 120 x 100 x 110 mm Max. dim. of taping machine boxes 610 x 500 x 500 mm
Max. diam.
belt 300 mm Belt width 38-50 mm
Feed speed 25 cartons / min
