TYPE OF MACHINERY:

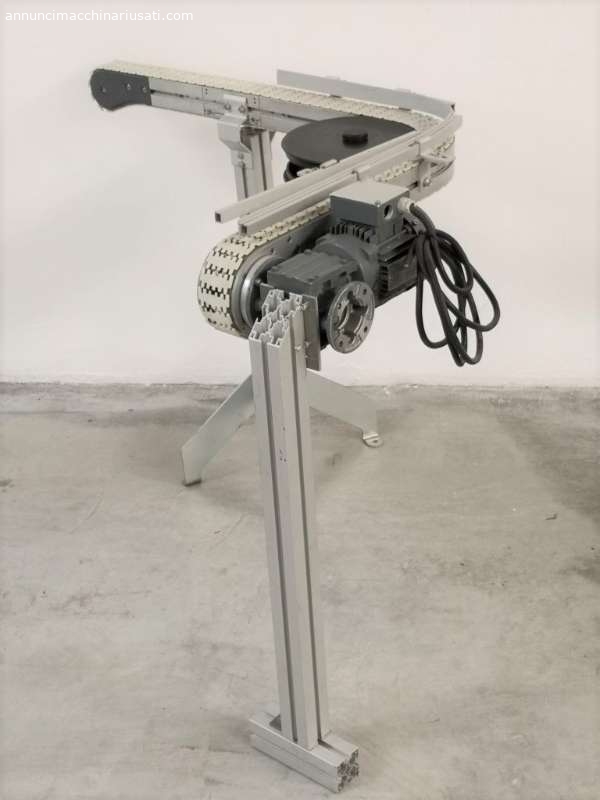

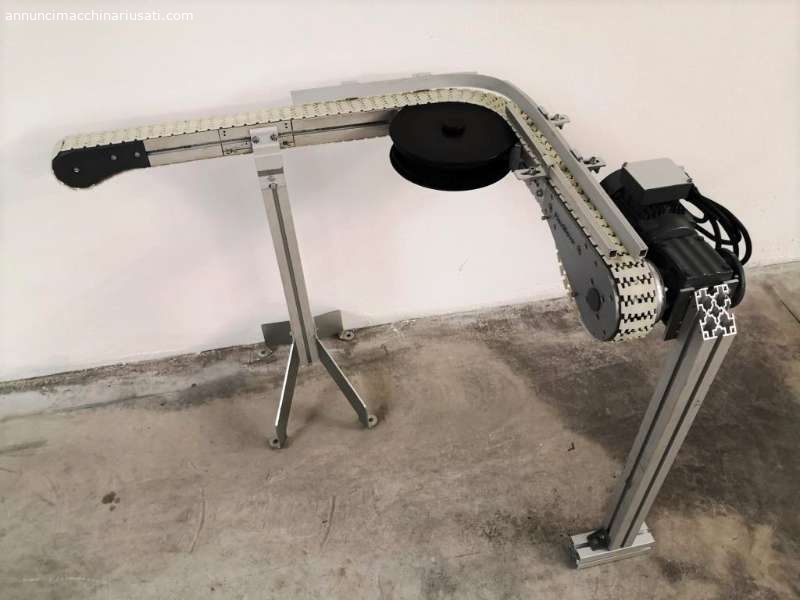

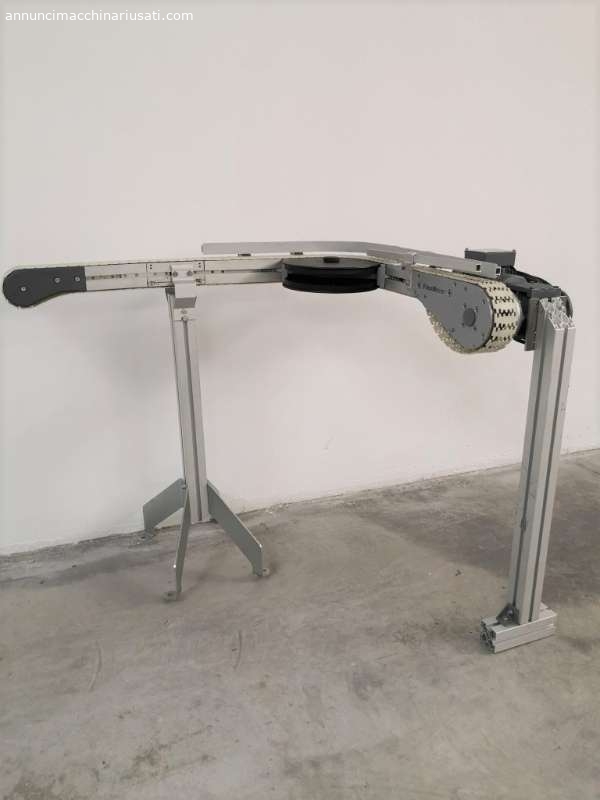

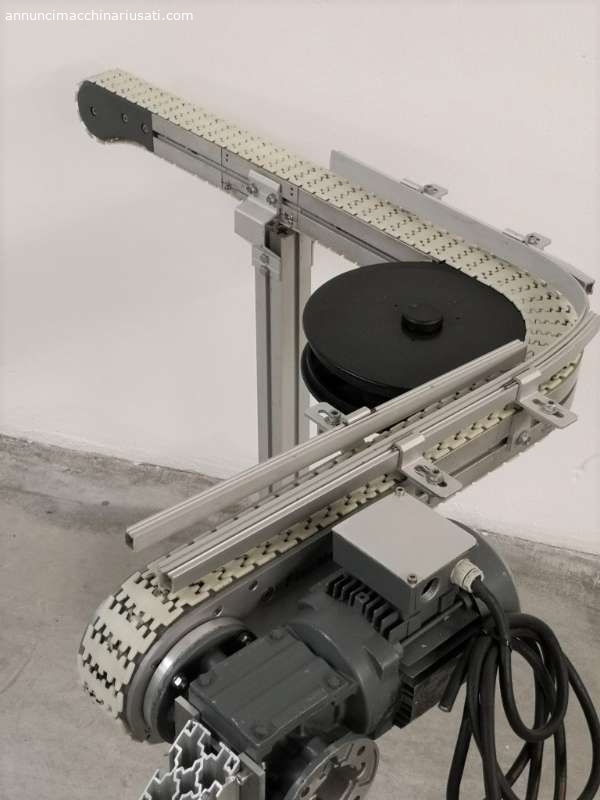

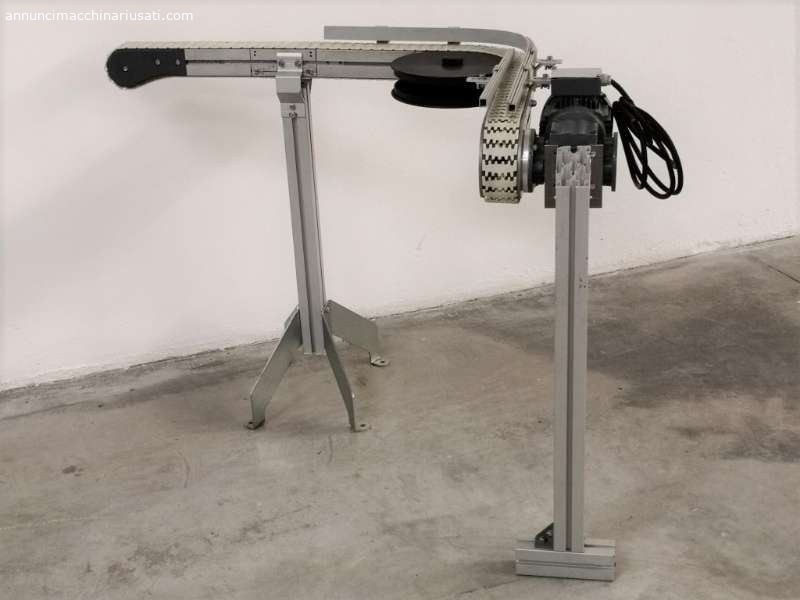

Motorized 90° curved stainless steel slat conveyor belt, by Flex Move brand.

SECTOR OF USE:
Pharmaceutical, chemical, cosmetic, food, dietary, medical devices, manufacturing.

PECULIARITY:
The conveyor belt guarantees the transfer with constant continuity over time of the material or materials loaded in its upper part.

The belt receives and contains the transported material and at the same time transmits the force necessary for the movement of the load. At the ends this belt wraps around drums, thus creating an endless closed ring which allows the material to be transported continuously without stopping. This stainless steel conveyor belt with a 90° bend at the end is equipped with a plastic belt, with side walls designed to contain the transported material. Equipped with an electric motor for movement, from the Sew Usocome brand. TECHNICAL SPECIFICATIONS
Overall dimensions mm 1000×750
Belt width mm 80
Power kW 0.25
Frequency Hz 50
Voltage Volt 230/400
