BOSSPAK-ZALKIN

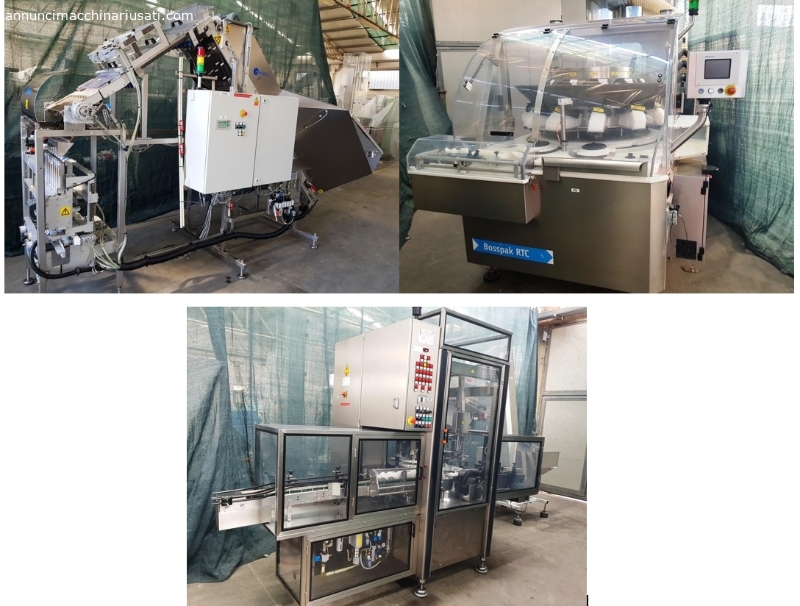

TABLET FILLING LINE (CODE MF-PK-LIN-19)

TYPE OF MACHINE:
The MEDIPAC MTF8 is a feeder orientation with a thousand merits, which offers maximum quality in every possible application.

Maximum efficiency is accompanied by a number of other advantages not to be forgotten, such as high speed, flexibility, ease of use and safety. BOSSPAK RTC200 automatic filling counter can put capsules and tablets into bottles, can adapt to different sizes.

Highly flexible and designed with modular construction, these machines are well known for their robustness and reliability. The technological solutions adopted, the quality of the materials and the simplicity of use are the elements that guarantee the great operational reliability of this machine. The automatic capping machine for plastic or glass containers ZALKIN CA5 300 NG, currently set for plastic tubes used especially in the cosmetics industry.

To guarantee maximum safety and quality, as with all Zalkin machines, it is also made exclusively with first choice materials and equipped with all the necessary accident prevention protections. The electrical panel is made according to the relevant CE standards. SECTOR OF USE:
Pharmaceutical, chemical, cosmetic, food, dietary, medical devices, manufacturing.

CHARACTERISTICS:

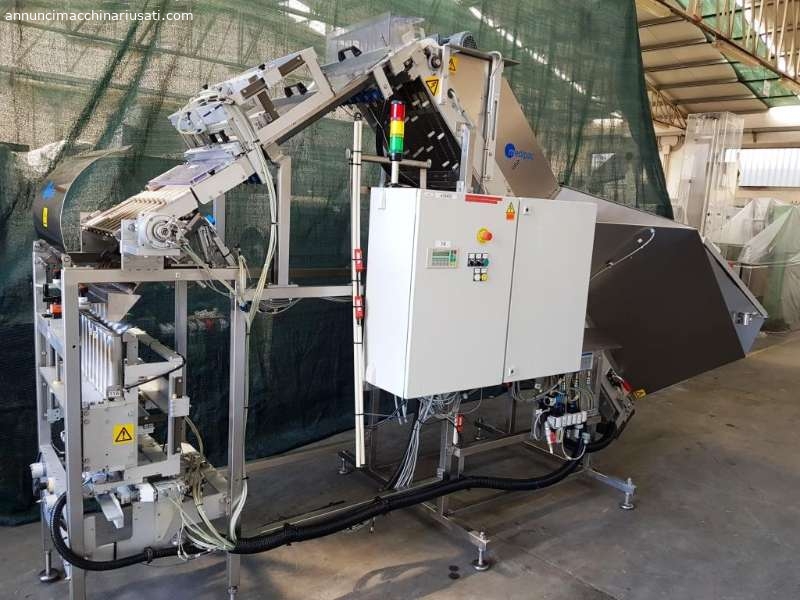

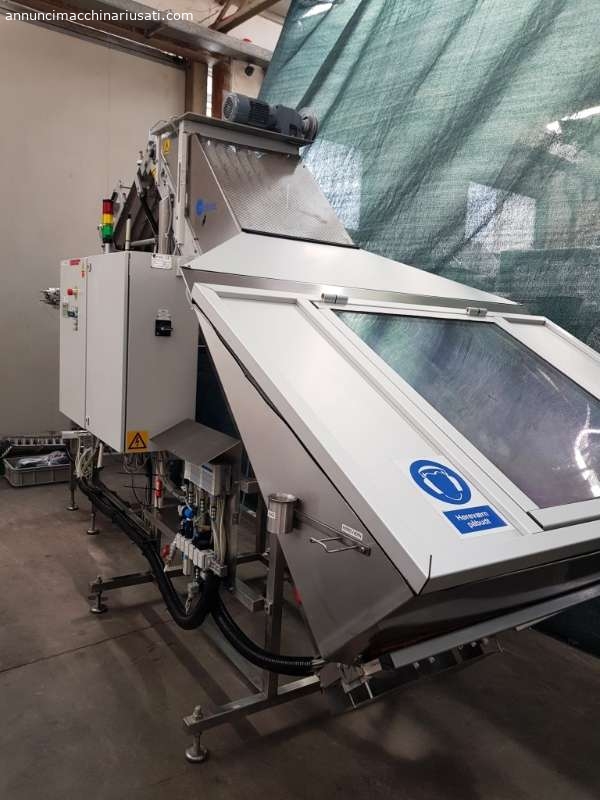

MEDIPAC MTF8 – Plexiglass protective casing.

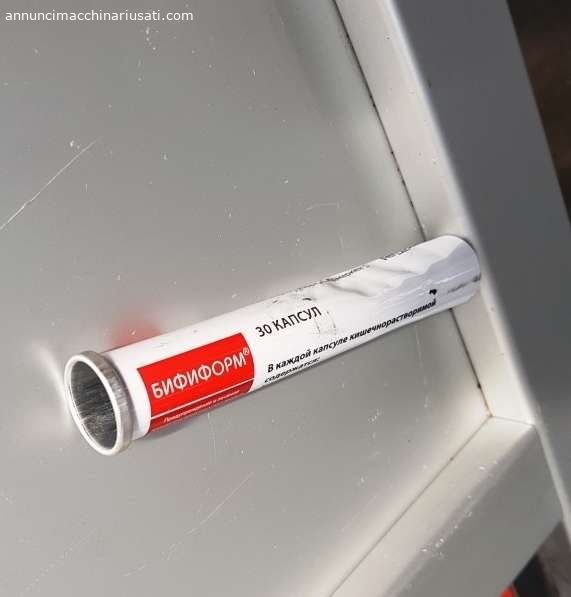

Stainless steel construction. Robust mechanical structure entirely built in stainless steel, therefore suitable for absorbing all the typical and common "stresses" in these contexts. The products are rearranged at the entrance and then oriented through selector cells which welcome them and orient them correctly. The unit worked with aluminum tubes, bottles and containers. Year: 2006

The BOSSPAK RTC200 rotary filling counting machine represents a new generation of electronic tablet counting.
The continuous motion rotary design offers advantageous container handling for counting and filling tablets or capsules. This is facilitated by transferring the containers from the conveyor onto a central bottle star wheel located beneath a rotating counting turret. Sorting of tablets or capsules is done via 12 rotating discs mounted inside the main turret hopper. An optical matrix counter or 'quad' counting has been specifically designed for this application and represents a new generation in counting technology. The count can detect most broken or chipped tablets or capsules. A complete integrated dust extraction system ensures maximum dust removal before counting. Vibration free flow filling ensures products fall into bottles one by one. Separation of capsules and tablets before counting them. Year: 2006

ZALKIN CA5 300 NG capping machine is designed with easy operation process. Gentle processing of bottles and closure components. Once the caps have been placed on the containers, they are conveyed to the capping station where they are sealed using a rotating sealing head. The closed containers are then transferred to the exit conveyor belt. Ease of use, quick format change and compact design characterize the machine
