Machine Details
BRAND: Casolin
MODEL: Astra 400, CE
CONDITIONS: New
AVAILABILITY: Immediate
Technical characteristics

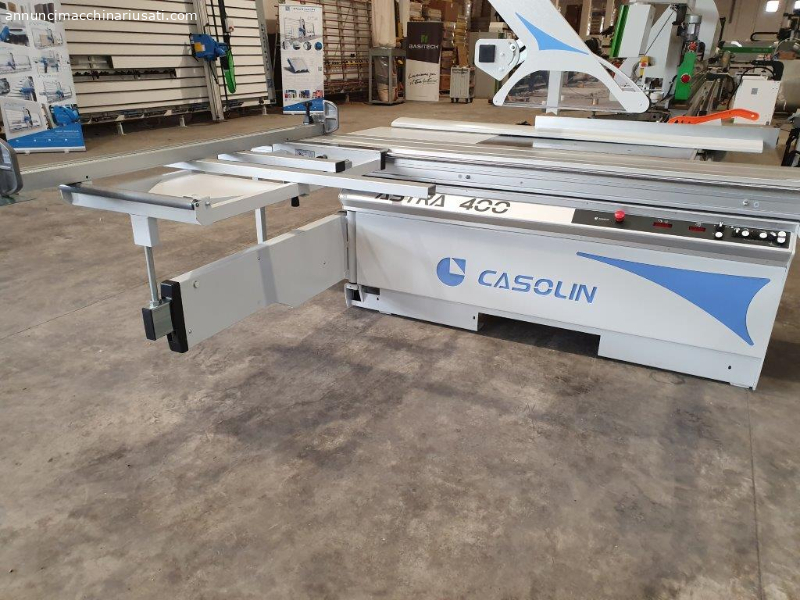

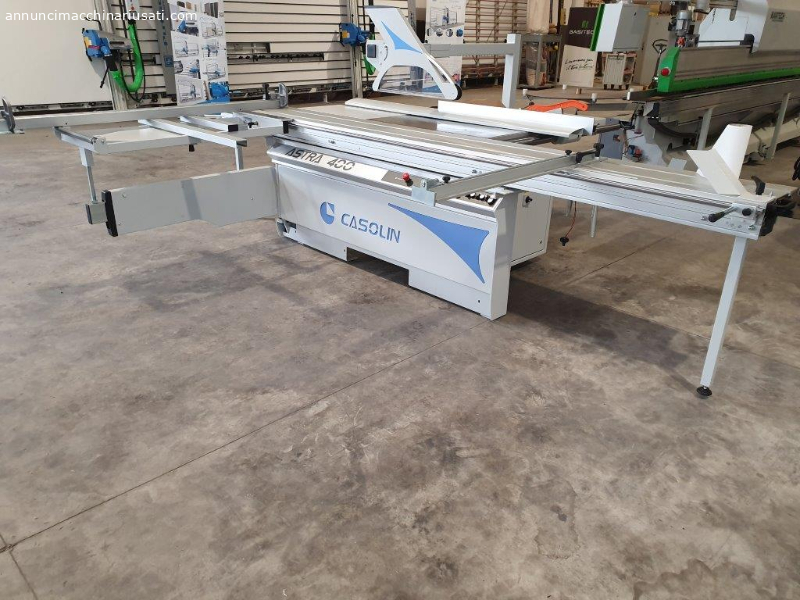

Tilting blade squaring machine
Electric blade lifting Electric blade
inclination
Electronic digital inclination viewer from 0° to 45.5°
Tilting blade assembly 0 -45.5° completely made of cast iron and very deep for optimal
sawdust extraction.
Sliding on linear guides and recirculating ball slides, large
and specific for dusty places
Lifting and angulation electric motors completely sealed, lubricated for life and maintenance-free

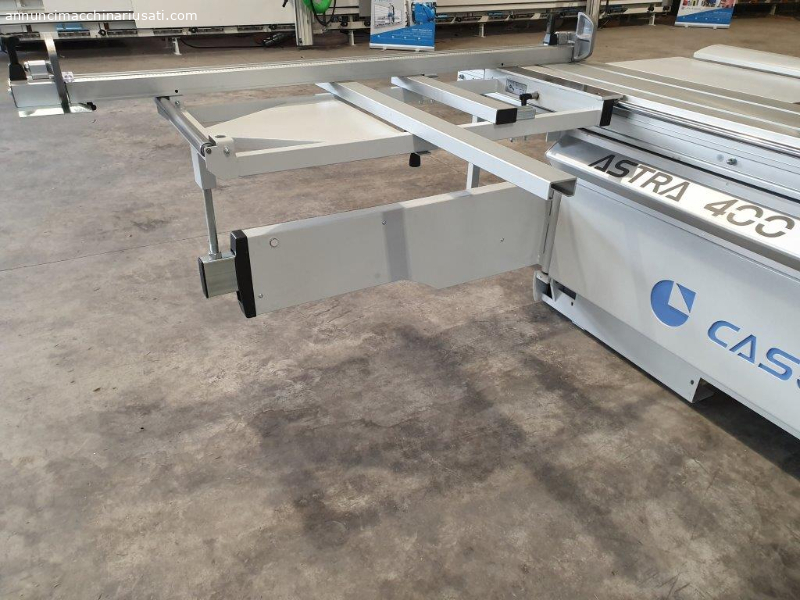

Aluminum roller carriage 3800 mm long with tempered steel guides
Star-delta start-up

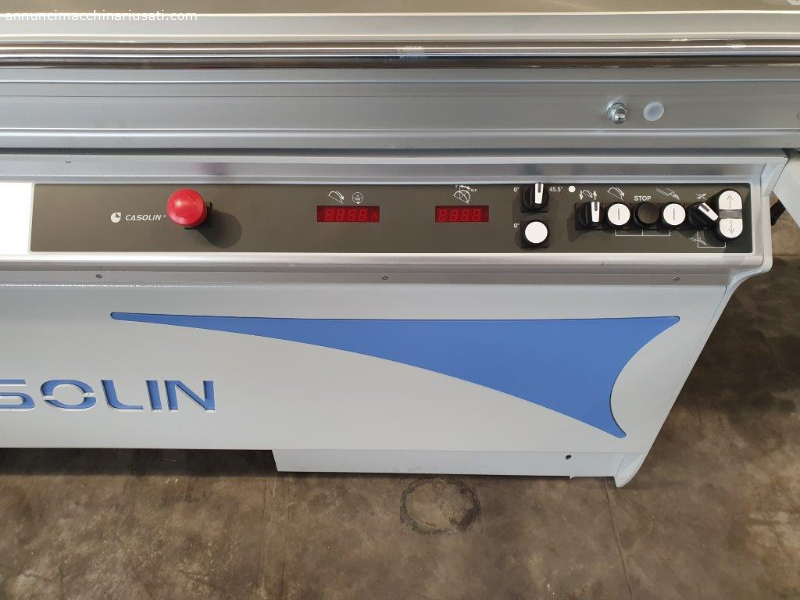

Button emergency
Adjuster for inclined cuts
Cutting height with blade Ø 400 mm 0-125
Cutting height with blade Ø 400 inclined 45 ° mm 0-86
Blade holder shaft diameter mm 30
Saw blade rotation speed g/min 3200-4000- 5000
Articulated parallelogram blade protection

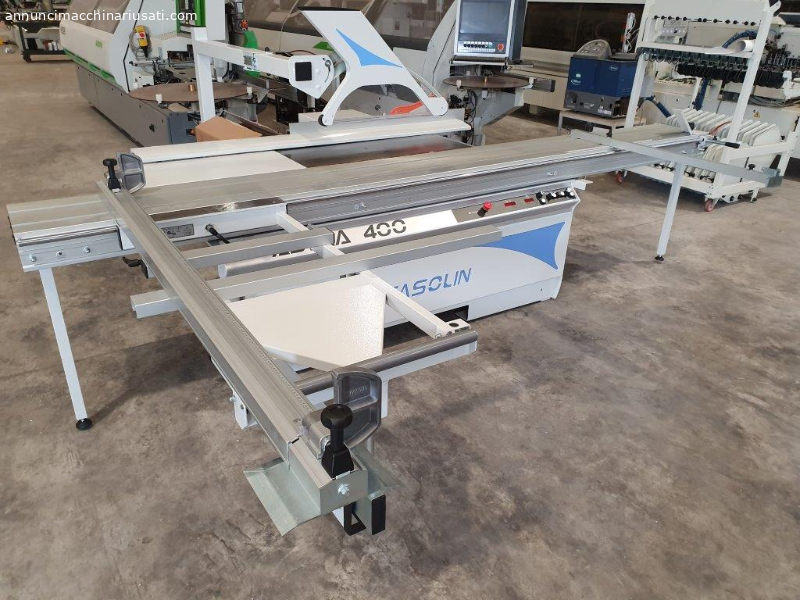

Useful opening of the parallel square 1100 mm
Manual movement of the parallel square Carriage
width 360 mm
Blade motor Kw 7.5 Hp 10 self-braking


OPTIONAL:
Scoring unit with separate motor
Diameter of the scoring blade mm 120
Diameter of the scoring shaft mm 20
Engraver rotation speed g/1′ 8000
