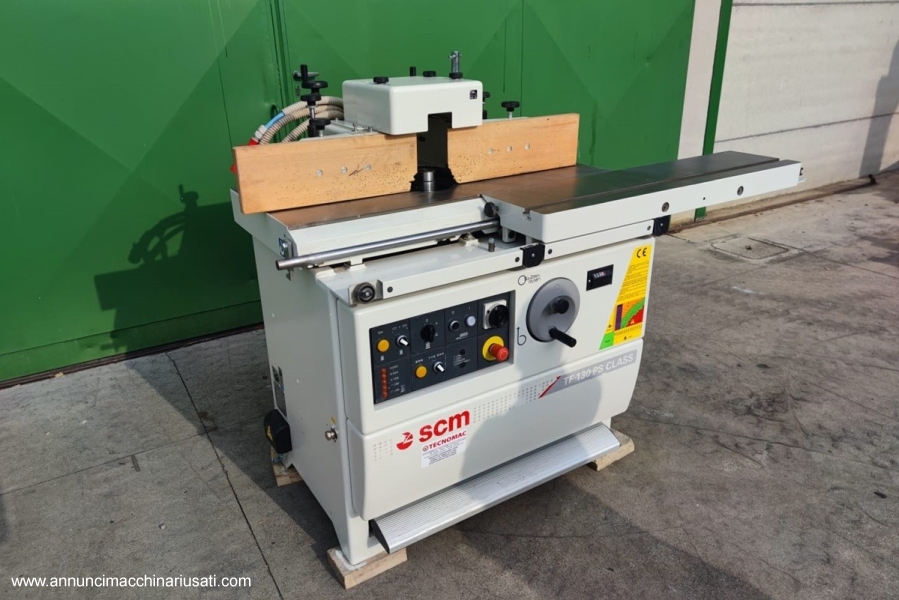

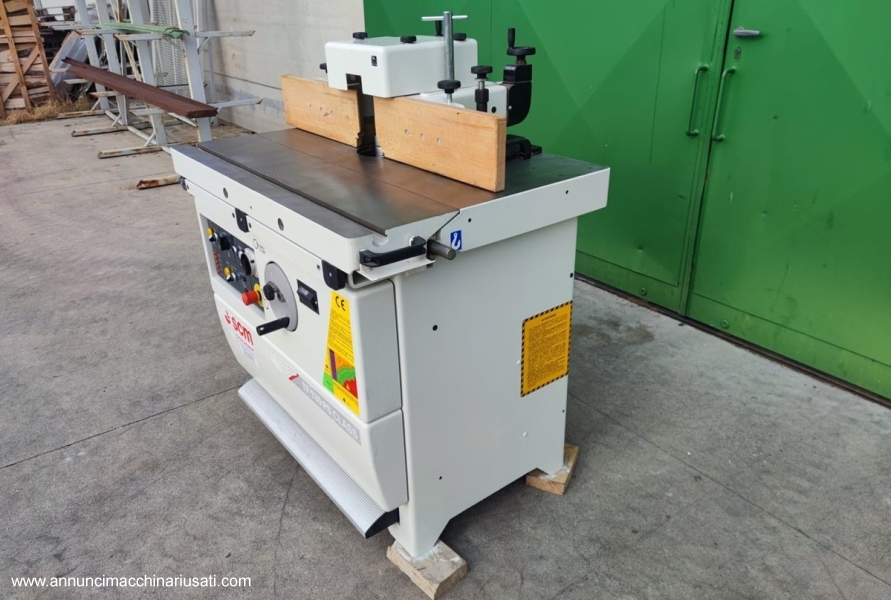

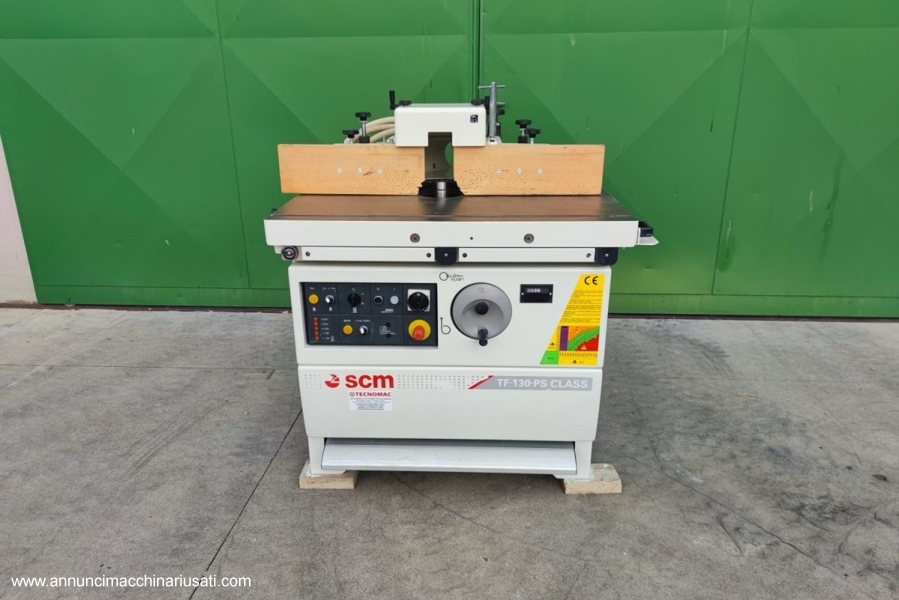

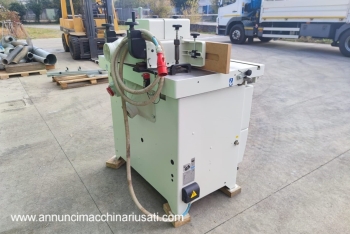

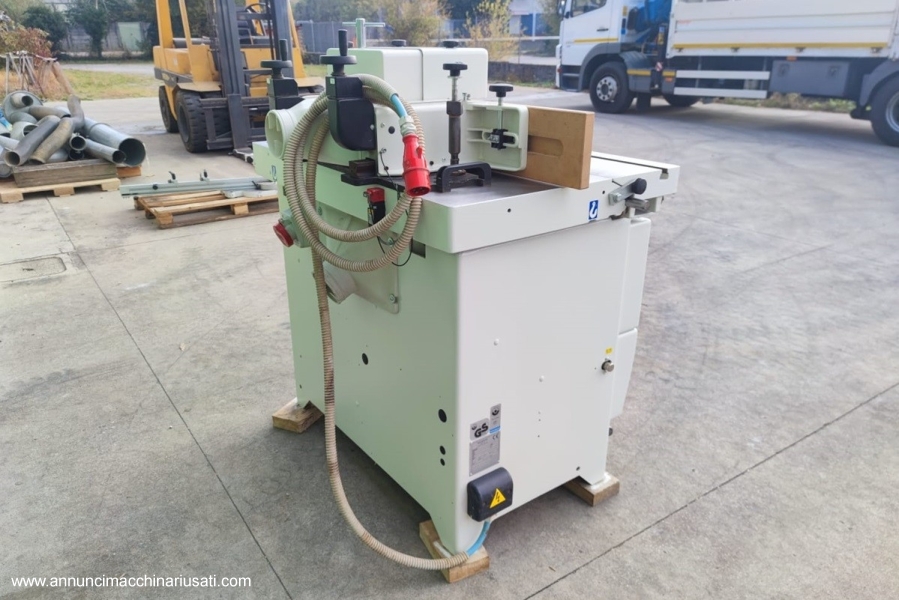

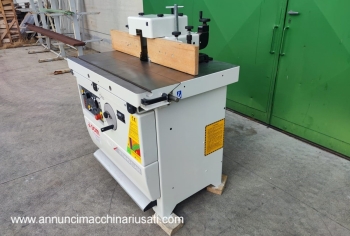

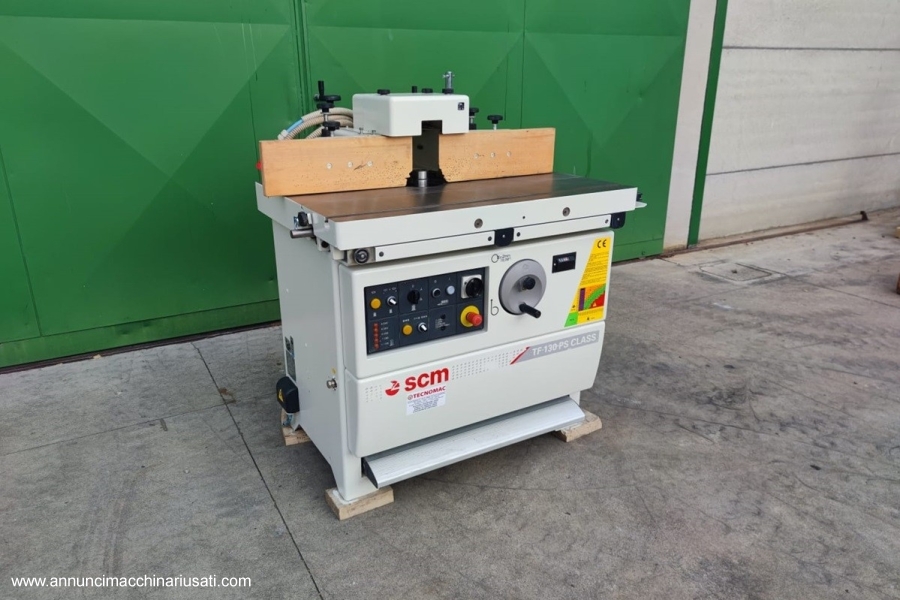

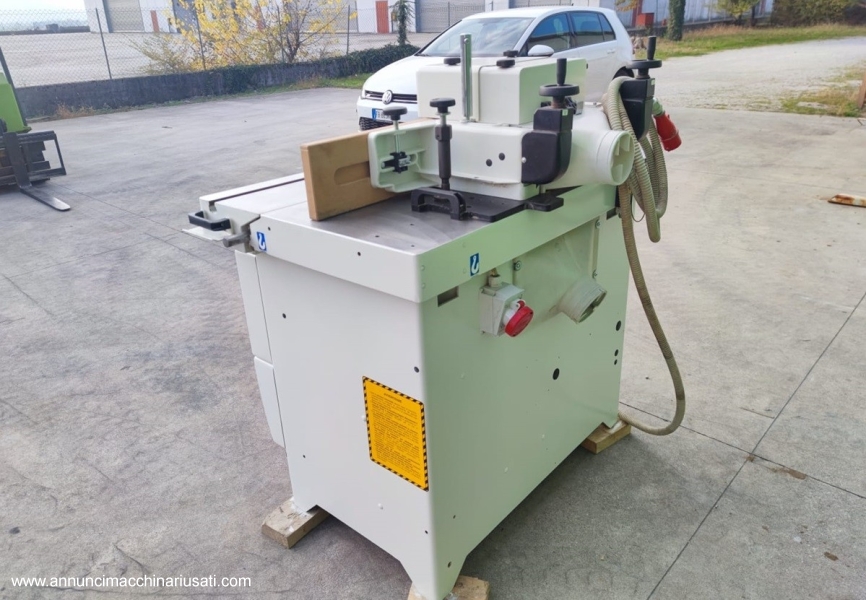

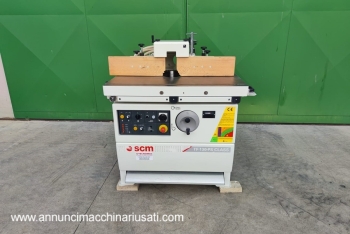

The SCM CLASS TF 130PS spindle moulder (code TOU-046) is a high quality used machine designed for woodworking, ideal for artisan workshops and industries. This model is renowned for its robustness and precision, representing an excellent choice for those seeking reliability and versatility. It is equipped with a powerful 5.5 kW , ensuring excellent performance even in the most demanding jobs. Below is a detailed description of its features:

Main technical features:

• Worktop: dimensions of 1200 x 730 mm, ideal for large workpieces.
• Chuck: Standard diameter of 35mm, with clamping length of 140mm. The chuck can rotate clockwise and counterclockwise, expanding the possibilities of use.
• Rotation speed: adjustable in five levels (3000/4500/6000/7000/10,000 rpm), to adapt to different applications.
• Motor power: 5.5 kW (approximately 7.5 HP), powered by 380 V / 50 Hz .
• CE certification: compliance with European safety regulations.

Standard equipment:

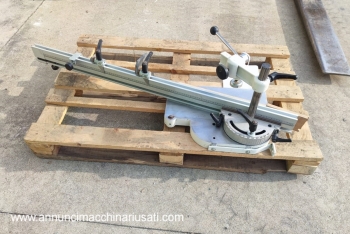

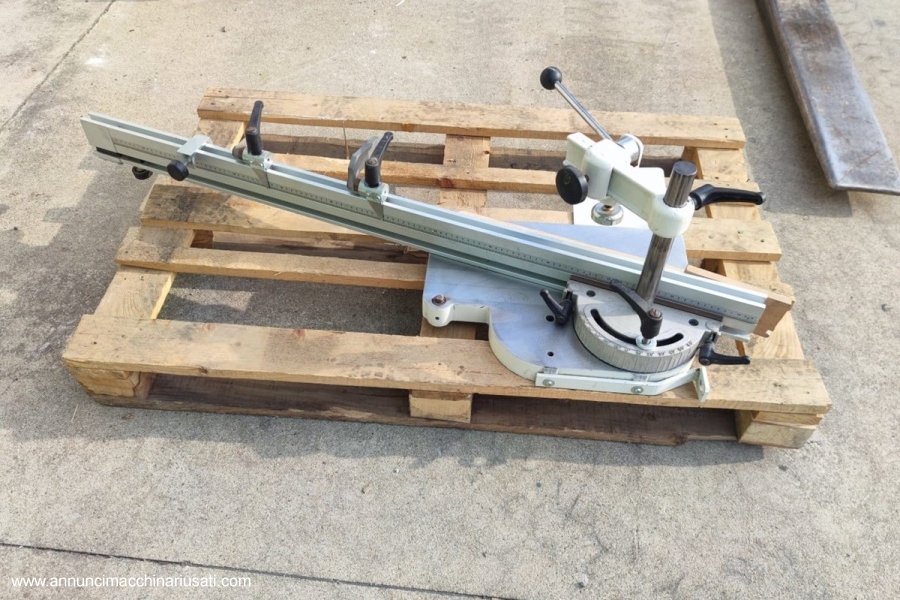

• Front carriage for precise guidance of the workpiece.
• Moulder guide with manual adjustment for exact positioning of the piece.
• Robust structure and ergonomic design for comfortable and safe use.

Optional Components:

• SCM Flex guide with mechanical adjustment.
• Interchangeable spindle for specific processes such as tenoning or grooving.
• Aluminum stop jaws for firm locking.

Applications and usage:

The SCM CLASS TF 130PS is ideal for wood milling, shaping and profiling operations. Workable materials include solid wood, particle board, MDF and other composite materials. Thanks to its versatile spindle and multiple speeds, it can adapt to numerous types of tools and processes.

Maintenance:

• Clean the spindle surfaces and housings regularly to ensure smooth rotation.
• Periodically check the integrity of the belts and bearings to avoid excessive wear.
• Lubricate the mechanisms according to the instructions in the manual.

Sectors of use:

This moulder is widely used in carpentry workshops, furniture and window manufacturing, as well as in the woodworking industry for creating decorative or functional details.

Why choose it used:

Buying a used machine like the SCM CLASS TF 130PS offers significant economic savings without compromising quality. This model is known for its durability and can be easily remanufactured or adapted to current standards with minimal intervention.

This is a perfect opportunity for those who want to expand their fleet of machines with a professional product at a competitive price. If you are interested, contact us for more details and check the flawless condition of this machine live.
