Skinpass 3 Rolling Mill Used

Brand and Model: Skinpass 3 rolling mill

Visual Presentation: The Skinpass 3 rolling mill presents itself as a robust and well-structured plant, designed to optimize the skinpassing process. Its industrial design is characterized by high-quality steel components, assembled in a functional and accessible layout for maintenance operations. The system is equipped with an intuitive control system, with well-positioned control panels, facilitating operator interaction. The Skinpass 3 rolling mill is a real jewel of technology, ideal for companies looking for efficiency and precision in the processing of steel strips.

Main Technical Data

• Operation Mode: Automatic / Manual
• Lamination Thickness: Minimum 0.6 mm - Maximum 3 mm
• Coil Width: Minimum 1000 mm - Maximum 1500 mm
• Coil External Diameter: Maximum 1600 mm
• Material to Work: Hot rolled steel
• Maximum Yield Strength of the Material: 600 kg/mm²
• Breaking Strength: 1000 N/mm²

Features and Operation

The Skinpass 3 Rolling Mill is a highly specialized plant for the treatment of carbon, stainless steel and austenitic steel strips subjected to recrystallization treatment. Its main purpose is to improve the flatness, roughness and thickness of the strip, making it perfect for subsequent surface processing.

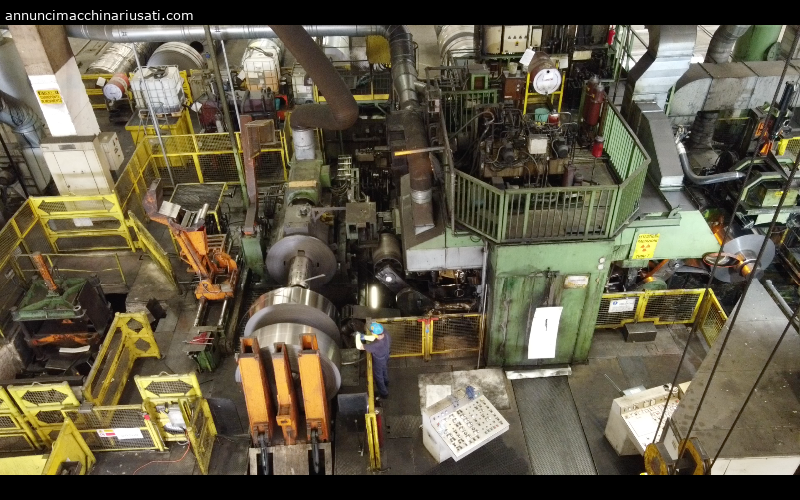

The machine is made up of different sections, each with a specific function:

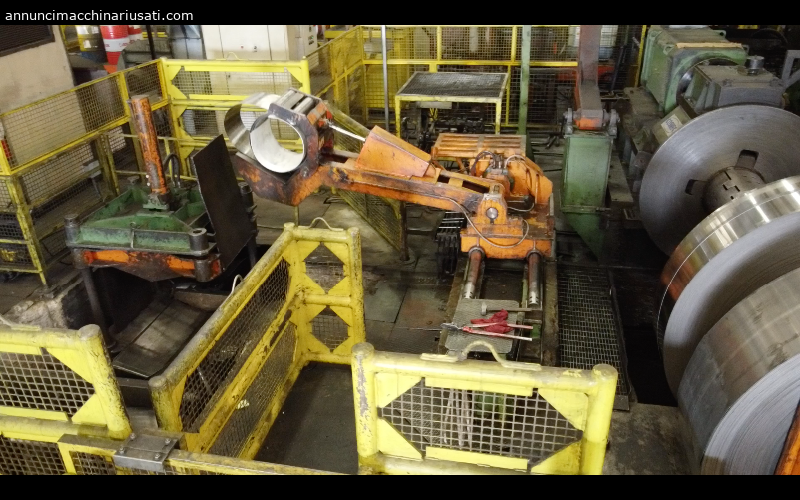

1. Belt Loading Station with Walking Beam:

   • Mobile piston system that accumulates the material during the feeding phase, guaranteeing a continuous cycle and avoiding downtime.

2. Reel Feeding Station:

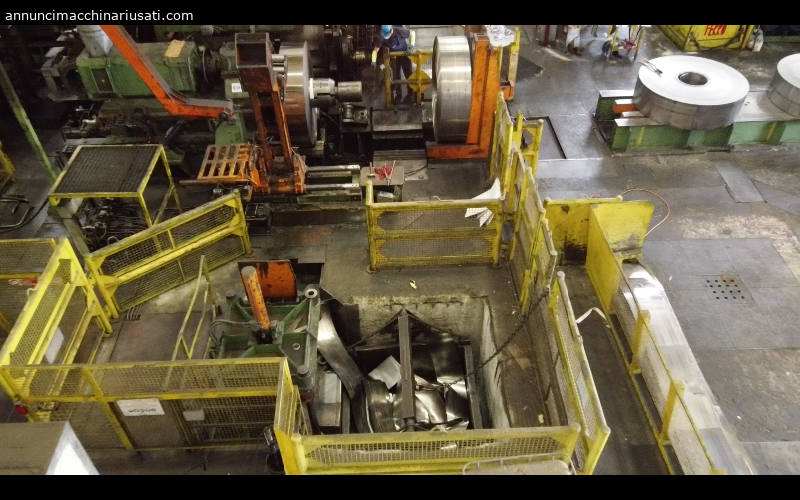

   • Equipped with a waste evacuation and pressing device, it allows you to prepare the strip for the rolling phase.

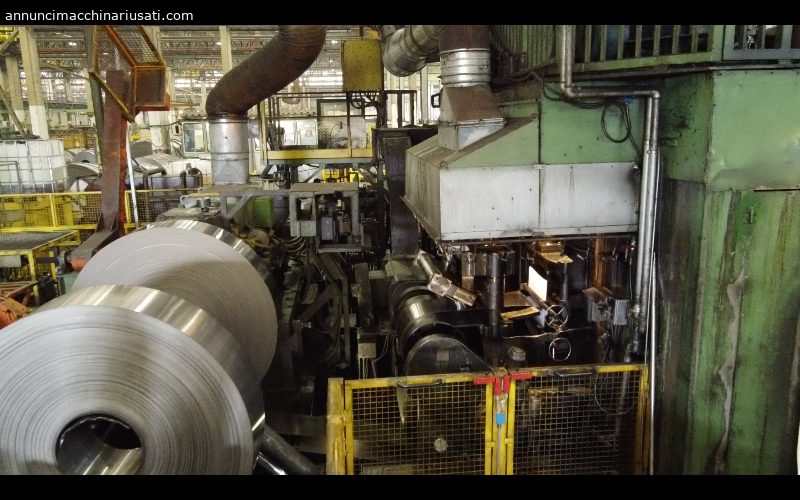

3. Rolling station with “Double Cage”:

   • It includes two pairs of skinpassing cylinders (support and working) which act with light pressure on the belt to lower its yield point.

4. Evacuation Station with Reel Winder:

   • It facilitates the collection of the processed tape and includes an automatic strapping machine to ensure correct packaging.

Usage Procedure

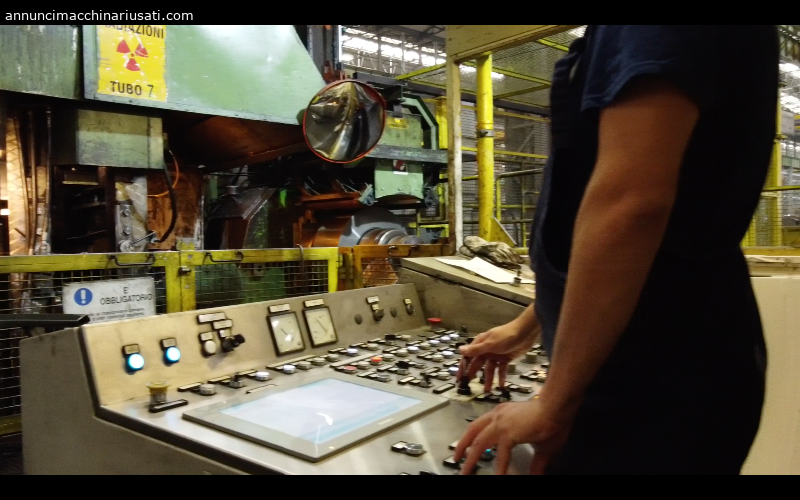

The operation of the Skinpass 3 Rolling Mill is highly automated. Operators can select the desired settings via the control panel. The coil is placed on the loading station, where the piston system facilitates the transfer to the feeding station. After loading onto the unwinding reel, the strip passes through the rolling unit, where the cylinders apply the pressure necessary to obtain the desired specifications. Finally, the tape is rewound on the winding reel, ready for subsequent processing.

Compatible Accessories

The Skinpass 3 rolling mill can be equipped with various accessories, including:

• Flatness control devices
• Voltage monitoring systems
• Strapping machines for wrapping coils
• Inspection and quality control stations.

Optimal Use Parameters

To guarantee the correct functioning of the Skinpass 3 rolling mill, it is essential to consider the following parameters:

• Tape Thickness: Adjust the settings based on the selected thickness (0.6 mm to 3 mm).
• Coil Width: Make sure the coil is within the permitted dimensions (1000 mm - 1500 mm).
• Working Speed: Adjust the speed according to the specifications required by the material.

Workable Materials

The Skinpass 3 Rolling Mill is designed to work with:

• Carbon steel strips
• Stainless steel strips (feritic and austenitic)
• Galvanized strips and semi-produced silicon strips.

Maintenance

To ensure the longevity and good functioning of the Skinpass 3 Rolling Mill, we recommend following these maintenance guidelines:

• Carry out regular checks on the cylinders and the loading station.
• Lubricate the moving components according to the manufacturer's recommendations.
• Clean work areas regularly to prevent debris buildup.

Safety Regulations

Although there are no specific indications on CE conformity, it is important to adapt the machine to current regulations to ensure a safe working environment. This can include:

• Installation of protections on moving components.
• Adequate training for operators on safety when using the machinery.

Evaluation of used cars

To understand if it is a good used one, the following aspects should be considered:

• General conditions of the machine (wear of components).
• Available documentation (manuals, maintenance reports).
• Competitive price compared to the market.

Sectors of Use

The Skinpass 3 rolling mill finds application in various sectors, including:

• Metallurgical industry
• Production of automotive components
• Processing of building materials.

Advantages of Buying Used

Buying a used Skinpass 3 rolling mill can represent an excellent deal, as it allows you to obtain a high quality machine at a significantly reduced price compared to new. Furthermore, used machines have often already proven their reliability and can be adapted to the specific needs of the buyer.

In conclusion, the Skinpass 3 Rolling Mill is an excellent choice for those looking for a reliable and high-performance machine for steel processing. Its versatility, combined with advanced technical features, makes it a safe investment for the future of your production.
