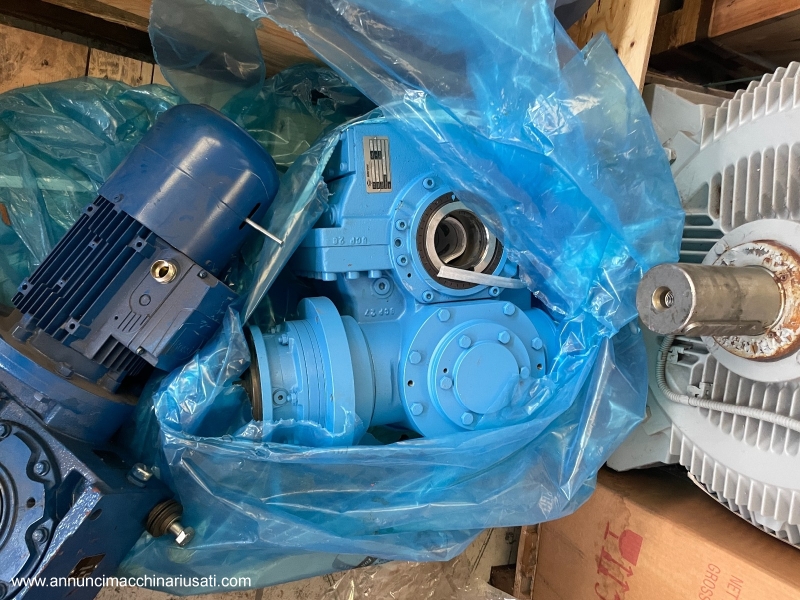

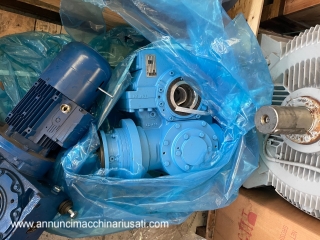

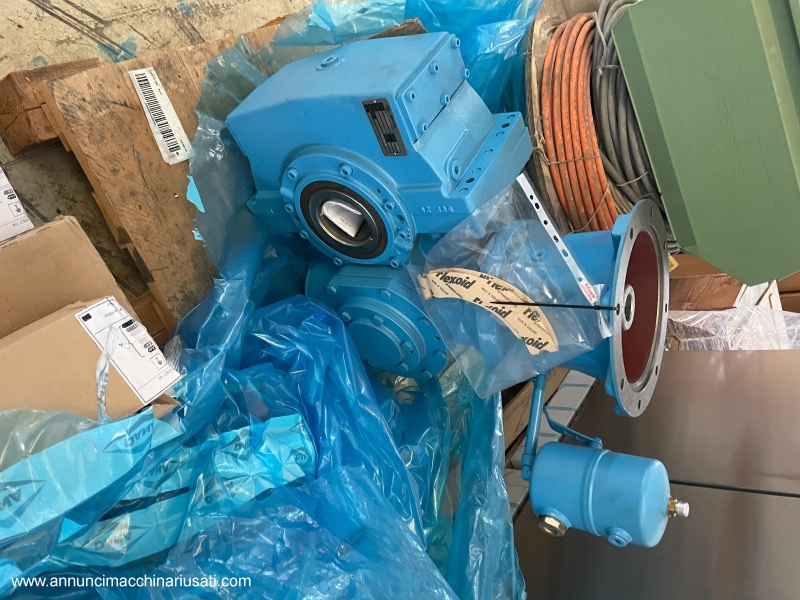

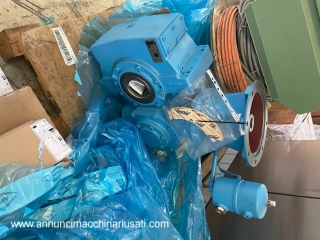

Brevini BPC420K/422.1/IEC132WB8 Screw Reducer (Used)

Brevini BPC420K/422.1/IEC132WB8 screw reducer , produced by the well-known Brevini , is an essential component for motion transmission and speed reduction in various industrial systems. Here is a detailed overview of this used gearbox.

1. General Description

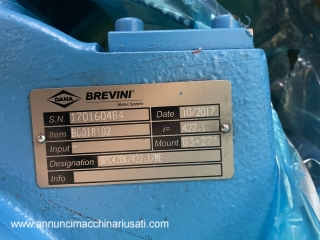

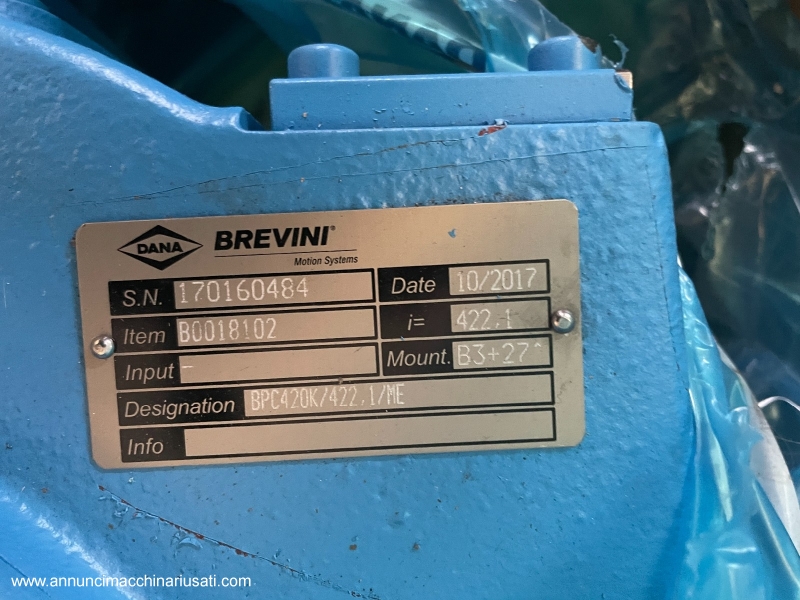

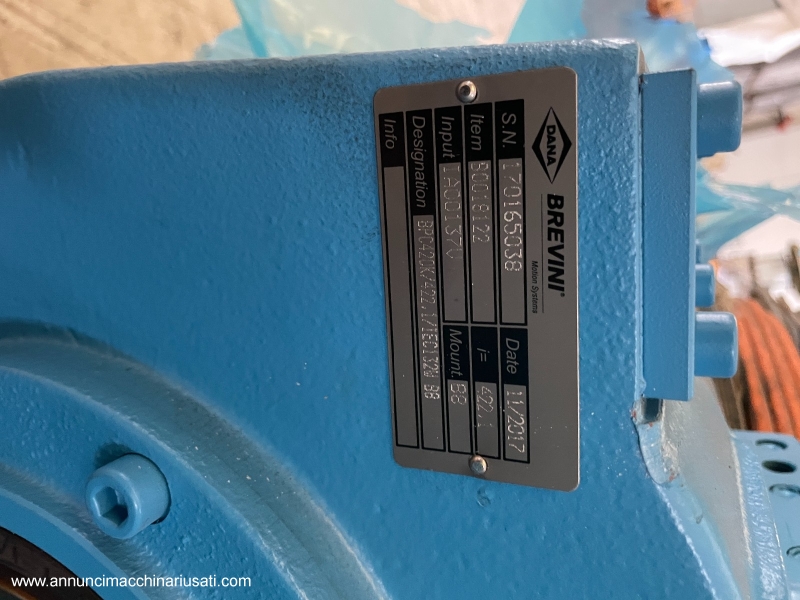

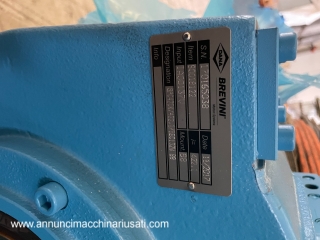

Brevini BPC420K/422.1/IEC132WB8 screw gearbox is designed to offer high speed reduction with a robust and reliable configuration. This model was produced in November 2017 and represents an ideal solution for applications requiring precision and durability.

2. Construction and Components

• Brand and Model : Brevini BPC420K/422.1/IEC132WB8

• Description Brevini BPC420K/422.1/IEC132WB8 screw reducer uses a worm system to reduce the speed of an electric motor and transmit motion with a high reduction factor. This gearbox is known for its efficiency and robustness.

• Main Components:

  • Worm Screw : Components that reduce the rotation speed of the engine.
  • Support Washer : Provides support and stability to the worm.
  • Bearings : Ensures smooth operation and reduces wear.
  • Case : Manufactured from aluminum alloy or steel to withstand heavy loads and harsh operating conditions.

• Measurements and Characteristics:

  • Reduction Factor : I = 422.1. This high reduction factor allows to obtain an output speed much lower than the input speed.
  • Dimensions : Dimensional specifications not detailed, but usually included in market standards.
  • Mounting Type : Compatible with standard IEC flanges, facilitating installation with standard electric motors.

3. Procedure for Use

• Installation:

  1. Mounting : Place the gearbox on the machine or support frame using the mounting holes. Make sure the gearbox is correctly aligned with the electric motor.
  2. Connection : Connect the electric motor to the gearbox input shaft, using suitable couplings to avoid play and vibrations.

• Usage:

  1. Starting : Start the electric motor and observe the gearbox in operation to make sure there are no excessive vibrations or abnormal noises.
  2. Normal Operations : During operation, the gearbox will transmit the reduced motion to the output system.

4. Matching Accessories

• Electric Motors : Make sure the motor is compatible with the gearbox via IEC mounting.
• Drive Shafts : To connect the gearbox to loads and machines.
• Support Bearings : To improve stability and reduce wear.
• Cooling System : In case of applications that generate excessive heat.

5. Formulas for Optimal Use Parameters

• Output Velocity (N₂):

  $$N$$

  where N1N₁ $N$ 1 ​is II $I$ is the reduction factor (422.1 in the case of the Brevini BPC420K/422.1/IEC132WB8 ).

• Output Torque (T₂):

  $$T$$

  where T1T₁ $T$ 1 ​is

6. Materials He Can Work with

• Transmissible Materials Brevini BPC420K/422.1/IEC132WB8 reducer is designed to transmit mechanical movement. It is not intended to work with fluids or materials other than rotary motion.

7. Maintenance

• Lubrication : Check and maintain lubricating oil level according to manufacturer's specifications. Change the oil at regular intervals.
• Inspection : Periodically check the bearings and worm gear for wear or damage.
• Cleaning : Keep the gearbox casing clean and free from contaminants.

8. How to understand if it is a good used one

• External Conditions : Check that the reducer shows no obvious signs of damage, corrosion or wear.
• Operation : Test the gearbox to ensure that it operates without abnormal vibrations and with regular noise.
• History of Use : Request information on the past use of the reducer to evaluate its condition.

9. Sectors of Use

Brevini BPC420K/422.1/IEC132WB8 screw reducer finds application in:

• Industrial Automation : For motion transmission in automated machines and production lines.
• Manufacturing : Used in plants and machinery to reduce speed and increase torque.
• Transport Systems : In material transport and handling systems.

10. Why it is better to buy it used

Brevini BPC420K/422.1/IEC132WB8 screw reducer can be advantageous for several reasons:

• Lower Cost : The price of a used gearbox is generally lower than a new one.
• Availability : Used components can be available immediately without waiting times for production.
• Sustainability : Reduces waste of resources and contributes to environmental sustainability.

Brevini BPC420K/422.1/IEC132WB8 screw gearbox represents a robust and effective choice for speed reduction and motion transmission. If you want further details or have any other questions, I am at your disposal!
