Simasv sheet metal notching machine Model LC 1205 - The Ideal Solution for Precision Cutting
The Simasv Mod. LC 1205 sheet metal notching machine represents an excellent example of a used machine in good condition, capable of guaranteeing high performance and reliability. This model is renowned for its robustness and versatility in the sheet metal working industry, and is an ideal choice for machine shops and companies that require precision cuts on different types of materials.
The Simasv LC 1205 notching machine is designed to guarantee high level performance, thanks to its technical specifications:
Cutting capacity : 300 x 10 mm, ideal for processing even very thick sheet metal.
Variable angles : adjustable from 30° to 135°, allowing great flexibility in applications.
Blade length : 250 mm, optimized for clean and precise cuts.
Maximum workable thickness:
R42 (42 kg/mm²): up to 10 mm.
R60 (60 kg/mm²): up to 6.5 mm.
Cycle speed : 45 cycles/min for the entire length of the blades.
The Simasv LC 1205 is powered by a reliable and powerful engine:
Motor power : 5.5 - 7.5 kW (7.5 - 10 HP), sufficient to handle demanding jobs.
Voltage : 400 Volt, three phase, 50 Hz, compliant with industry standards.
Despite its high performance, the Simasv LC 1205 stands out for its compact and well-designed structure:
Work table dimensions : 1020 x 800 mm.
Overall dimensions : 1150 x 1450 x 1500 mm.
Weight : 1550 kg, which ensures stability during use.

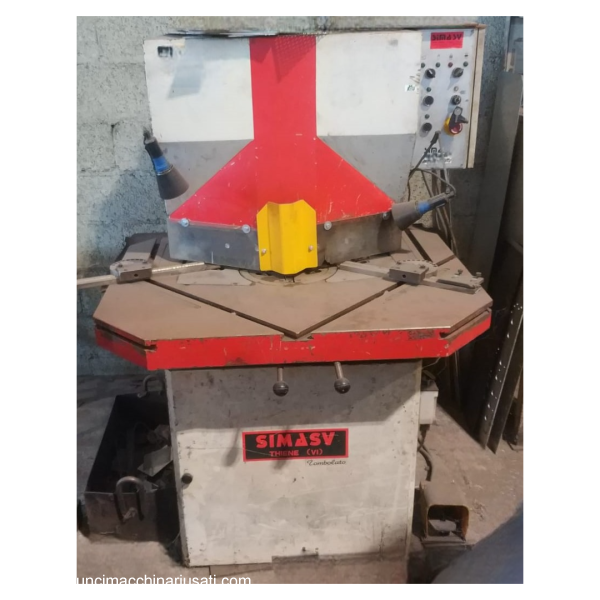

Visually, the Simasv LC 1205 notching machine looks like a robust machine, with a steel structure that minimizes vibrations during operation. The spacious work table allows you to handle large workpieces with ease. The blades are made of high quality steel to ensure long life and high cutting precision.
The operation of the Simasv LC 1205 is simple and efficient:
Preparation : Adjust the desired cutting angle using the quick adjustment system.
Loading : Place the sheet metal on the work table.
Operation : Start the machine via the control panel, making sure the settings are correct.
Cutting execution : Thanks to the cycle speed of 45/min, the job is completed quickly without compromising quality.
The notcher is compatible with several accessories to further enhance its performance, such as custom clamping systems and replacement tools for specific applications. Furthermore, it is equipped with an intuitive control console to facilitate operations.
To calculate the maximum allowable load based on the thickness of the sheet metal and the length of the cut, it is recommended to use the formula:
Required force = Thickness (mm) x Length (mm) x Material strength (kg/mm²).
The Simasv LC 1205 complies with CE regulations, guaranteeing high safety standards. Maintenance is simple and includes:
Periodic lubrication of moving components.
Checking and sharpening the blades.
Regular check of the electrical and hydraulic system.
Buying a used Simasv LC 1205 notching machine offers numerous advantages:
Economic convenience : a competitive price compared to new.
Guaranteed quality : this model is known for its reliability over time.
Immediate availability : ready to use without long waiting times.
Simasv LC 1205 finds application in various sectors, including:
Metallic carpentry.
Production of windows and doors.
Processing of stainless steel and ferrous materials.
Don't miss this opportunity: the Simasv Mod. LC 1205 notching machine is a safe investment to improve the productivity of your company. Contact us for further information and to view the machine in person!
