Speed:
6000 BPH
containers:
glass
formats:
0.25 l, 0.375 l, 0.75 l
Product:
sparkling wine, stuck wine, sparkling wine

itealproject maxidepal2000 2006 2006
filling monobloc alfatek tbs.f15.6.32.4 ISO 2014
monobloc of Alfatek TBS28.7.32 .6 LP 2005
Nortan Minerva 40 wire cager 2014
Neri MYR 2 heater 2014
Arol capper Stelvin
capper 2005 Nortan Prisma 6 + 6 TR
capper 2005 Nortan Prisma 40 S capper 2014
Cavagnino & Gatti CG/E8/4/2XPSP labeler 2005
Forma italproject cardboard Euroform 2005
Case packer italproject A7.39 2005
Duetti Packaging CHMS
Carton closer italproject TAPE 21 2005
Palletizer italproject Maxipal 2005

Used Depalletizer Used
Depalletizer Semiautomatic Italproject model Maxidepal2000 from 2006.

The formats processed are mainly 250 ml and 375 ml bottles.

The machine is currently ready to perform operations.

Its safety protections and manuals are also present. The loading is carried out from below, and there is a flap removal system.

The pallet warehouse is absent. Isobaric filling monoblock
Manufacturer: ALFATEK

Model: TBS.F15.6.32.4 ISO

Year: 2014

Clockwise rotation.

There is a 6-cavity blow molding machine.

Single treatment 16 gripper rinser.

Isobaric filler with mobile nozzle and electronic valve.

Mushroom cap and flat cap capper with 4 heads and standard cap size.

LP filling monoblock
Manufacturer: ALFATEK

Model: TBS28.7.32.6 LP

Year: 2005

Speed ​​(b/h): 6000

Clockwise direction.

Blower with 7 cavities

Rinser with 28 grippers single treatment

LP filler with mobile nozzle

6 head flush

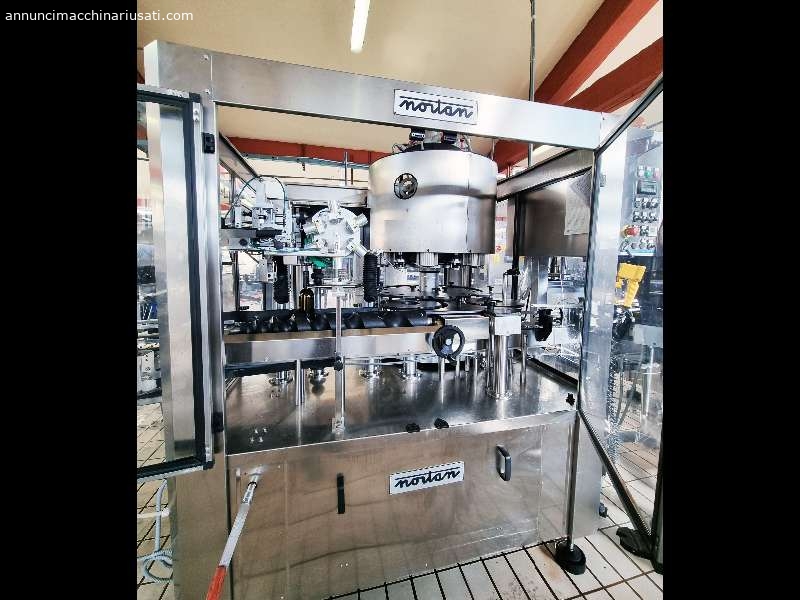

capper Complete line used for wine
Manufacturer: Nortan

Model: Minerva 40

Year: 2014

Speed ​​(b/h): 6000

Processed formats: Sparkling wine bottles

Rotation direction hourly.

Type of cage: Preformed

No. of heads: 4

It has a high capacity dispenser

Weighs 2000 kg

Used Stelvin
capper Manufacturer: Alfatek

Model: Stelvin capper

Speed ​​(b/h): 5400

Type of cap: Screw cap

No. of heads: 3

Processed formats: Lancia, Bordolese, 250 ml.

Used capper
Manufacturer: Nortan

Model: Prisma 6 + 6 TR

Year: 2005

Speed ​​(b/h): 6300

Processed formats: Lancia, Bordolese and Isonzo

Processed product: PVC and polylaminate caps

No. of heads: 6 + 6

Type of Capsules: PVC and Polylaminate

Standard capsule warehouse

Weight 1500 kg

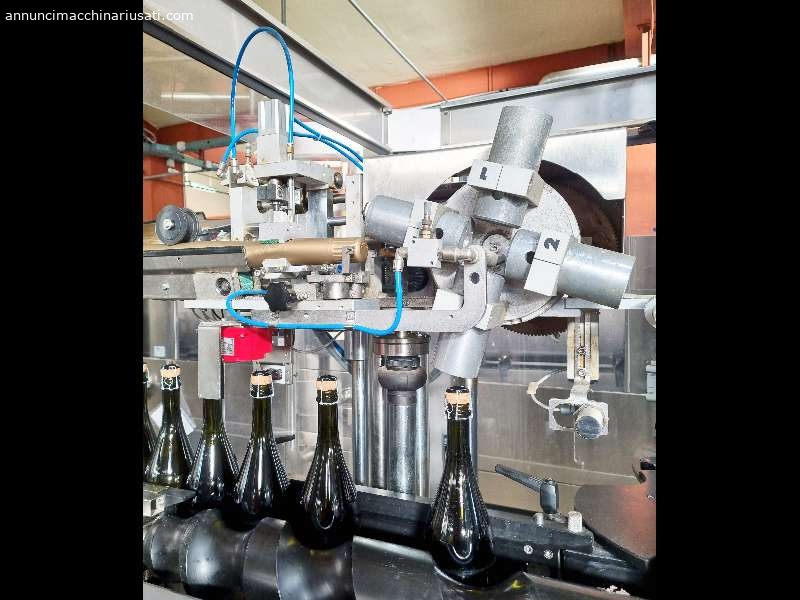

Used sparkling wine capper
Manufacturer: Nortan

Model: Prisma 40 S

Year: 2014

Processed formats: Sparkling

Product processed: Sparkling wine capsules

No. of heads: 4

Capsule type: Polylaminate

Standard capsule warehouse

Weight 1500 kg

Used Labeling Machine – Used complete line for wine
Manufacturer: Cavagnino & Gatti

Model: CG/E8/4/2XPSP

Year: 2005

Speed ​​(b/h): 7200

Processed formats: 250 mL, 375 mL, 750 mL bottles.

Plates: 8

Number of stations: 3

Rotation direction: clockwise

Labeling method: Self-adhesive labels

Head adjustment: Manual

Performs ironing on exit

Used Carton Form
Manufacturer: Italproject

Model: Euroform

Year: 2005

Speed: 1000 cartons/h

Processed formats: American cardboard from 6/12/24/30 bottles

Type of closure: Hot

glue Used case packer - Complete line used for wine
Manufacturer: Italproject

Model: A7.39

Year: 2005

Processed formats: 250 mL bottles, 375 m
