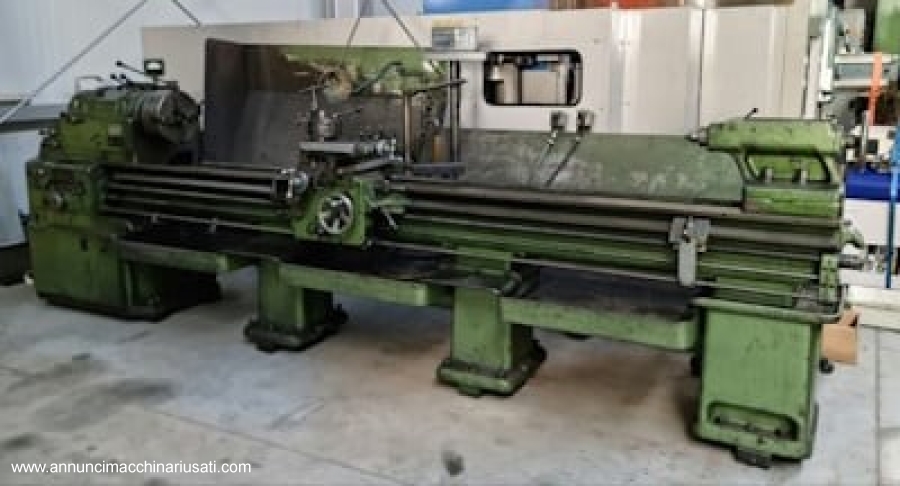

Used Lathe OERLIKON DMO 1 – Performance, Reliability and Power for Your Workshop

The OERLIKON DMO 1 Used Lathe is a high quality machine, designed to guarantee high performance in a wide range of industrial applications. With a solid structure, a powerful motor and precision accessories, this lathe is perfect for those looking for a versatile, robust machine capable of offering precision in even the most complex processes. The OERLIKON DMO 1 is a lathe with generous dimensions, built to last over time and to satisfy the most demanding needs of operators.

Technical Characteristics of the OERLIKON DMO 1 Lathe

The OERLIKON DMO 1 has been designed to guarantee high performance, precision and reliability even in the most difficult working conditions. Here are the main features that make this lathe an ideal machine for workshops that need quality and resistance:

• Year of manufacture : Not specified, but guaranteed to offer performance comparable to that of more modern machines.
• Central height : 265 mm. This measurement indicates the height of the center of the spindle, a dimension that allows you to work precisely on pieces of different shapes and sizes.
• Wheelbase : 3000 mm. Thanks to the wide wheelbase, the OERLIKON DMO 1 lathe allows you to work on large pieces, making it perfect for turning operations on long and bulky components.
• Spindle bore : 45 mm. The chuck hole allows the passage of longer and larger diameter pieces, a very important feature for the type of machining that this lathe is capable of handling.
• Swivel diameter above the bed : 530 mm. With a machining diameter above the bed of 530 mm, the OERLIKON DMO 1 is capable of handling workpieces of considerable size, ensuring maximum versatility in turning operations.
• Swivel diameter on the slide : 340 mm. This measurement is indicative of the possibility of machining pieces with smaller diameters with maximum precision and stability.
• Turning diameter on the recess : 630 mm. The recess allows you to machine larger diameter pieces, a fundamental feature for lathes of this type.

Working Speed

The OERLIKON DMO 1 lathe has a rotation speed that varies from 28 to 1250 rpm , with 12 speed levels . Thanks to this wide range, the lathe is suitable for different types of processing, from the heaviest cutting to fine finishing, passing through a variety of intermediate operations. The ability to adjust the speed offers maximum control during the machining process.

Engine Power

The OERLIKON DMO 1 Lathe is equipped with a motor with a power of 15 HP (approximately 11 kW ), which offers a powerful thrust for working on hard and resistant materials, without compromising precision. Thanks to this power, it is possible to work even on large diameter pieces with ease and obtain excellent results quickly.

Accessories Included and Equipment

The OERLIKON DMO 1 lathe is supplied with numerous accessories that increase its versatility and efficiency:

• 1 SONY position indicator, type LH 52 for 1 axis : This indicator allows constant and precise monitoring of the axes, guaranteeing minimum tolerances and improving the quality of machining.
• 1 RÖHM four-jaw chuck Ø 315 mm with individually adjustable interchangeable jaws : Essential for the safe and stable grip of workpieces, this chuck is perfect for precision machining.
• 1 Four-jaw front end Ø 560 mm with interchangeable jaws : Useful for working on irregularly shaped pieces, the front end guarantees stability during turning operations.
• 1 Four-jaw front Ø 550 mm with interchangeable jaws : A further accessory that increases versatility, allowing processing on a variety of components.
• 1 Fixed rest : This rest supports long workpieces during turning, reducing vibrations and improving work quality.
• 1 MULTIFIX quick-change tool holder, type C with 4 tool holders : The MULTIFIX quick-change system makes changing from one tool to another quick and safe, reducing machine downtime and increasing efficiency.
• 1 Machine light : Adequate lighting is essential to ensure visibility during processing, and this dedicated light improves operation.
• 1 Cooling device : Guarantees optimal temperature management during processing, avoiding overheating which could compromise the quality of the piece and the life of the machine.

How to Use the OERLIKON DMO Lathe 1

The OERLIKON DMO 1 lathe is easy to use but requires an expert operator to exploit its full potential. After setting the spindle and tools, the rotation speed is selected based on the type of material and the processing to be performed. The SONY position indicator allows you to maintain high precision, while the MULTIFIX quick-change tool holder allows you to quickly switch between tools.

Maintenance and Safety

To keep the OERLIKON DMO 1 Lathe in excellent condition, it is necessary to follow some simple maintenance operations:

• Regular lubrication : Make sure all moving parts are well lubricated to avoid friction and premature wear.
• Temperature control : Periodically check that the cooling system is working properly to avoid overheating.
• Checking the wear of the spindles and tools : Replace worn components to always guarantee precise and safe machining.

Sectors of Use

The OERLIKON DMO 1 Lathe is ideal for use in various industrial sectors, including:

• Mechanical sector : Perfect for the production of spare parts and high precision components.
• Automotive sector : Used for machining engine components, transmissions and other automotive parts.
• Aerospace : Suitable for turning tough and complex materials, such as those used in the aerospace industry.

Why Buy a Used OERLIKON DMO 1 Lathe?

Buying the OERLIKON DMO 1 lathe is an advantageous choice for those who want a powerful and versatile machine at an affordable price. This lathe is built to last over time and offers high performance even in harsh working conditions. Thanks to its robustness and the availability of accessories, it represents a perfect choice for workshops looking for a machine that gives the best in every operation.

Conclusions

The Used OERLIKON DMO 1 Lathe is a quality machine that combines power, precision and reliability. If you want to improve your productivity without compromising the quality of your work, this used machine is a smart investment. Contact us for more details and to get the price on request !
