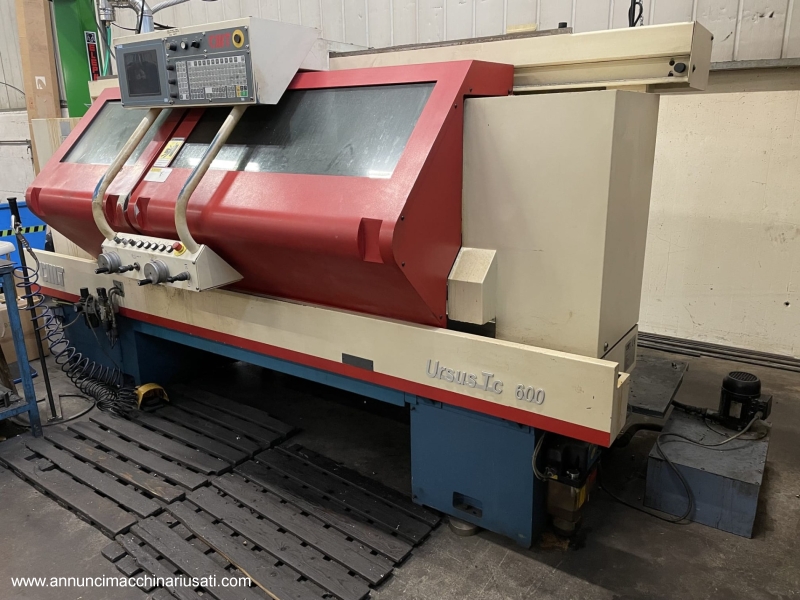

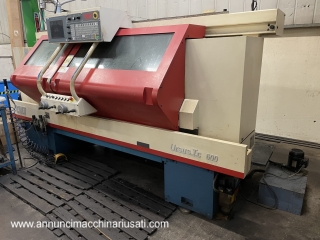

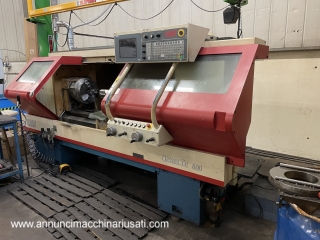

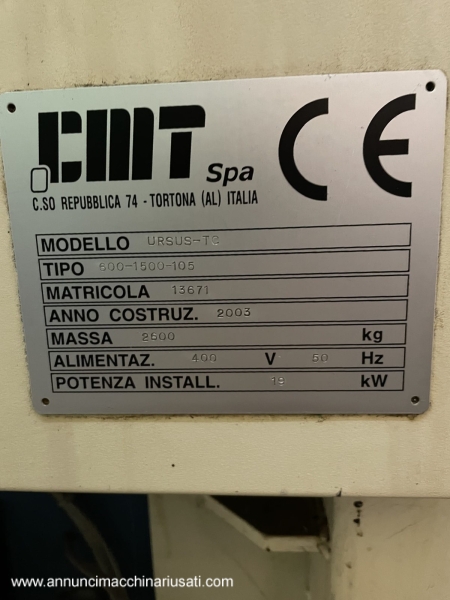

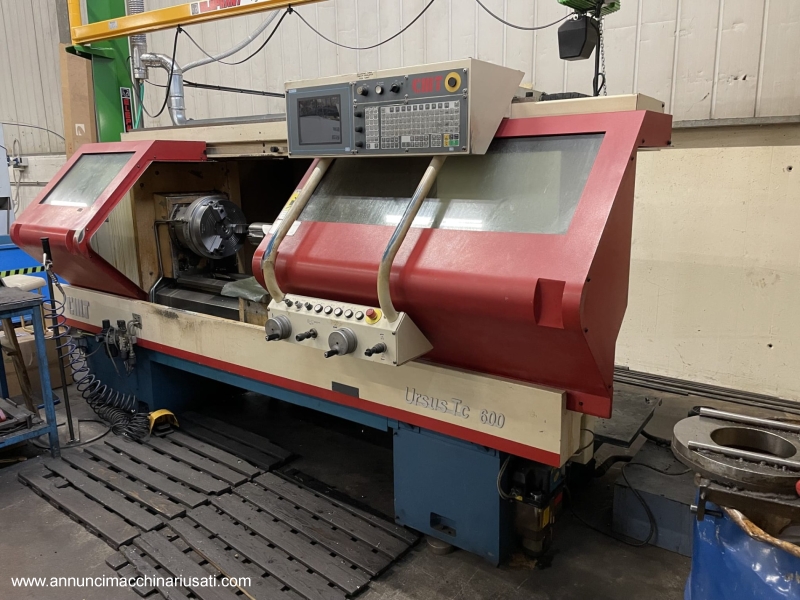

The CMT Mod. URSUS TC 600x1500x105 is a self-learning CNC lathe designed for precision machining and equipped with features that make it ideal for mechanical workshops and manufacturing companies. This used model, dating back to 2003, is in excellent mechanical and electronic condition and can be viewed by appointment to check its functional conditions. The CMT is known for the quality and robustness of its machines, and the URSUS TC 600 is an excellent choice for those looking for a versatile and reliable CNC lathe.

Main technical characteristics of the CMT URSUS TC 600 lathe

This lathe is designed to offer precise and reliable machining. Below are the essential technical data:

• Maximum diameter allowed on the bench : 600 mm
• Maximum diameter allowed on the wagon : 365 mm
• X axis travel : 310 mm
• Z axis travel : 1500 mm
• Rotation speed : up to 2200 rpm, ideal for a variety of turning operations
• Chuck nose : CL 8", offering a sturdy and stable connection for the chuck
• Spindle power : variable between 9 and 13 kW, powerful enough for complex machining and hard materials
• Bar passage : 105 mm, suitable for pieces of large dimensions
• Overall dimensions : 4300 x 1800 mm, with a total weight of 2600 kg, which gives stability during use

Accessories included

The CMT URSUS TC 600 is supplied with a series of useful accessories to optimize processing:

• Baruffaldi automatic 8-position rotating turret , which allows rapid tool change, increasing productivity
• 315 mm self-centering chuck with 3 jaws, for a safe and precise grip of the pieces
• Fixed tool holders
• Use and maintenance manual and electrical diagrams , which facilitate installation and configuration
• CE declaration of conformity , essential to ensure safety and compliance with regulations

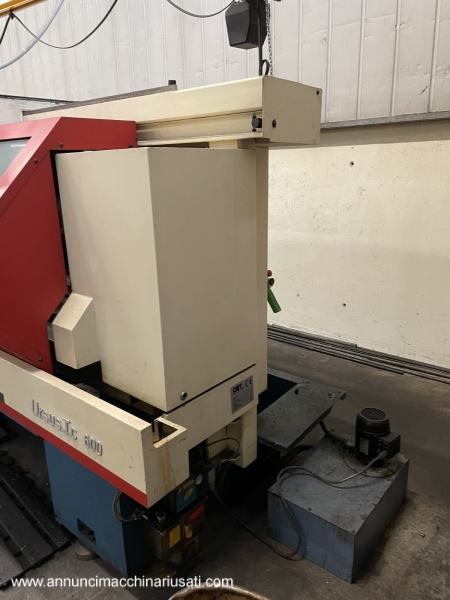

• Protections with integral fairing , which increase operator safety

Procedure for using and advantages of the CNC system

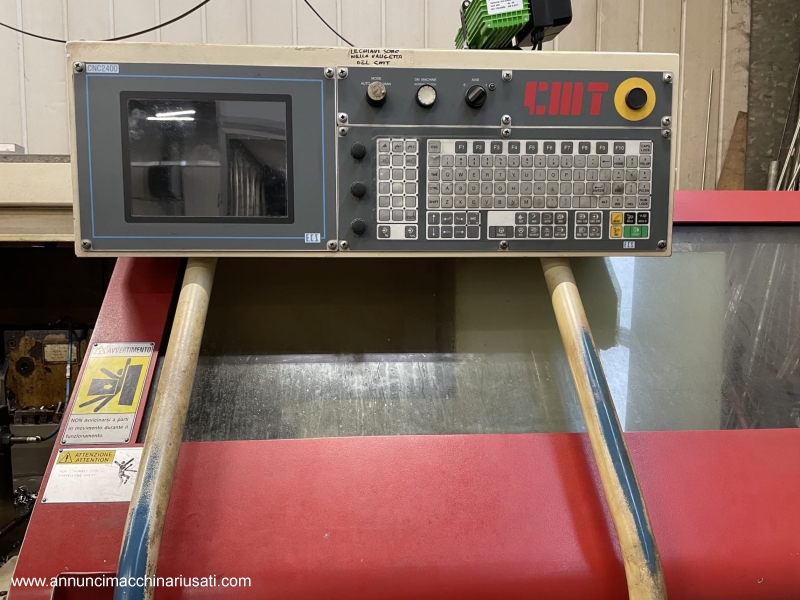

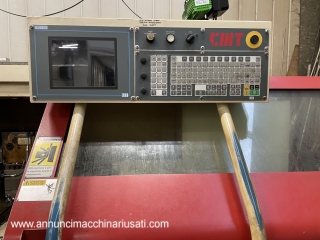

The CNC system of this lathe, equipped with ECS 2400 , is intuitive and allows the operator to easily learn the operation. Thanks to self-learning, the lathe memorizes work sequences, improving efficiency and reducing errors. Setup is simple and allows you to manage both small and large production batches without the need for frequent manual settings.

Maintenance and safety

Regular maintenance of the CMT URSUS TC 600 ensures optimal performance and long life. It is advisable to periodically check the alignment of the spindle and the lubrication of the moving components. Thanks to the CE declaration, the machinery complies with safety standards; however, it is important to take additional measures such as wearing personal protective equipment and following safety procedures.

Application sectors and advantages of buying used

This CNC lathe is ideal for sectors such as precision mechanics, the production of automotive components and the creation of industrial parts. Investing in a CMT URSUS TC 600 represents an excellent quality-price ratio: you get a high-quality, fully functional machine at a significantly reduced cost compared to new.
