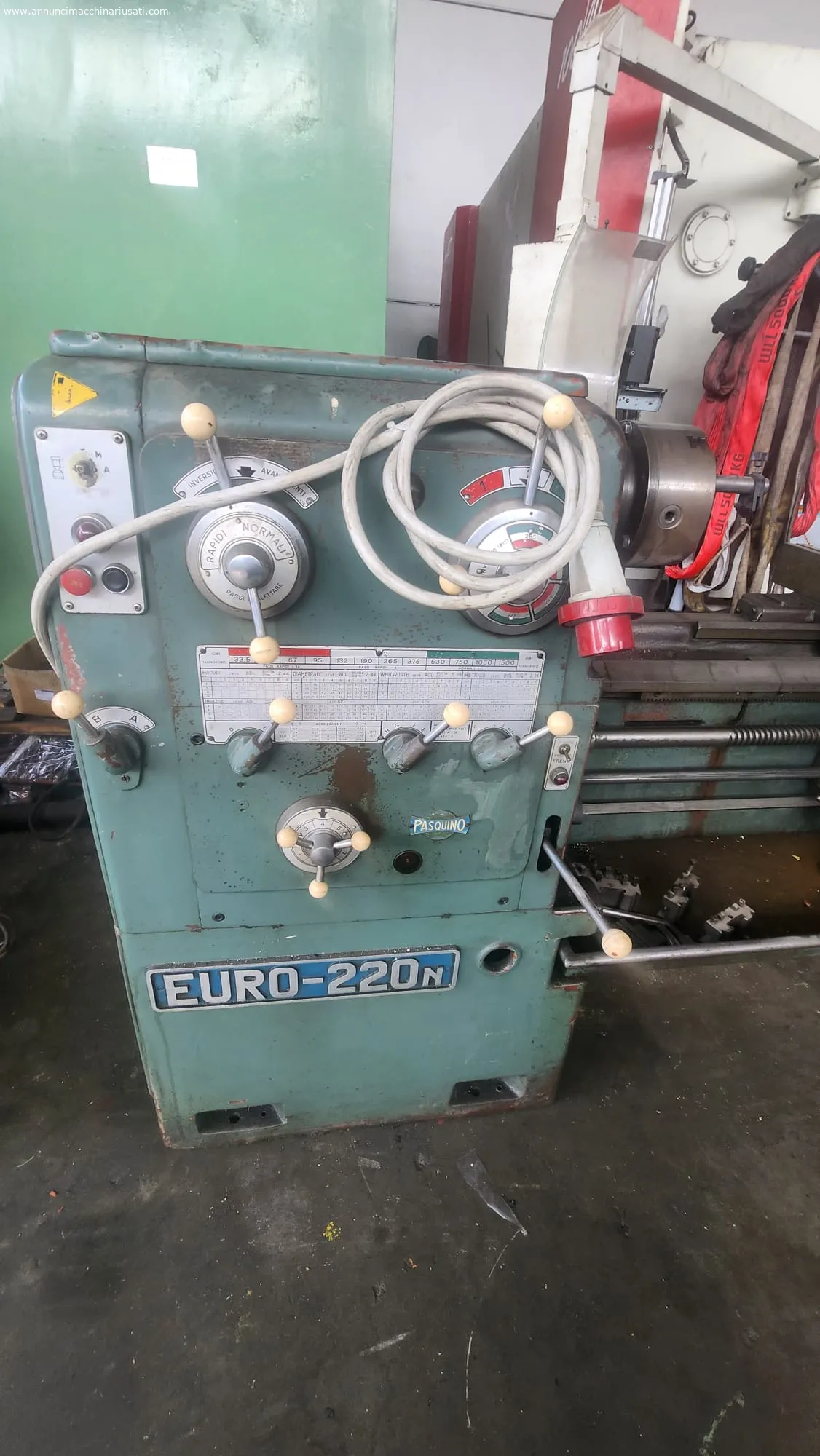

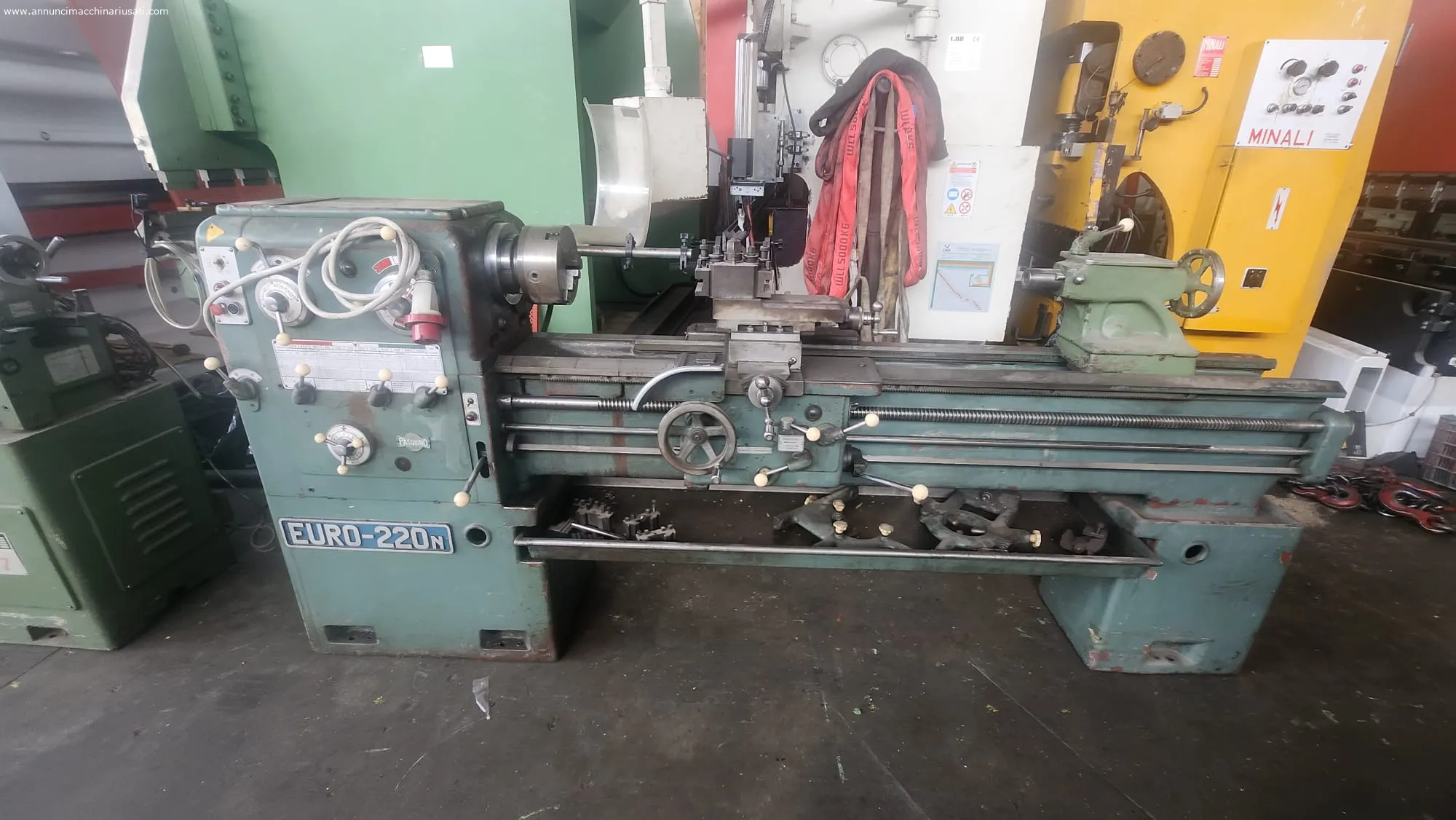

PASQUINO Parallel Lathe Mod. Euro 220 x 1500

Introduction to the PASQUINO Parallel Lathe Euro 220 x 1500

The PASQUINO Parallel Lathe Mod. Euro 220 x 1500 is a used machine of notable quality, designed to guarantee precision and robustness in a variety of turning applications. This model, widely used in workshops and mechanical laboratories, offers a combination of generous dimensions and high technical capabilities, making it suitable for both the machining of large parts and precision applications.

Visual Appearance and Construction

The PASQUINO Euro 220 x 1500 stands out for its solid and compact design. The machine has a robust structure, made of high quality cast iron, which helps to ensure stability and reduce vibrations during turning operations.

• Structure: The machine is characterized by a massive body that offers excellent resistance to mechanical stress.
• Main Components: Includes the bench, spindle head, tool slide and lead screw. These components are designed to work together synergistically, ensuring precision and durability.

Technical Specifications of the Euro 220 x 1500 Model

Here is a detailed overview of the technical specifications of the PASQUINO Euro 220 x 1500 :

• Tip height: 220 mm
• Distance between the Tips: 1500 mm
• Spindle hole: 46 mm
• Diameter Allowed on the Bench: 440 mm
• Speed ​​Range: 12 variable speeds, from 31.5 to 1500 rpm
• Lead Screw Pitch: 4 threads x 1''

Construction Details and Components

• Bench and Slide: The bench is designed to accommodate pieces of considerable size with a maximum diameter of 440 mm. The tool slide allows precise movements thanks to its robust construction.
• Spindle Head: The chuck has a 46mm bore and an adjustable speed range that allows you to adapt the lathe to different applications.
• Lead Screw: The 4 x 1'' lead screw is essential for threading operations and offers precise and controllable movement.

Use and Processing Procedure

To use the PASQUINO Euro 220 x 1500 , follow these steps:

1. Preparation of the Piece: Mount the piece to be worked on the chuck making sure it is well fixed and aligned.
2. Speed ​​Setting: Select the desired turning speed using the range of 12 available speeds. The speed range varies from 31.5 to 1500 rpm.
3. Processing: Start the lathe and start processing. Use the tool slide to carry out the necessary cuts and processes.
4. Finishing and Control: After completing the processing, check the piece to verify the precision and quality of the work carried out.

Accessories and Options

The PASQUINO Euro 220 x 1500 can be equipped with various accessories to increase its versatility:

• Additional Spindles: To handle pieces of different sizes and improve flexibility.
• Measuring Devices: For more precise measurements during processing.
• Cooling System: To keep processing temperatures low and extend the life of the tools.

Optimal Use Parameters

To ensure optimal use of the PASQUINO Euro 220 x 1500 , consider the following mathematical formulas:

• Cutting Speed ​​(Vc): $V$
  • Where DD $D$ is the workpiece diameter and NN $N$ is the spindle speed in rpm.
• Progress per Lap (f): $f$
  • Where SS $S$ is the feed rate per minute and NN $N$ is the number of spindle revolutions.

Workable Materials

The PASQUINO Euro 220 x 1500 is designed to process different materials, including:

• Steel: For applications requiring robust and precise machining.
• Aluminium: Ideal for light parts and high precision machining.
• Bronze and Brass: Suitable for components with machinability and corrosion resistance requirements.

Maintenance and Verification of Used Equipment

To keep your PASQUINO Euro 220 x 1500 in excellent condition, follow these tips:

1. Regular Cleaning: Remove chips and dust after each use to keep the machine clean and running smoothly.
2. Lubrication: Make sure moving parts are well lubricated to reduce wear and ensure smooth operation.
3. Periodic Checks: Check the condition of the lead screw and spindle head to ensure they are in good condition and functioning properly.

How to evaluate a good used one:

• Operating Hours: Check the hours of use to evaluate the wear of the machine.
• General Condition: Examine the machine for any damage and check that all parts are working properly.
• Documentation: Make sure the lathe is sold with complete documentation and certifications of conformity.

Sectors of Use

The PASQUINO Euro 220 x 1500 is ideal for various industrial sectors:

• Mechanical Industry: For the production and processing of precision components.
• Repair Workshops: For the maintenance and repair of tools and mechanical parts.
• Prototyping Laboratories: For the creation of prototypes and special parts.

Why It's Better to Buy Used

Purchasing a PASQUINO Euro 220 x 1500 Parallel Lathe offers numerous advantages:

• Lower Cost: Allows you to access a high quality machine at a lower price.
• Reliability: A well-maintained used lathe can offer excellent performance even after years of use.
• Quality-Price Ratio: The PASQUINO Euro 220 x 1500 is known for its robustness and precision, making it an advantageous choice even on the used market.

In conclusion, the PASQUINO Parallel Lathe Mod. Euro 220 x 1500 used represents a solid investment for those looking for a versatile and precise lathe, ideal for a wide range of turning applications.

Used and functioning machinery
Can be viewed at our associated warehouses
Possibility of transport and logistics throughout Italy and Europe
Available for any information without obligation
cod 2350
