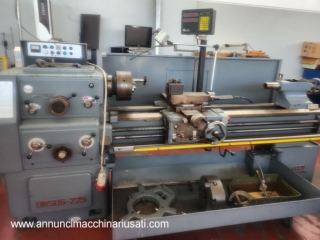

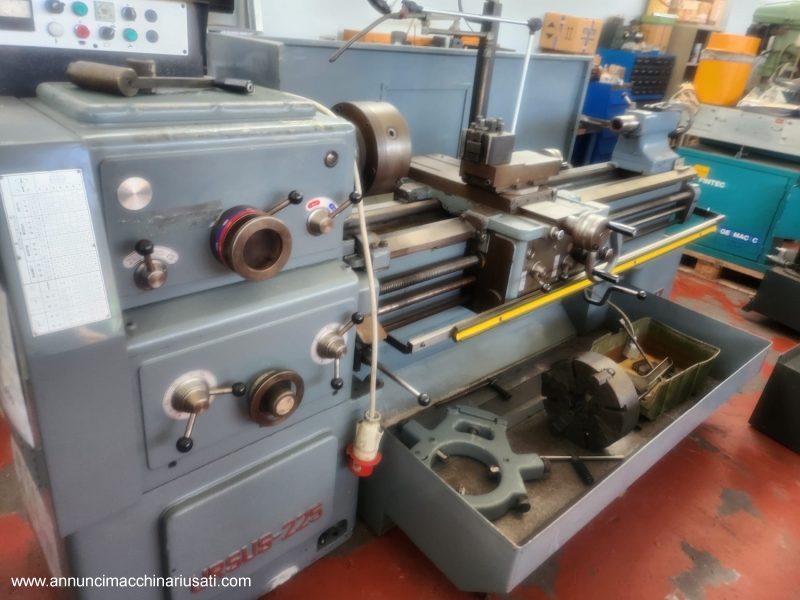

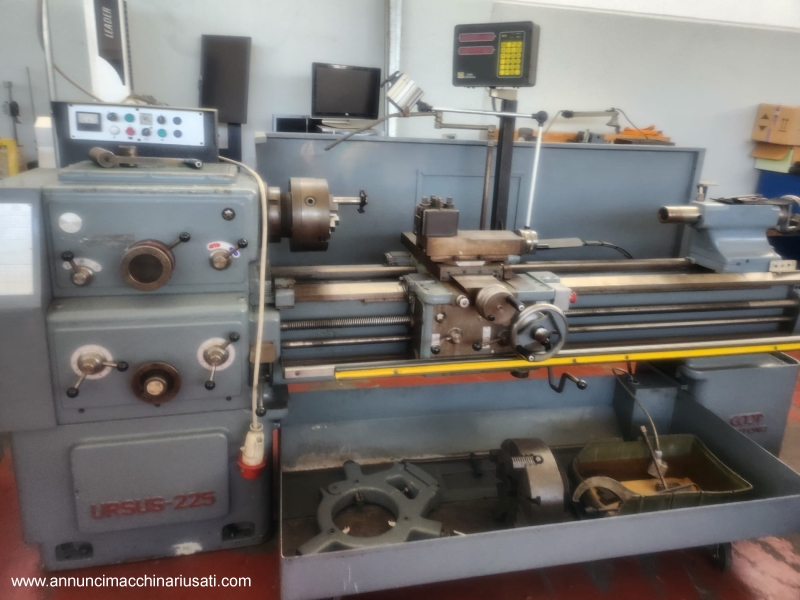

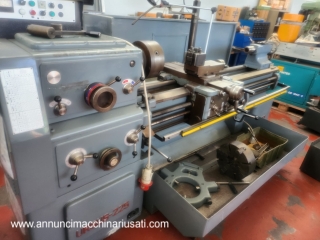

CMT URSUS Parallel Lathe Mod. 225 x 1500 mm
General Features:
- Model: CMT URSUS 225 x 1500 mm
- Type: Parallel lathe
- Condition: Used, working in good condition
Technical data:
- Distance between tips: 1500 mm
- Height of tips: 225 mm
- Turning diameter above the bench: 455 mm
- Turning diameter above the carriage: 270 mm
- Transversal slide travel: 270 mm
- Tool trolley travel: 165 mm
- Spindle hole diameter: 52mm
- Spindle rotation speed: 35-1500 rpm
- Number of spindle speeds: 16
- Engine power: 7.5 kW
Main Components:
- Spindle: Provides rotation of the workpiece.
- Carriage and slide: They contain and move the tool and the piece.
- Spindle holder: Supports the chuck and the workpiece.
- Tool trolley: Adjusts and supports the tool.
- Speed control: Adjusts the rotation speed of the spindle.
Measurements and Dimensions:
- Total dimensions: Variable depending on the specific model, but generally between 2 and 3 meters in length.
- Weight: Typically around 1500-2000 kg.
Mechanical Characteristics:
- Rotating Speed: The speed range from 35 to 1500 rpm allows a variety of turning operations, from soft to harder metals.
- Number of Speeds: 16 adjustable speeds to suit different materials and finishes.
- Motor Power: 7.5 kW for robust working capacity.
Formulas for Optimal Use Parameters:
- Cutting Speed (Vc): Vc = (π × D × N) / 1000
- Vc = Cutting speed in m/min
- D = Workpiece diameter in mm
- N = Rotation speed in rpm
- Depth of Cut and Feed Speed: Depend on the material and tool specifications.
Workable Materials:
- Metals: Steel, aluminium, copper, brass
- Non-metallic materials: Hard plastic, wood (with appropriate modifications)
Maintenance:
- Lubrication: Check and maintain the lubrication system to reduce wear.
- Alignment Check: Periodically check the alignment of the spindle and carriage.
- Cleaning: Clean regularly to remove chips and dust.
- Inspection: Check for worn components such as bearings and guides and replace them if necessary.
Evaluation of Used:
- General Condition: Check the degree of wear, the presence of damage or malfunctions.
- Previous Maintenance: Ask for documentation of maintenance and interventions carried out.
- Functional Test: Carry out a test to verify the operation and precision of the lathe.
Sectors of Use:
- Manufacturing Industry: Processing of metal and plastic parts.
- Mechanical Workshops: Repair and production of components.
- Automotive Industry: Production of vehicle parts.
Advantages of Buying Used:
- Lower Cost: Significantly cheaper than new.
- Minor Depreciation: Used lathes do not depreciate like new ones.
- Reliability: A well-maintained lathe can have a long remaining useful life.
If you have any other questions or need more details, let me know!
Viewable at our associated warehouses. transport and logistics services throughout Italy and abroad, guaranteeing a hassle-free shopping experience. For further details, contact us or search for 'Konzu srls' on the web Code 240557
