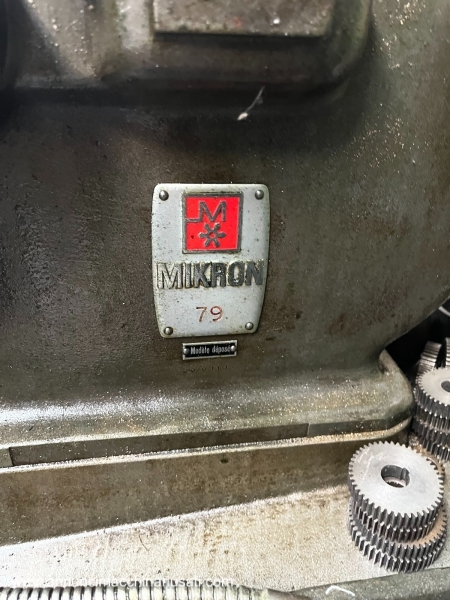

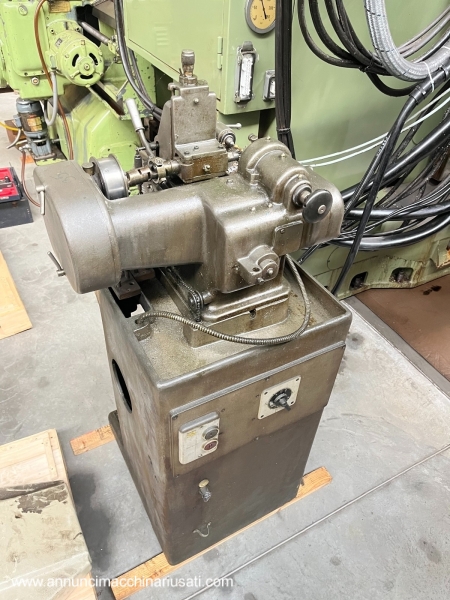

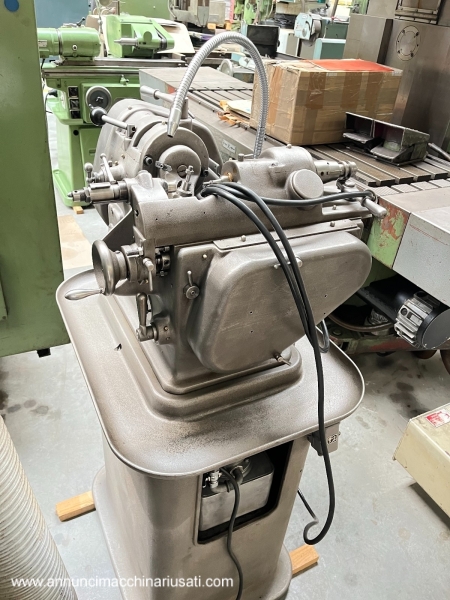

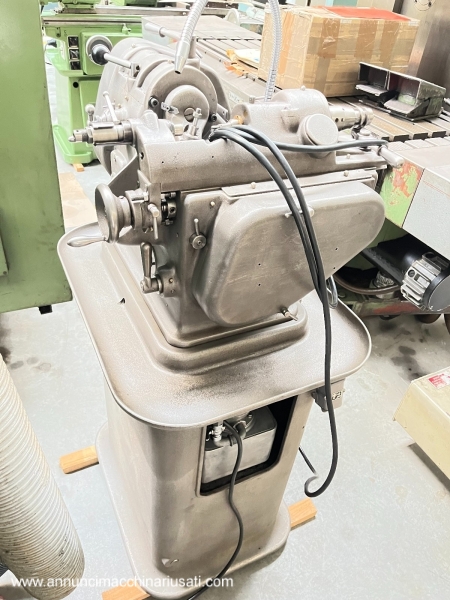

FOR SALE USED MIKRON BRAND SHUTTERING MACHINE MODEL 122.
Technical Data Sheet of the Used Mikron Model 122 Gear Hobbing Machine
General Overview
The Mikron 122 is a precision horizontal gear hobbing machine used for gear machining. It is particularly suitable for hobbing operations on small parts, making it ideal for applications in sectors such as the production of watches, precision instruments, and automotive components.
Technical Specifications
- Maximum workpiece diameter: 40 mm
- Maximum stroke: 40 mm
- Maximum carriage movement: 40 mm
- Maximum length with chuck: 35 mm
- Distance between tips: 105 mm
- Milling head orientation: 95° right and 90° left
- Machine weight: 280 kg
- Machine dimensions: 700 x 670 x 1340 mm
Components and Materials
The Mikron 122 consists of various components essential for precise gear machining, including:

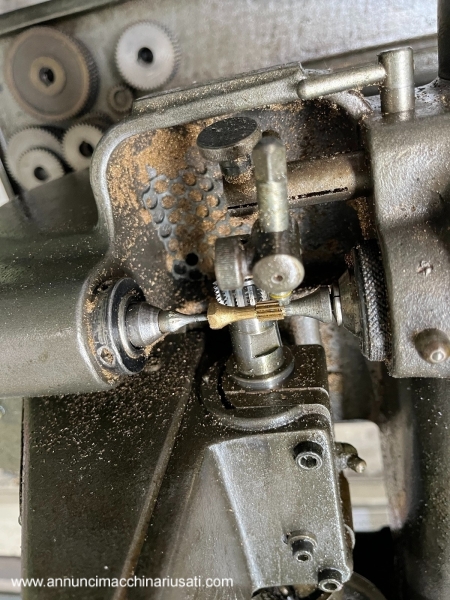

- Milling spindle: Adjustable to allow precise hobbing operations.
- Advancement carriage: Movable to guarantee precision in the position of the piece.
- Tailstock: To support the piece during processing.
- Main motor: Provides the power needed for the milling operation.
Workable materials include steels, light alloys, and other metallic materials, making it versatile for different industrial applications.
Maintenance
Regular maintenance is crucial to keeping your Mikron 122 in optimal condition. It is advisable:
- Lubrication: Regularly check and lubricate moving components such as the spindle and carriages.
- Check for wear: Periodically check belts, pulleys and electrical components for signs of wear.
- Alignment and Calibration: Ensure the spindle and carriage are aligned correctly and calibrate the machine to ensure accuracy.
One option to keep your machine running efficiently is the overhaul process, which includes replacing bearings, belts and critical electrical components.
Evaluation of a Good Used Car
To evaluate a used Mikron 122, check:
- Condition of bearings and belts: These must be in good condition with no obvious signs of wear.
- Machining Accuracy: Carry out machining tests to make sure the machine maintains precision.
- Completeness of components: Make sure all original parts are present and in good condition.
Application Sectors
The Mikron 122 is widely used in:
- Automotive industry: For the production of small gears.
- Watchmaking: For the manufacture of high precision components.
- Precision Instrumentation: Where precision is critical to functionality.
Why It's Better to Buy Used
Buying a used Mikron 122 is often convenient for the following reasons:
- Reliability and durability: These machines are built to last over time, still offering excellent performance even when used.
- Reduced cost: The cost of a used model is significantly lower than a new one, offering excellent value for money.
- Spare Parts Availability: Spare parts for this model are widely available, making maintenance less costly.
In conclusion, the Mikron 122 is an excellent choice for those looking for a robust and reliable precision gear hobbing machine, especially in the used market, where it offers excellent value for money
MAXIMUM DIAMETER OF THE PIECE 40MM MAX MOVEMENT 40MM MAX CARRIAGE MOVEMENT 40MM MAXIMUM LENGTH WITH CHUCK 35MM COUNTERSTICK DISTANCE 105MM MILLING HEAD ORIENTATION 95°RIGHT AND 90° LEFT. MACHINE'S OWN WEIGHT 280KG PRICE ON REQUEST
