Used Milling Drill Brand FAMUP Model RAG40

Introduction:
The FAMUP RAG40 Milling Drill is a used machine that stands out for its versatility and power, suitable for a wide range of applications in the metalworking sector. This model, known for its robustness and precision, represents an excellent opportunity for those looking for quality equipment at an affordable price.

Visual Appearance and Construction:

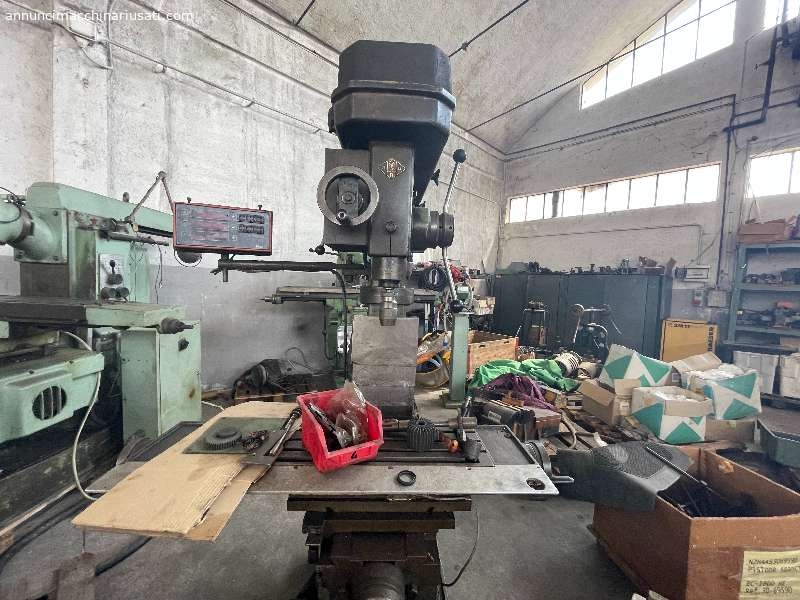

Visually, the FAMUP RAG40 Milling Drill presents itself with an industrial finish that communicates solidity. The machine features a heavy steel structure, which reduces vibrations during operation, ensuring precision. The work surface, measuring 800x255 mm, is well designed to facilitate the processing of pieces of various sizes. The high column allows for good maneuvering distance, while the ergonomic controls are easily accessible.

Main Components:
The FAMUP RAG40 Milling Drill is made up of various crucial elements:

• Column: Provides support and stability, reducing unwanted movement.

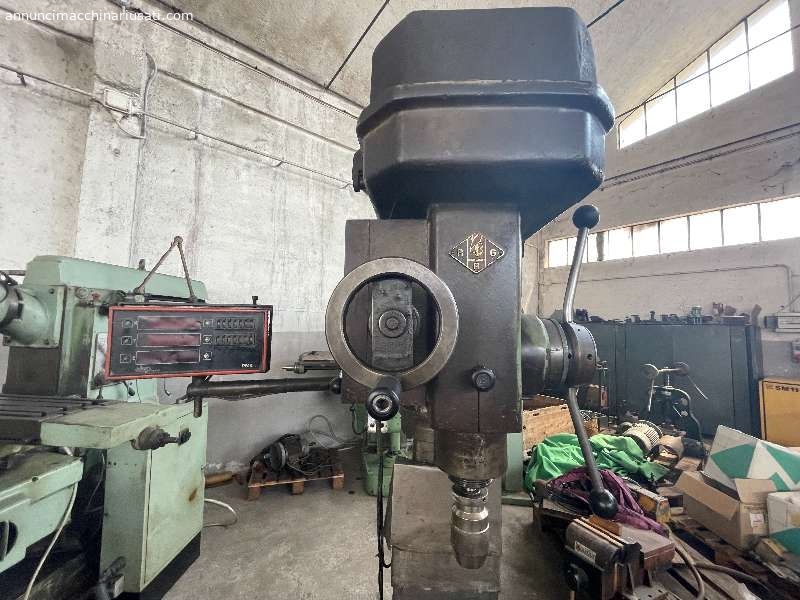

• Spindle: Designed to support tools of different sizes, it allows drilling and milling operations.
• Work Table: With generous dimensions, it facilitates the positioning of the pieces to be machined.
• Transmission System: Variator that allows you to change the rotation speed of the spindle.

Dimensions and Measurements:
The FAMUP RAG40 Milling Drill has specific measurements that make it practical for use in workshops:

• Dimensions: 1340 mm x 1250 mm x 900 mm.
• Weight: 470 kg, which guarantees stability and robustness during operations.
• Strokes: X 585 mm, Y 240 mm, Z 660 mm, which allow you to work on pieces of various sizes.
• Guide Spindle Axis Distance: 315 mm.

Mechanical Characteristics:
The performances of the FAMUP RAG40 Drill and Cutter are remarkable:

• Motor power: 3 Hp, sufficient to operate on materials of various hardness.
• Spindle speed: Variable from 60 to 2400 rpm, offers flexibility to adapt to different materials and processing techniques.
• Max spindle stroke: 130 mm, which allows drilling of significant depth.
• Automatic Spindle Advancement: Selectable between 0.05 mm, 0.10 mm and 0.20 mm, for precise machining.

Procedure for use:
Using the FAMUP RAG40 drill/mill is simple:

1. Preparation: Make sure the machine is turned off and proceed with installing the desired tool into the spindle.
2. Speed ​​Setting: Adjust the spindle speed based on the material and the operation you intend to carry out.
3. Operation: Turn on the machine and start working, constantly monitoring the progress to ensure optimal results.

Compatible Accessories:
The FAMUP RAG40 Milling Drill can be equipped with various accessories:

• Drilling and Milling Tools: Drills and cutters of different sizes and shapes.
• Fixing Devices: Clamps and locking systems to keep the piece stable during work.
• Cooling Systems: To lubricate during the most intensive processes, reducing the risk of overheating.

Formulas for Optimal Use:

• Cutting speed (vc): vc=π×D×n1000vc = \frac{π \times D \times n}{1000} $v$ $c$ $=$ 1000 π × D × n ​,
• Feed per Revolution (f): f=a×n1000f = \frac{a \times n}{1000} $f$ $=$ 1000 a × n ​,

Workable Materials:
The FAMUP RAG40 Milling Drill is able to work on various materials, including steels, aluminum and metal alloys, making it a versatile tool in every workshop.

Maintenance:

• Regular Inspections: Periodically check the condition of the chuck and guides.
• Lubrication: Apply appropriate lubricants to moving parts to reduce friction and improve machine life.
• Cleaning: Keep the work surface free of chips and dust to ensure optimal performance.

Evaluation of a Good Used Machine:
To evaluate whether a used FAMUP RAG40 Drill Mill is in good condition, it is important:

• Check General Condition: Inspect the machine for any signs of wear or damage.
• Check Functionality: Make sure all functions are working properly.
• Request Maintenance History: Information on any repairs or part replacements can be helpful.

Areas of Use:
The FAMUP RAG40 Milling Drill is commonly used in mechanical workshops, precision laboratories and manufacturing industries, thanks to its ability to carry out complex and precise work.

Advantages of Purchasing Used:
Purchasing a used FAMUP RAG40 Milling Drill allows you to obtain a high quality tool at a reduced price. With proper maintenance, this model can continue to offer high performance for many years, representing an excellent investment for any professional in the sector.
