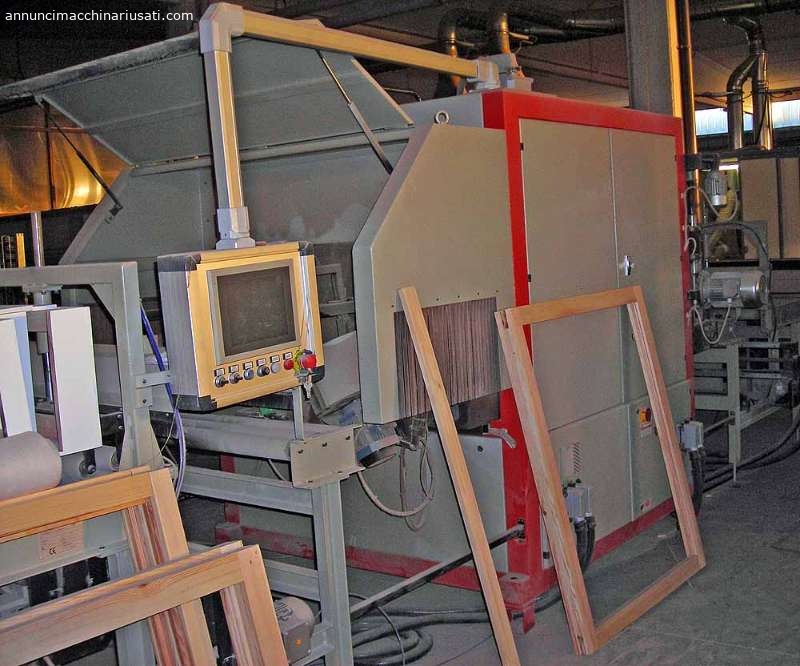

QUICKWOOD AUTOMATIC BRUSHING MACHINE mod.
RO1300/1T Ribbons. head with 4 counter-rotating brushes at variable speed with display
The brush-holder head is in turn rotating with variable speed and electric positioning in height
Piece transport system with belts adjustable in width with electronic button Adjustable forward speed
Inspection windows with safety electrical to CE standards.

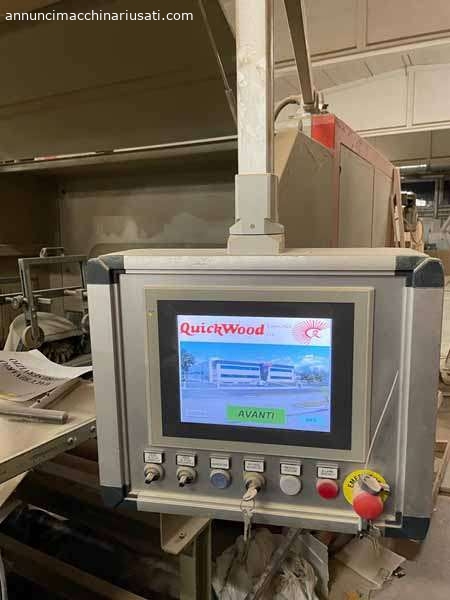

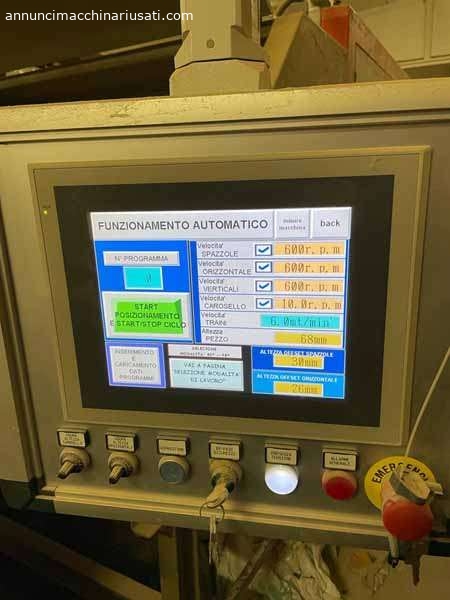

Dust extraction hood with 4 140mm connections. Complete with brushes - 10'' touch-screen PLC with storage capacity from 1 to 99 programs
- Electric horizontal machine output axis
- Separate control of brush rotation speed.
- Two electrically tiltable vertical brushes
- Automatic height positioning of the carousel and horizontal brushes.

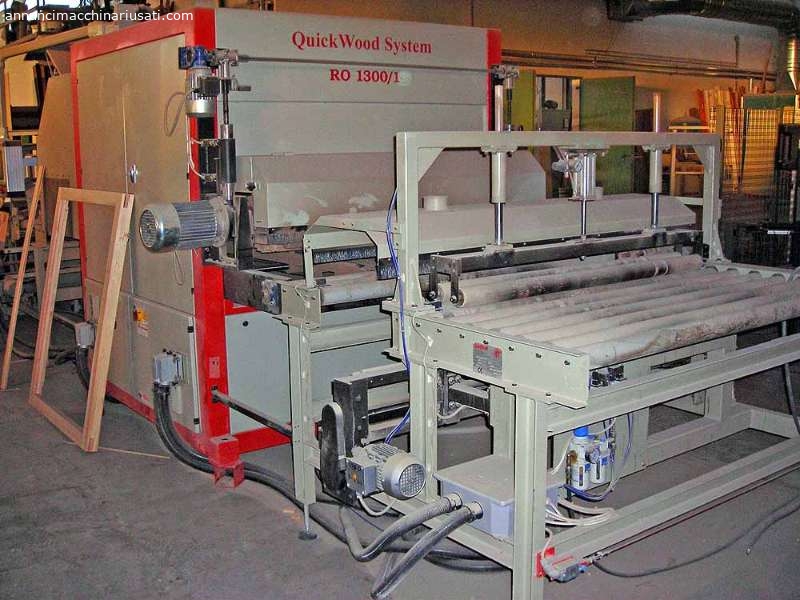

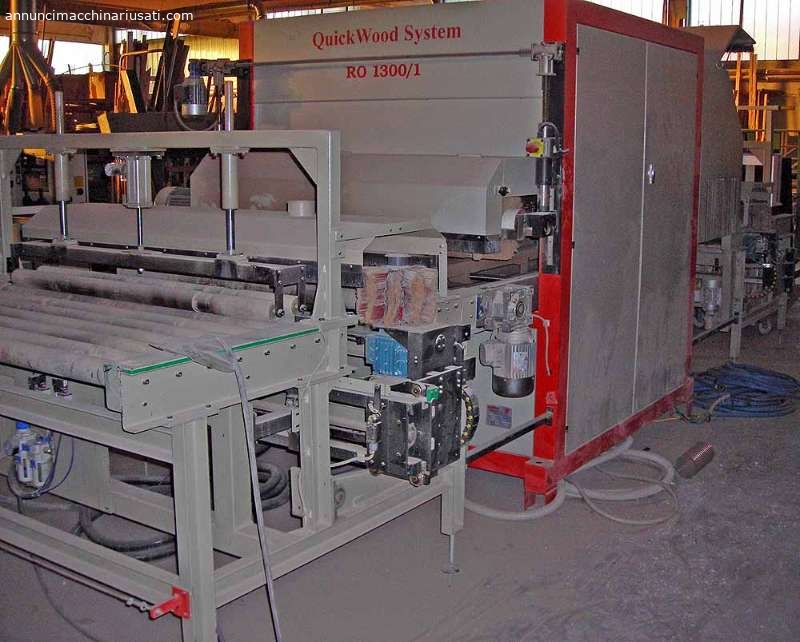

Two motorized roller conveyors in line with the previous machine and arranged one at the entrance and one at the exit, complete with automatic pressure rollers for blocking the piece, and tilting brushes that move from right to left and vice versa for brushing the head and bottom crosspieces tail of the windows.
External horizontal axis for thicknesses up to 100mm. 1.5Kw motor and inverter An external vertical axis adjustable in depth and inclination, for vertical stops
Automatic piece return, complete with micro and idle input/output roller conveyors, complete with automatic belt width control.
Useful working width 1300mm.
Infinite working length. Workpiece thickness 8-100mm.
Brush revolutions 350-1200 rpm.
Carousel revolutions 3-12 rpm. Piece feed 2-12m./min.
Brush length 500 mm.
Power of brush motor variator 3.4Kw, carousel motor variator 0.75Kw,
advancement motor variator 0.75Kw, positioning gearmotors 2X0.37Kw
External dimension 2300 X 1715 XH 2000mm.
