Technical Data Sheet: Pama AL-60 Manual Boring Machine

Introduction

The Pama AL-60 manual boring machine is a used machine tool known for its robustness and precision in boring operations. This model is particularly appreciated for its ability to perform detailed and high-quality workmanship. Thanks to its versatility and durability, the Pama AL-60 Boring Machine is an ideal choice for those looking for a reliable machine at an advantageous price on the used market.

General Features

The Pama AL-60 Boring Machine offers a number of technical specifications that make it suitable for a wide range of applications. Here is a summary of its main features:

• Table dimensions : 650 mm x 750 mm
• X Axis Travel : 600 mm
• Y Axis Travel : 400 mm
• Z Axis Travel : 550 mm
• Spindle diameter : 60 mm
• Spindle Speed : Various adjustable speeds
• Spindle connection : ISO 40
• Spindle Motor Power : Approximately 4 kW
• Overall Dimensions : Approximately 2000 mm x 3000 mm x 1800 mm
• Weight : Approximately 4000 kg

Components and Structure

The Pama AL-60 is designed with a robust structure that guarantees stability and precision during processing:

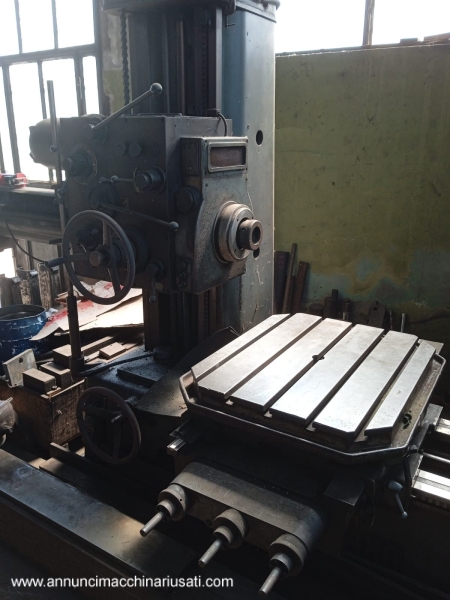

• Work Table : The table measures 650mm x 750mm, providing a solid base for mounting and supporting work pieces. It is equipped with holes for attaching clamps and support devices.
• Chuck : With a diameter of 60 mm and an ISO 40 connection, the chuck is compatible with a variety of tools and ensures adequate cutting capacity.
• Movement Axes : The X, Y and Z axes offer generous travel, allowing medium-sized pieces to be machined with good precision.
• Motor : The approximately 4 kW motor provides the power needed to perform boring operations efficiently.

Mechanical Characteristics

The Pama AL-60 boring machine is characterized by:

• Precision : The machine offers high precision due to its rigid structure and high-quality components.
• Versatility : Adjustable spindle speeds and axis travels allow you to perform various boring and milling operations.
• Robustness : The solid construction guarantees long life and low wear of the components.

Usage Procedure

To use the Pama AL-60 Reamer, follow these steps:

1. Preparation:

   • Check that the machine is correctly installed and leveled.
   • Check the lubrication level and general condition of the components.

2. Setting:

   • Place the workpiece on the table and secure it using clamps or support devices.
   • Adjust axis travel and spindle position based on machining specifications.

3. Operation:

   • Set spindle speed and other machining variables based on the material and tool used.
   • Start the machine and monitor the machining process to ensure the part meets required tolerances.

4. Control and Conclusion:

   • After processing, check the finished piece for accuracy and quality.
   • Turn off and clean the machine, and check for any signs of wear or need for maintenance.

Matching accessories

The Pama AL-60 Boring Machine can be equipped with various accessories to expand its capabilities:

• Cutting Tools : Various types of tools can be mounted on the ISO 40 attachment to perform different operations.
• Measuring Devices : Measuring systems such as depth indicators and dial indicators can be added to increase accuracy.
• Fixtures : Additional clamps and support devices can be used to ensure a secure hold of the workpiece.

Formulas for Optimal Use

To obtain optimal performance from Pama AL-60, consider the following formulas:

• Cutting Speed ​​(Vc) : Vc = π × D × n / 1000

  • D = Tool diameter (mm)
  • n = Speed ​​(rpm)

• Feedrate (f) : f = Vc / (n × D)

• Cutting Depth : Determined based on the material and tool used.

Workable Materials

The Pama AL-60 boring machine can process various materials, including:

• Steel : Suitable for resistant and structural components.
• Aluminum : Ideal for lightweight, easy-to-work parts.
• Special Alloys : Can be used for materials that require specific mechanical properties.

Maintenance

To keep your Pama AL-60 Boring Machine in good condition, follow these tips:

• Lubrication : Check and refill lubricant levels regularly to ensure smooth operation of the axes and spindle.
• Periodic Check : Checks the alignment of the axes and the condition of the spindle. Make sure the guides and mechanisms are free of wear.
• Cleaning : Keep your machine clean and free of debris to avoid buildup that can affect accuracy.

Evaluation of used cars

When purchasing a used Pama AL-60, consider:

• Visual Inspection : Check the machine for signs of wear, structural damage or repairs made.
• Operational Test : Tests the machine to verify that all functions are operational and that there are no mechanical problems.
• Documentation : Make sure there are manuals and maintenance records available.

Sectors of Use

The Pama AL-60 boring machine is used in various industrial sectors:

• Mechanical Industry : For the production of precision components and the machining of complex pieces.
• Automotive Sector : Used in the processing of engine and transmission components.
• Aerospace Industry : For the production of high precision parts and for critical applications.

Advantages of Buying Used

Buying a used Pama AL-60 offers significant advantages:

• Reduced Cost : Lower price than a new machine, allowing you to obtain a high quality machine at a low cost.
• Immediate Availability : The used machine is often ready for use without long waiting times.
• Reliability : Proven, well-reputed model with a long history of reliable performance.

In conclusion, the Pama AL-60 Manual Boring Machine, with its robust specifications and proven reliability, represents an excellent choice for those looking for a used machine capable of offering high performance at an advantageous cost. With adequate maintenance and careful evaluation of the used machine, this machine can guarantee excellent durability and high quality results in mechanical processing.
