ICMA boring and marking machine mod. CS1

Price: 14.500,00 14500
Phone
Advertiser

Description

Technical data sheet: Coordinate boring machine ICMA San Giorgio Mod. CS1

Introduction

The ICMA San Giorgio Mod. CS1 coordinate marking boring machine is a precision machine tool designed to perform boring and marking operations with high accuracy. This model, produced in 1987, is equipped with a Heidenhain display that facilitates monitoring and adjustment of processes. The machine, in like new condition and complete with various equipment, can be viewed at the company.

General Features

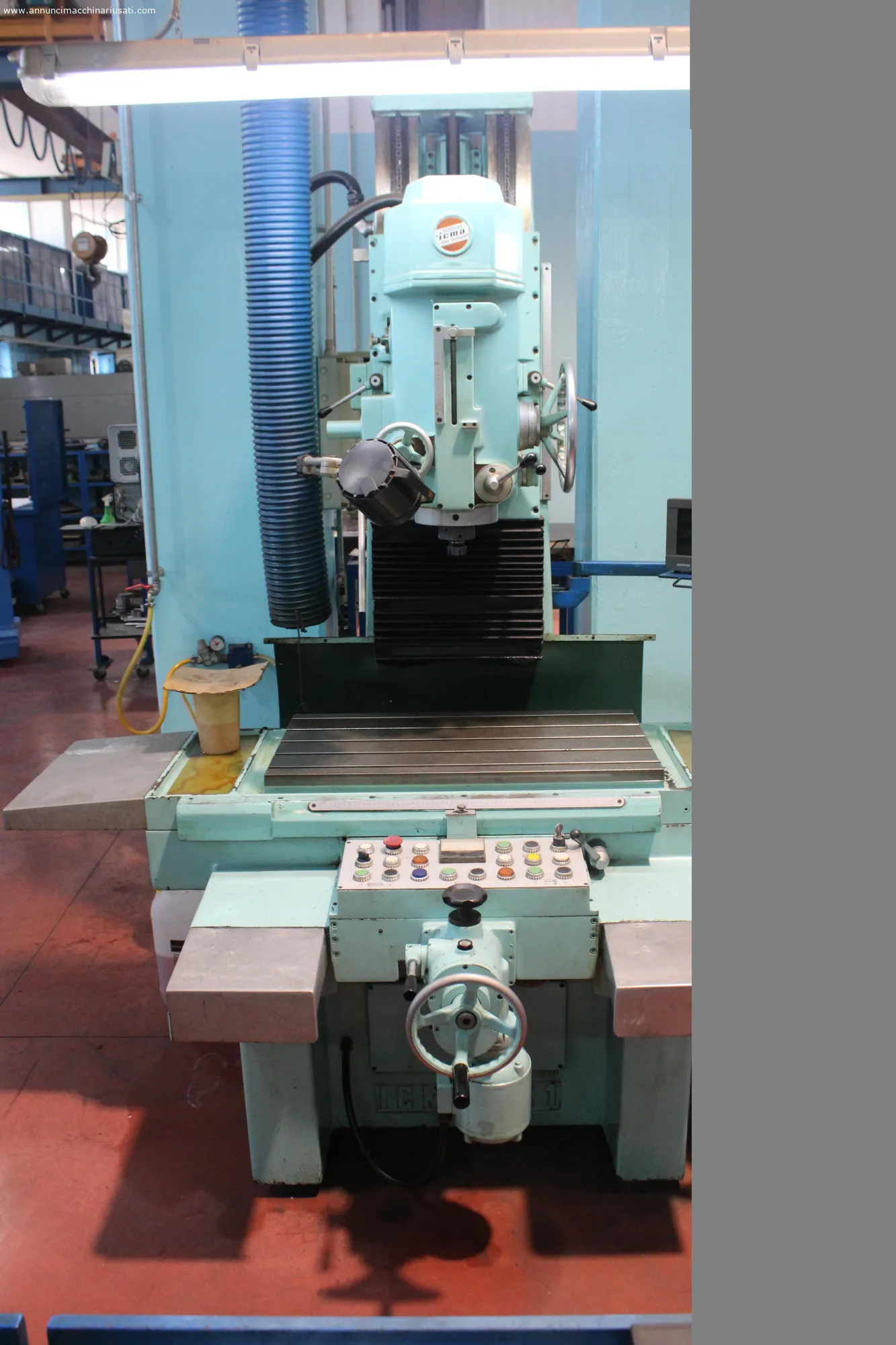

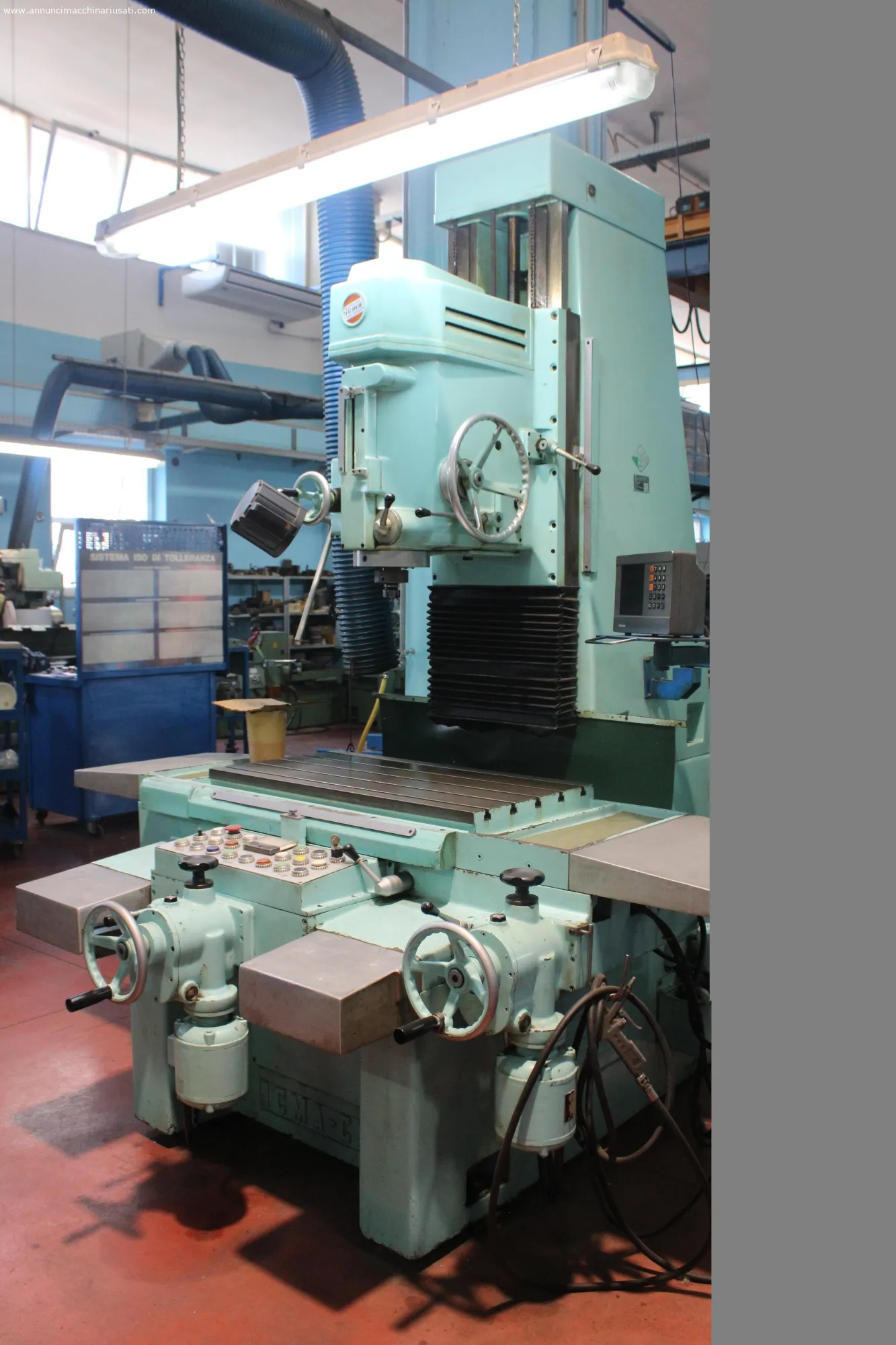

The ICMA San Giorgio Mod. CS1 is characterized by a robust structure that supports its precise machining operations. The machine is equipped with three main axes:

  • Longitudinal X axis : 600 mm
  • Transversal Y axis : 400 mm
  • Vertical Z Axis : 550 mm

These strokes guarantee considerable movement capacity and adaptability for various types of machining.

Components and Structure

The ICMA San Giorgio Mod. CS1 is composed of:

  • Basic Structure : Robust and designed to minimize vibrations and ensure stability during boring and marking operations.

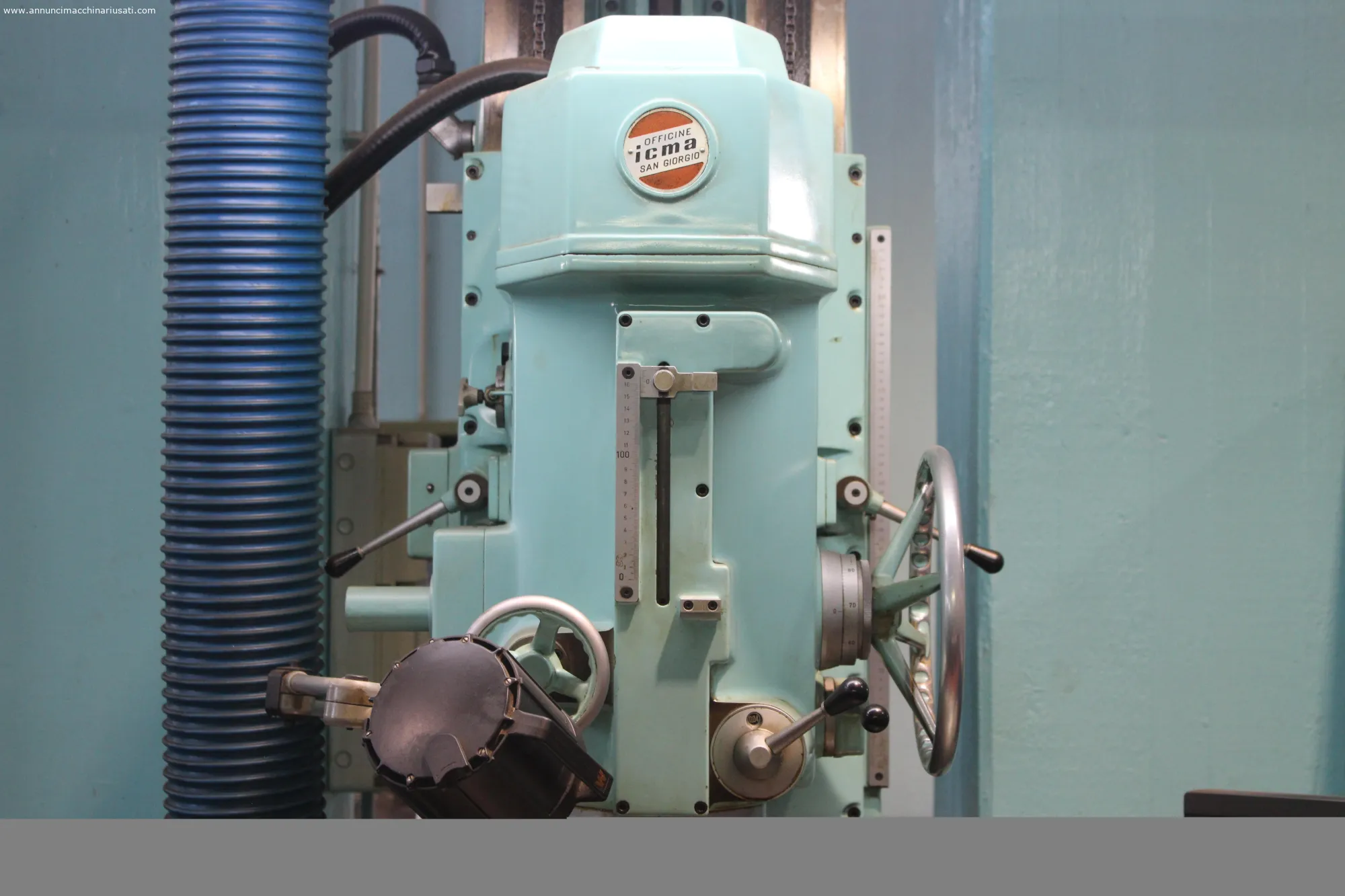

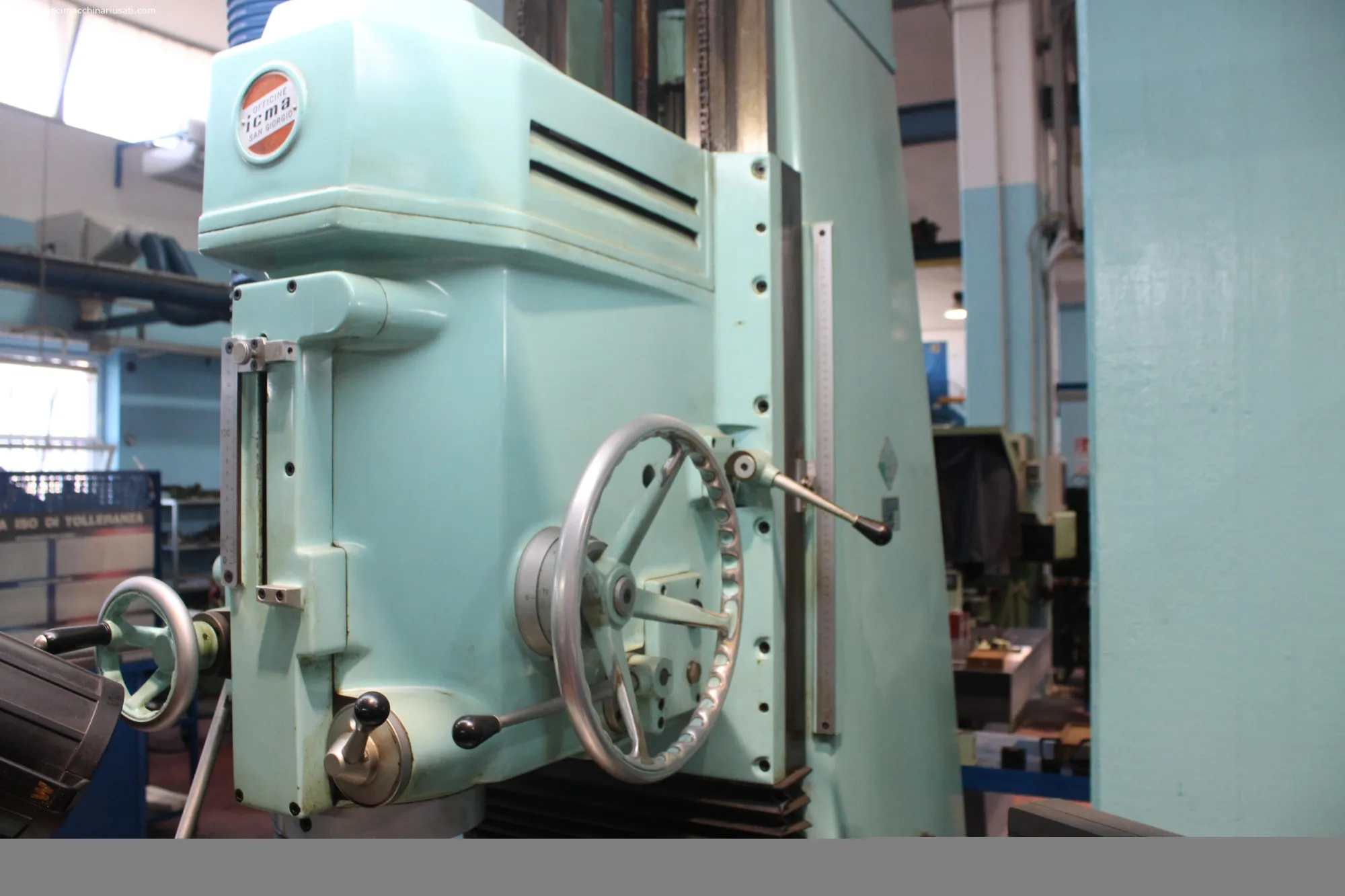

  • Work Head : Equipped with precision mechanisms to control boring and tracking with high accuracy.

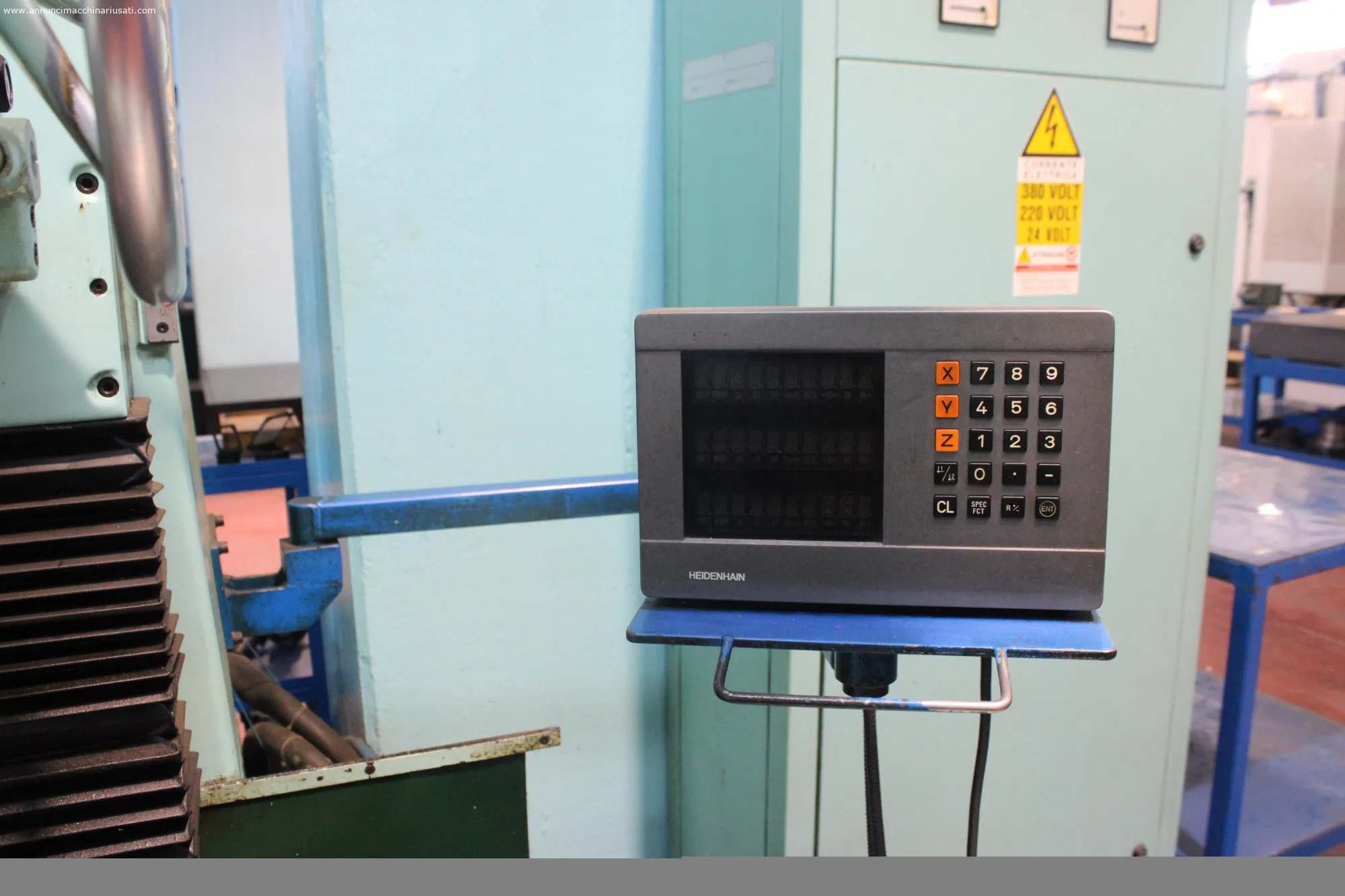

  • Heidenhain Viewer : Essential tool for viewing and precisely adjusting axis positions.

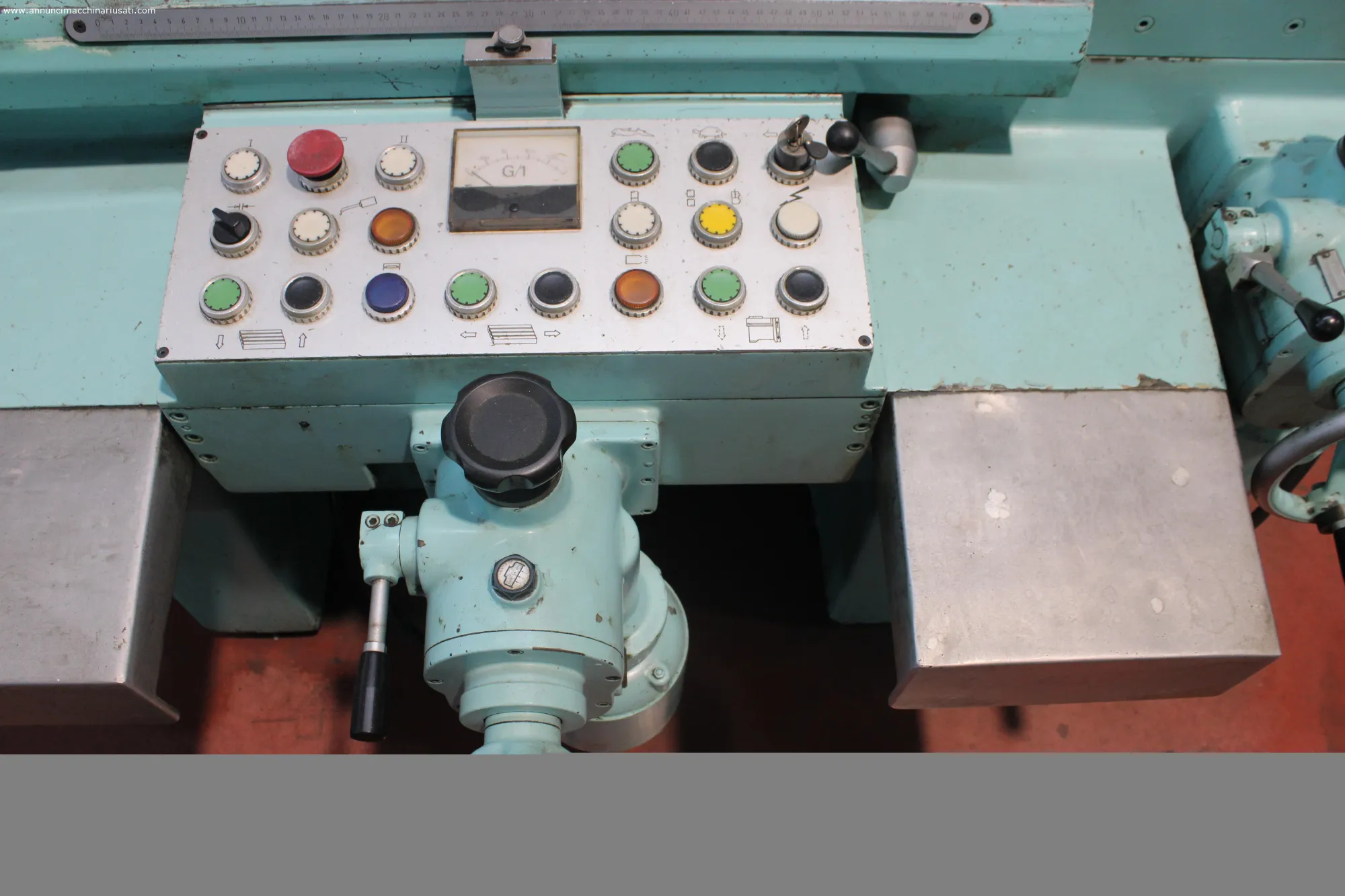

  • Control System : Complete with control panels and interfaces for managing operations.

Mechanical Characteristics

The main mechanical characteristics of the ICMA San Giorgio Mod. CS1 include:

  • Precision : High precision thanks to the control system and robust structure.
  • Stability : Excellent stability during operations thanks to the solid construction.
  • Reliability : The machine is designed for intensive use with reduced maintenance interventions.

Usage Procedure

The use of the ICMA San Giorgio Mod. CS1 involves the following steps:

  1. Preparation : Make sure the machine is in working order and that all equipment is mounted correctly.
  2. Adjustment : Use the Heidenhain viewer to set the coordinates and axis positions.
  3. Machining Operation : Start the machine and proceed with boring or scribing according to the specifications of the operation.
  4. Monitoring : Constantly check the work via the viewer to guarantee the precision of the work.

Matching accessories

The ICMA San Giorgio Mod. CS1 can be combined with various accessories to expand its capabilities:

  • Reamer Spindles : To perform reaming of different sizes.
  • Tape measures and measurers : For checking and regulating measurements.
  • Specialized Tools : For specific processes.

Formulas for Optimal Use

To optimize the use of the ICMA San Giorgio Mod. CS1, the following formulas are considered:

  • Cutting Speed ​​(Vc): Vc = π × D × n / 1000
    • D = Tool diameter (mm)
    • n = Speed ​​(rpm)
  • Feedrate (f) : f = Vc / (n × D)
  • Cutting Depth : Determined based on the material and tool used.

Workable Materials

The ICMA San Giorgio Mod. CS1 can process various materials including:

  • Steel
  • Aluminum
  • Copper
  • Special alloys

Maintenance

To keep the ICMA San Giorgio Mod. CS1 in excellent condition:

  • Lubrication : Regularly lubricate the axles and moving components.
  • Check : Periodically check the alignment of the axes and the correct functioning of the display.
  • Cleaning : Keep the machine clean and free of debris to avoid premature wear.

Evaluation of used cars

To determine if your used ICMA San Giorgio Mod. CS1 is in good condition:

  • Visual Inspection : Check the integrity of the structure and components.
  • Operation Test : Perform a test to verify accuracy and general operation.
  • Documentation : Check the availability of manuals and maintenance documentation.

Sectors of Use

The ICMA San Giorgio Mod. CS1 is used in various sectors including:

  • Mechanical Industry : For the production of precision components.
  • Aerospace Sector : For working on aircraft and space vehicle parts.
  • Automotive sector : For the production of automotive components.

Advantages of Buying Used

Buying a used ICMA San Giorgio Mod. CS1 offers several advantages:

  • Reduced Cost : Lower price than a new machine.
  • Immediate Availability : Possibility of using the machine immediately after purchase.
  • Reliability : Tested and reliable model, with a good history of use.

The ICMA San Giorgio Mod. CS1 coordinate marking boring machine, complete with Heidenhain display and in excellent condition, represents an excellent choice for those looking for precision and reliability at an affordable cost.


Price €14,500.00
