Technical Data Sheet: Alesamonti Boring Machine Model MM60 CNC with BI Head and Spindle

Introduction

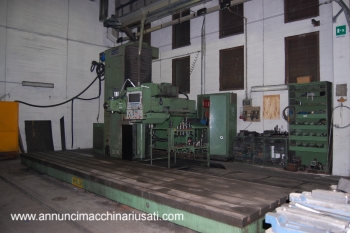

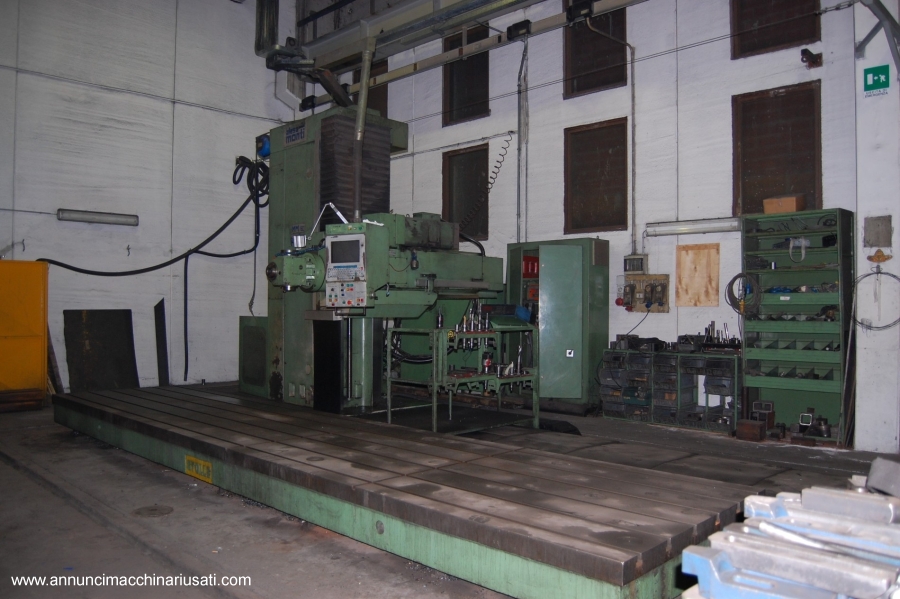

The Alesamonti Model MM60 CNC boring machine, equipped with the SELCA S 1200 control system and a BI spindle head, is a precision machine tool designed to perform complex, high-precision machining on large components. This 1990 model is a solid choice for shops that need advanced milling and boring capabilities.

General Features

The Alesamonti MM60 CNC boring machine is characterized by technical specifications that highlight its capabilities and performance:

• Table measurements : 1500 mm x 7000 mm
• X Axis Travel : 5000 mm
• Vertical stroke : 2000 mm
• Slide travel : 900 mm
• Spindle connection : ISO 50

These generous dimensions make the Alesamonti MM60 CNC suitable for machining large components and complex boring and milling operations.

Components and Structure

The machine is made up of several main components:

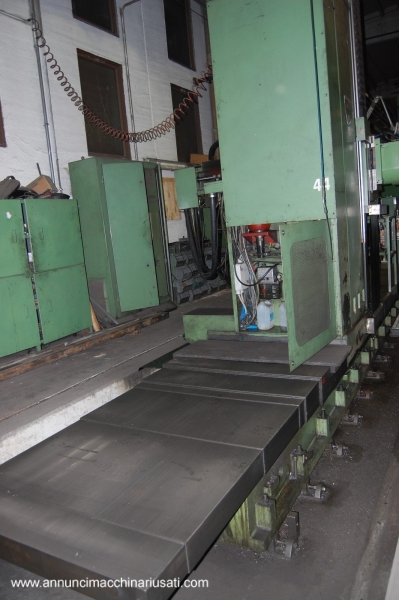

• Work Table : The 1500mm x 7000mm work table provides ample space to support large workpieces during machining.
• X Axis and Vertical Travel : The X axis travel of 5000 mm and the vertical travel of 2000 mm allow great freedom of movement and precision in processing.
• Slide Stroke : With a stroke of 900 mm, the slide allows further adjustments for more precise machining.

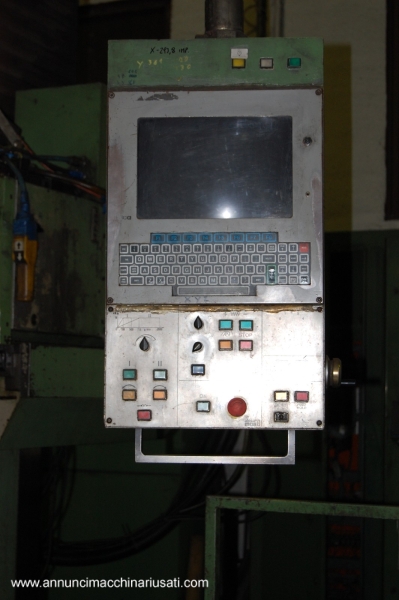

• SELCA S 1200 Control System : The SELCA S 1200 CNC numerical control system manages the machine's operations, allowing advanced programming and high precision.

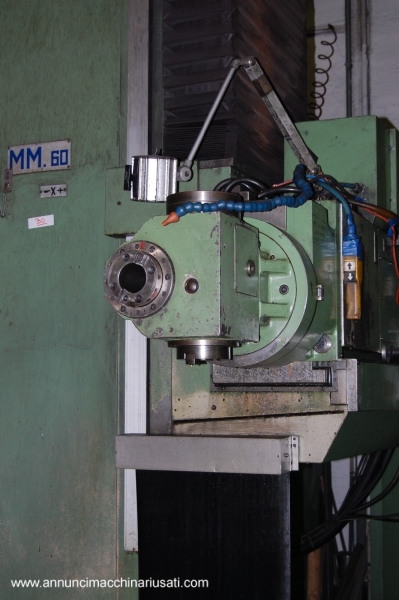

• BI Spindle Head : The BI Spindle Head is designed for stability and precision during machining, with an ISO 50 spindle connection for the use of tools of variable sizes.

Mechanical Characteristics

The mechanical characteristics of the Alesamonti MM60 CNC are:

• Precision : The CNC system and the BI spindle head contribute to precise and uniform machining.
• Robustness : Built with high quality materials and designed to withstand heavy loads and intensive use, the Alesamonti MM60 CNC is a robust and durable machine.
• Versatility : The combination of long stroke and wide work table makes it suitable for a wide range of industrial applications.

Usage Procedure

To use the Alesamonti MM60 CNC, follow these steps:

1. Preparation : Make sure the machine is properly installed and that all components are in good condition.
2. Setup : Use the SELCA S 1200 control system to program operations. Enter the part dimensions and processing specifications.
3. Positioning : Fix the piece on the work table and adjust the positions of the axes and the slide as needed.
4. Execution : Start the machine and monitor the machining process through the CNC system. Make any adjustments necessary to maintain accuracy.
5. Final Control : Check the quality of the machined piece and ensure that it meets the required specifications.

Matching accessories

The Alesamonti MM60 CNC can be combined with various accessories to expand its capabilities:

• Spindle Tools : Different tools compatible with the ISO 50 holder can be used to perform different operations.
• Additional Measurement Systems : To improve precision and monitor tolerances during machining.
• Support Devices : Accessories such as additional supports and vices can be used to better secure the pieces during processing.

Formulas for Optimal Use

To optimize the use of the Alesamonti MM60 CNC, apply the following formulas:

• Cutting Speed ​​(Vc): Vc = π × D × n / 1000
  • D = Tool diameter (mm)
  • n = Speed ​​(rpm)
• Feedrate (f) : f = Vc / (n × D)
• Cutting Depth : Determined based on the component material and the tool used.

Workable Materials

The Alesamonti MM60 CNC can machine a variety of materials, including:

• Steel : For robust and durable components.
• Aluminium : For light and easily workable parts.
• Special Alloys : For applications that require particular materials with specific properties.

Maintenance

To keep your Alesamonti MM60 CNC in good condition, follow these tips:

• Lubrication : Make sure all moving components are regularly lubricated to prevent wear.
• Periodic Check : Periodically checks the alignment of the axes and the correct functioning of the CNC system.
• Cleaning : Keep the machine clean and free of debris to ensure optimal operation.

Evaluation of used cars

To evaluate whether a used Alesamonti MM60 CNC is in good condition, consider:

• Visual Inspection : Check the machine for signs of wear, damage or maintenance not carried out.
• Test Run : Perform a test run to ensure the machine is functioning properly and that the CNC system is responding as expected.
• Documentation : Check for instruction manuals and maintenance records.

Sectors of Use

The Alesamonti MM60 CNC is used in various industrial sectors, including:

• Automotive Industry : For the processing of large mechanical components.
• Mechanical Industry : For the production of precision parts and structural components.
• Aerospace Sector : For high precision machining on critical and complex parts.

Advantages of Buying Used

Buying a used Alesamonti MM60 CNC offers several advantages:

• Lower Cost : The price of a used machine is generally cheaper than purchasing a new machine.
• Immediate Availability : You can get your used machine quicker than a new one.
• Reliability : The Alesamonti MM60 CNC is a well-proven and reliable model, with a long history of excellent performance.

In conclusion, the Alesamonti Model MM60 CNC boring machine, with the SELCA S 1200 system and the BI spindle head, represents an excellent choice for those seeking precision and advanced machining capabilities at an affordable cost. With its robust and versatile features, it is suitable for a wide range of industrial applications and offers significant advantages over purchasing a new machine.
