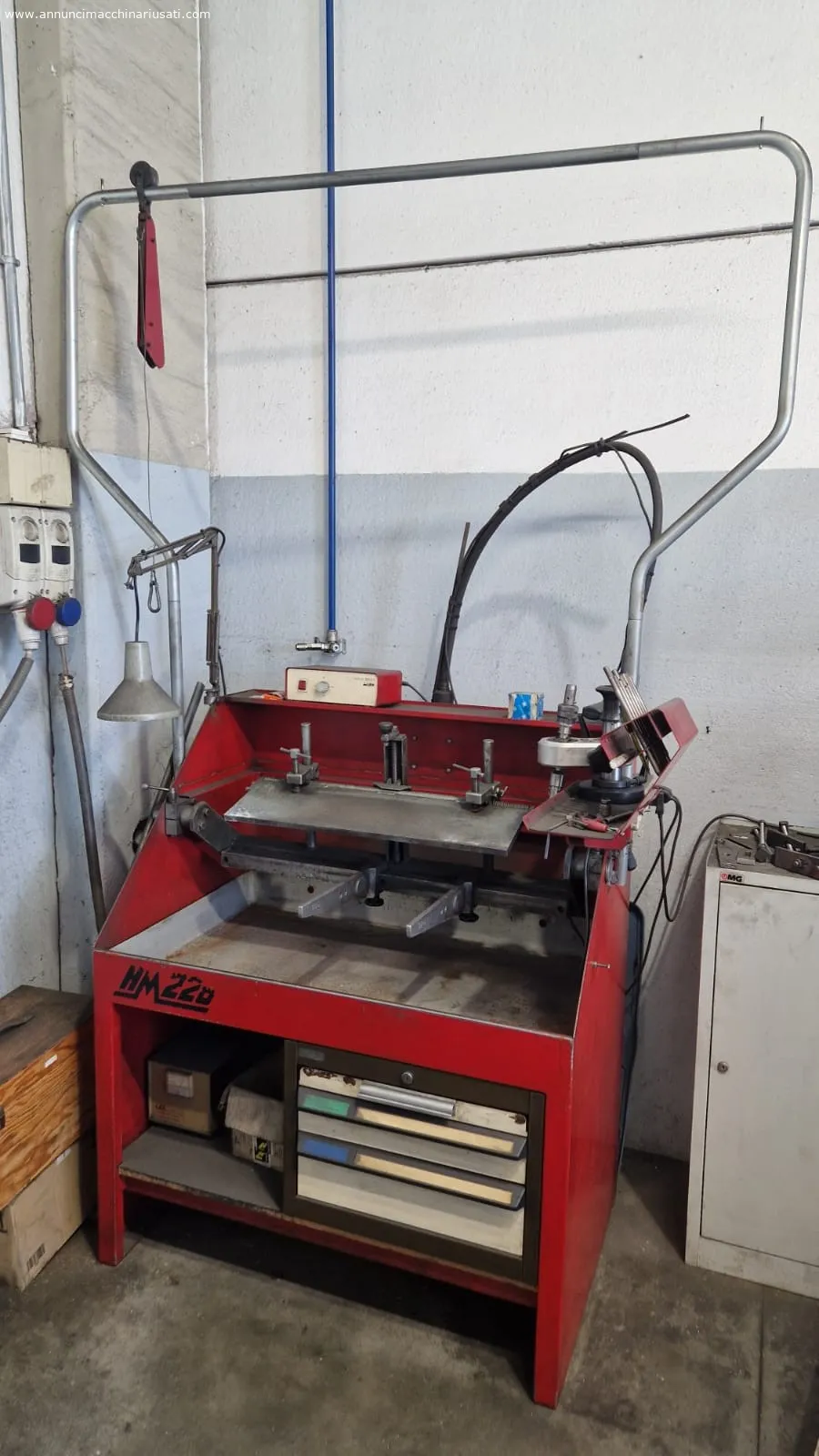

Technical Data Sheet: Mira Centronic Valve Seat Boring Machine Complete with HM228 Bench and Accessories
Introduction
The Mira Centronic valve seat boring machine, complete with HM228 bench and accessories, is a precision machine tool designed for machining valve seats and similar components. This used model is particularly appreciated for its reliability and high performance. The Mira Centronic is a versatile and robust machine, ideal for workshops and laboratories that require precision in the processing of mechanical parts.
General Features
The Mira Centronic is a machine with technical specifications that ensure high quality results:
- X Axis Travel : 450 mm
- Y Axis Travel : 250 mm
- Z Axis travel : 300 mm
These dimensions allow medium-sized valve seats to be machined with high precision.
Components and Structure
The Mira Centronic is made up of several main components:
- Base Structure : The base of the machine is sturdy and designed to reduce vibrations, ensuring stability during processing.
- Working Head : Includes the mandrel and support mechanisms for machining the valve seats.
- Control System : Equipped with a control panel that allows precise setting of processing operations.
- HM228 Bench : A sturdy and stable workbench, designed to accommodate and support work with precision.
- Accessories : The machine comes complete with various accessories, such as chucks, stands and measuring instruments, to extend its operational capabilities.
Mechanical Characteristics
The mechanical characteristics of the Mira Centronic include:
- Precision : Thanks to accurate design and high quality components, the Mira Centronic guarantees precise machining with tight tolerances.
- Robustness : Built to withstand wear and tear and intensive working conditions, the Mira Centronic is designed to last over time.
- Versatility : The availability of accessories allows the machine to be adapted to different valve seat machining applications.
Usage Procedure
To use the Mira Centronic, follow these steps:
- Preparation : Make sure the machine and the HM228 bench are in good condition and that all accessories are correctly installed.
- Adjustment : Use the control panel to set the coordinates and machining operations according to the required specifications.
- Machining : Place the component on the HM228 bench and start the machine to machine the valve seats.
- Monitoring : During the process, check the progress and make any adjustments to maintain the desired accuracy.
Matching accessories
The Mira Centronic can be combined with various accessories to expand its capabilities:
- Additional Spindles : To adapt to components of different sizes and configurations.
- Additional Supports : To improve the stability of the piece during processing.
- Measuring Tools : To check tolerances and dimensions with high precision.
Formulas for Optimal Use
To optimize the use of Mira Centronic, apply the following formulas:
- Cutting Speed (Vc): Vc = π × D × n / 1000
- D = Tool diameter (mm)
- n = Speed (rpm)
- Feedrate (f) : f = Vc / (n × D)
- Cutting Depth : Determined based on the component material and the tool used.
Workable Materials
The Mira Centronic can process various materials, including:
- Steel : For strong and durable valve seats.
- Aluminium : For light and easily workable components.
- Special Alloys : For applications requiring specific materials.
Maintenance
To keep your Mira Centronic in tip-top condition, follow these tips:
- Lubrication : Regularly lubricate moving components to prevent wear.
- Periodic Check : Checks the alignment of the axes and the correct functioning of the machine.
- Cleaning : Keep the machine and HM228 bench clean and free of debris to avoid operational problems.
Evaluation of used cars
To evaluate whether a used Mira Centronic is in good condition, consider:
- Visual Inspection : Check the structure and components for signs of wear or damage.
- Operation Test : Perform a test to ensure that the machine operates correctly and accurately.
- Documentation : Check the availability of manuals and maintenance documentation for correct management.
Sectors of Use
The Mira Centronic is used in several industrial sectors, including:
- Automotive Industry : For the processing of valve seats and engine components.
- Mechanical Industry : For the production of precision parts and cylindrical components.
- Aerospace Sector : For high precision machining on critical components.
Advantages of Buying Used
Buying a used Mira Centronic offers various advantages:
- Lower Cost : The price of a used machine is generally lower than a new machine, making the purchase more accessible.
- Immediate Availability : You can often get your used machine quicker than buying a new one.
- Reliability : The Mira Centronic is a proven and reliable model, with a good reputation for its performance over time.
In conclusion, the Mira Centronic valve seat boring machine, complete with HM228 bench and accessories, represents an excellent choice for those looking for precision and robustness at a low cost. With its advanced features and the possibility of customization through accessories, this used machine can satisfy a wide range of processing needs.
