Parker DFplus Series Directional Proportional Valve

Price: 590,00 590
Phone

Description

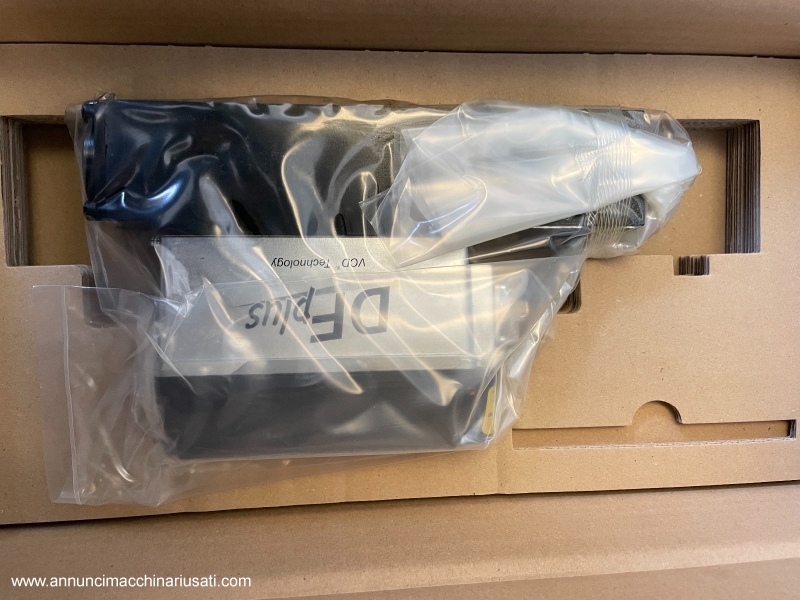

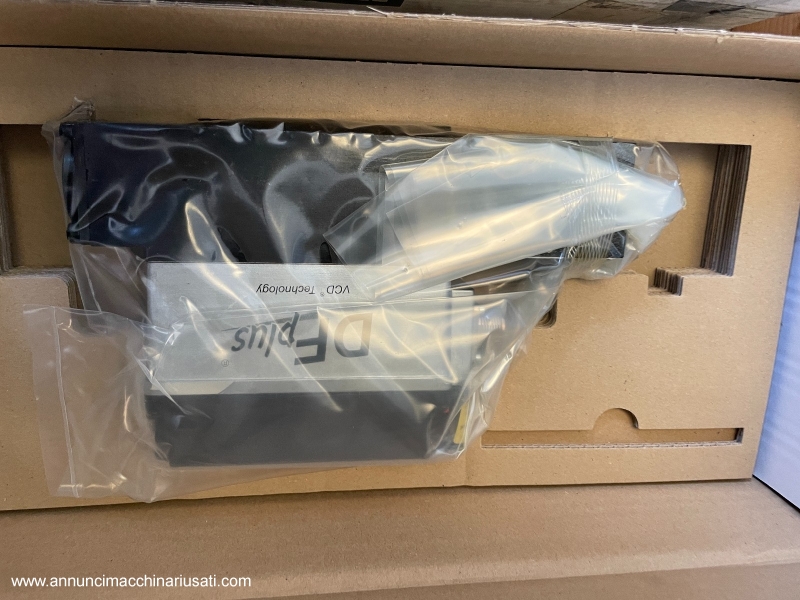

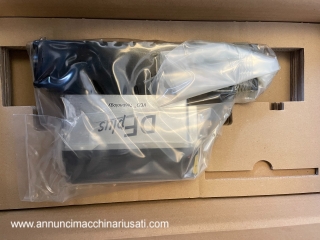

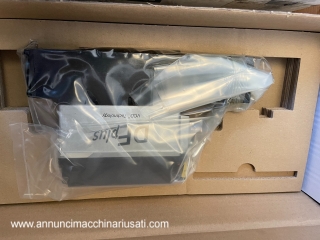

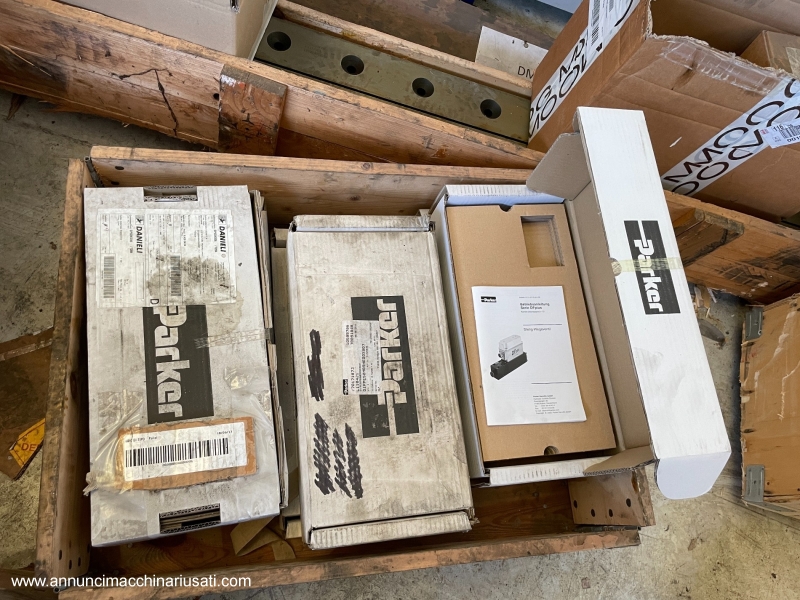

Parker DFplus Series Directional Proportional Valve NEW PACKED PRICE 590 EURO

Parker DFplus Series Directional Proportional Valve

Brand and Model : Parker DFplus Series

General Description

The Parker DFplus series includes high-dynamic, high-precision proportional directional valves designed to control hydraulic flows in complex industrial applications. Parker's DFplus valves are known for their fast response capability and precise pressure and speed control. Major models include pilot operated valves (such as D30FP) and direct operated valves (such as D1FP, D3FP), each suitable for different system configurations.

Main Components

  • VCD® Actuator : Patented technology that allows precise cursor movement.
  • Slider and Coil : Allow proportionally adjustable flow control.
  • Integrated Electronics : Allows direct communication with the main control system, often via modern interfaces such as EtherCAT.
  • Mounting : Suitable for NG06 (CETOP 03) and NG10 (CETOP 05) interfaces.
  • Installation Position : Can be installed in any orientation for maximum flexibility.

Dimensions and Mechanical Specifications

  • Mounting Dimensions : NG06 (CETOP 03) or NG10 (CETOP 05).
  • Maximum Flow : Varies depending on the model; direct models can achieve high flows with precise control.
  • Maximum Operating Pressure : Typically up to 350 bar, but detailed specifications depend on the model.
  • Operating Temperature : From -20°C to +80°C, depending on the construction materials.

Usage Procedure

  1. Installation : Mount the valve using the NG06 or NG10 interfaces, ensuring the system is free of impurities.
  2. Electrical Connection : Connect the integrated electronics to the main control system.
  3. Calibration : Configure the control parameters through the control system.
  4. Operation : Use the valve to adjust hydraulic flow to specific application needs.

Compatible Accessories

  • Flow Controller : For fine adjustment of flow parameters.
  • Position sensors : To monitor and correct the cursor position in real time.
  • EtherCAT interfaces : For fast communication with the main system.

Sectors of Use

  • Manufacturing Industry : For the control of hydraulic presses and molding machinery.
  • Industrial Automation : Applications requiring precise control of motion and force.
  • Construction Machinery : For use in the hydraulic systems of heavy machinery.

Maintenance

  • Regular Cleaning : Remove impurities and contamination from hydraulic oil.
  • Periodic Inspection : Check the correct functioning of the actuator and integrated electronics.
  • Checking the Electrical Connections : Make sure there are no loose or damaged connections.

How to Evaluate a Good Used Car

  1. Condition of Electronics : Verify that the integrated electronics are functional and free of damage.
  2. No Leaks : Inspect the valve for leaks or physical damage.
  3. Control Accuracy : Test the valve under operating conditions to ensure it maintains the required accuracy.

Why It's Better to Buy Used

  • Reduced Cost : Used valves offer significant savings compared to new ones.
  • Proven Reliability : If well maintained, Parker DFplus valves maintain performance over time.
  • Ease of Integration : Availability of spare parts and accessories on the market.

This data sheet should give you a detailed insight into the capabilities and use of Parker DFplus Series directional proportional valves as used machines. If you would like further details or need specific assistance, please let me know!




Specific details

Continent Europe
Nation Italy
Veneto region
Province of Venice

Advertisement details

Ad ID 100392
