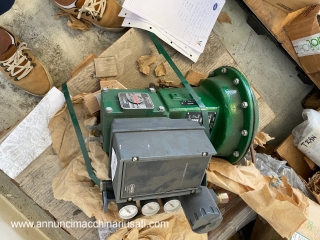

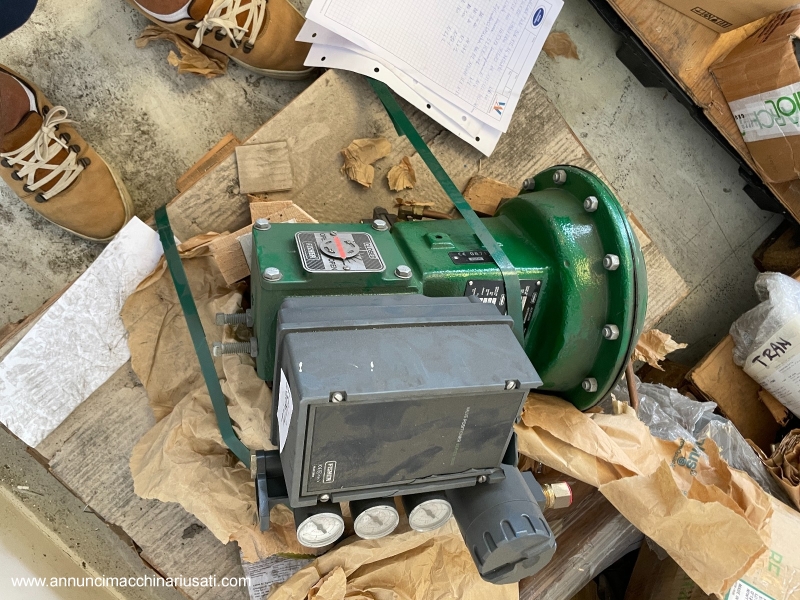

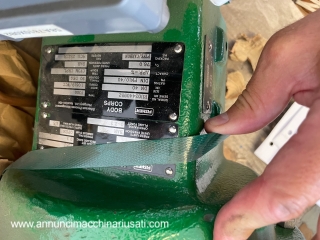

FISHER V300 rotary control valves NEVER USED DN 40 PN 10/40 FIND ALL THE DATA ON THE PHOTOS ### **Fisher V300 Rotary Control Valve** The **Fisher V300 rotary control valve** is a mechanical device used for regulate the flow of fluids in an industrial system. It is designed to offer precise control, robustness and reliability, making it ideal for applications in various industrial sectors. #### **Configuration** The Fisher V300 is a rotary valve, configured primarily as an **eccentric ball valve** or **butterfly valve**, designed to handle the flow of fluids, gases, or steam. Its typical configuration includes: - **Valve Body**: Made of corrosion-resistant and high-pressure resistant materials, such as stainless steel or special alloys. - **Eccentric Ball or Rotating Disc**: The control element that rotates inside the valve to regulate the passage of fluid. - **Actuator**: A device that provides the energy needed to move the ball or disk, usually pneumatic, electric or hydraulic. - **Seals and Gaskets**: They ensure an airtight seal and prevent leaks. - **Stem and Bearings**: Connect the actuator to the control element, allowing precise rotation. #### **When Used** The Fisher V300 is mainly used in: - **Flow Control Processes**: When it is necessary to precisely regulate the flow of liquids, gases or steam in an industrial plant. - **Environments with High Pressures and Temperatures**: Used in extreme operating conditions, thanks to its ability to resist high pressures and temperatures. - **Applications Requiring Hermetic Seal**: Essential in processes where fluid loss could cause safety problems or inefficiency. #### **Advantages Compared to Other Systems** - **Precision in Control**: The rotary valve offers very precise flow control compared to linear or globe valves. - **Durability**: Thanks to high-quality materials and robust construction, the Fisher V300 is highly resistant to wear and corrosion. - **Operational Efficiency**: Reduces pressure drops and improves system efficiency compared to other types of valves. - **Easy Maintenance**: The rotary valve configuration facilitates maintenance and replacement of parts subject to wear. #### **Mechanical Parts** The main mechanical parts of the Fisher V300 include: - **Valve Body**: The casing that contains the control element and protects the internal components. - **Eccentric Sphere or Disc**: The control element which, by rotating, regulates the opening and closing of the flow. - **Actuator**: It can be pneumatic, electric or hydraulic, and provides the movement necessary to operate the valve. - **Stem**: An axis that connects the actuator to the control element. - **Bearings**: They support the stem and reduce friction during rotation. - **Gaskets and Seals**: Components that prevent leaks and guarantee the tightness of the system. #### **Mechanical Processes to Build It** The construction of the Fisher V300 valve involves various processes: - **Design and Engineering Analysis**: The valve is designed to withstand specific loads, pressures and temperatures. - **Material Processing**: Parts such as the valve body, the eccentric ball or the disc are made using precision mechanical processes, such as turning, milling, and forging. - **Surface Treatments**: Critical components are treated to improve resistance to corrosion and wear. - **Assembly**: Parts are assembled with tight tolerances to ensure perfect functionality. - **Seal and Performance Test**: The assembled valve is tested to verify its hermetic seal and flow control precision. #### **Sectors of Use** The Fisher V300 is widely used in various sectors: - **Petrochemical Industry**: For controlling the flow of oil, gas and chemicals. - **Power Plants**: For the management of steam and other fluids in energy generation processes. - **Water Treatment Plants**: Used to regulate the flow of water and chemical reagents. - **Pharmaceutical and Food Sector**: Where precise control of the flow of fluids is necessary to guarantee product quality. #### **Matched Components** The Fisher V300 valve can be paired with: - **Pneumatic, Electric or Hydraulic Actuators**: For valve automation and remote control. - **Positioners**: Devices that precisely adjust the valve position based on control signals. - **Control Systems**: Such as DCS (Distributed Control Systems) or PLC (Programmable Logic Controllers) to integrate the valve into an automatic control system. - **Pressure and Temperature Sensors**: To monitor and regulate valve operation in real time. #### **Usable Controls** The Fisher V300 can be controlled by: - ​​**Manual Control**: Using a lever or handwheel, for simple applications. - **Pneumatic Control**: Using a pneumatic actuator that responds to air pressure signals. - **Electrical Control**: With an electric actuator that responds to electrical or electronic signals. - **Automation via PLC or DCS**: Integrated into an automatic control system, where the valve responds to control signals to maintain the process within the desired parameters. #### **Why It's Better to Buy Used** Buying a used Fisher V300 valve can be advantageous for several reasons: - **Lower Cost**: New valves can be expensive; Buying used allows you to save significantly without sacrificing quality. - **Durability**: These valves are built to last decades; a used valve, if well maintained, can function reliably for many years. - **Proven Reliability**: A used valve has already proven its reliability in previous applications. - **Customization and Overhaul**: It is possible to customize or overhaul a used valve to adapt it to the specific needs of the new system. - **Immediate Availability**: Often a used valve is available immediately, avoiding the delivery times of new valves. ### **Conclusion** The Fisher V300 Rotary Control Valve is an excellent choice for precise and reliable flow control in many industries. Purchasing a used model offers a cost-effective option, maintaining high quality and reliability, thanks to the robustness and long useful life of these devices.
