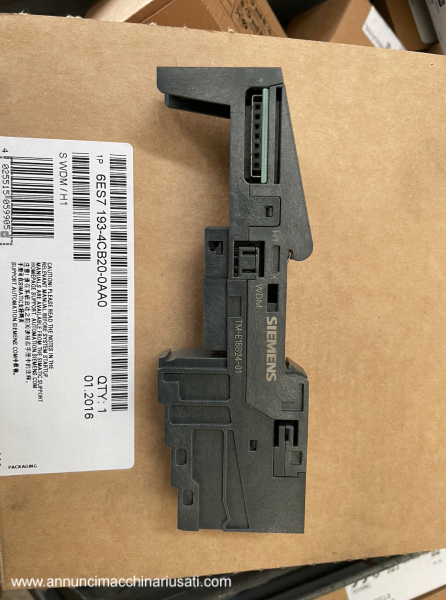

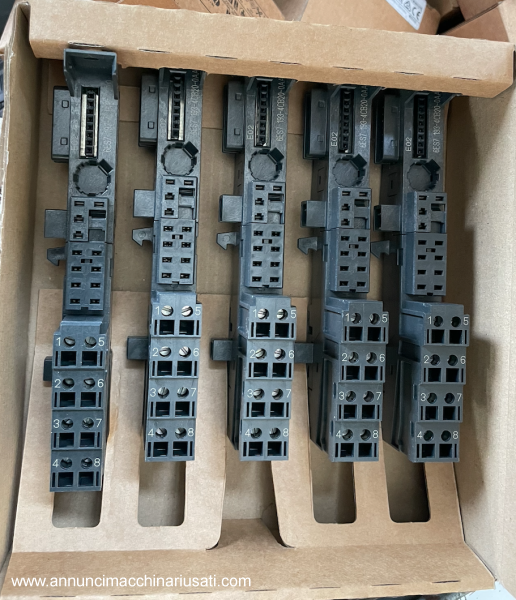

Siemens 6ES7 193-4CB20-0AA0 WDM / H1 Simatic DP Modules, 5 TERMINALS TM-E15S24-01 FOR ET 200S MODULES

The Siemens 6ES7 193-4CB20-0AA0 is a versatile device used mainly in industrial control systems, as part of the SIMATIC . It is an interface module for distributed I/O systems that connects with peripherals, facilitating communication between a system's sensors and actuators and the central controller.

Appearance and Design

Visually, this module has a compact, rectangular format, with a robust industrial plastic construction that ensures long life even in harsh industrial environments. The device is equipped with connectors for power and communication, with slots for connecting to input/output modules. The color is generally dark grey, typical of Siemens SIMATIC line devices.

Components and Measurements

The dimensions of the Siemens 6ES7 193-4CB20-0AA0 are compact, making it easy to install in small spaces within electrical cabinets. This interface module is compatible with various connectors and modules to expand the communication and control capabilities of your system. It includes standardized input and output connectors for integration with other Siemens devices.

Mechanical Characteristics

From a mechanical point of view, the module is designed to operate in industrial environments, with protection against overvoltages and electromagnetic disturbances. The operating temperature can vary between -20°C and +60°C, while the electrical insulation guarantees safe communication between the various components of the system.

Usage Procedure

In terms of usage, the Siemens 6ES7 193-4CB20-0AA0 connects to the main controller and peripheral devices via fieldbuses, such as PROFIBUS or PROFINET . During installation, the module is connected to the rack via a DIN rail and configured through the Siemens TIA Portal programming software. The user can then define which peripheral devices to monitor or control.

Matching accessories

The module is compatible with a wide range of Siemens accessories, including power terminals, expansion modules and fieldbus connectors. These additional components extend its functionality, allowing greater flexibility in complex installations.

Formulas and Usage Parameters

To optimize the use of the module, a common formula to consider concerns communication speed. For example, the bus cycle time is calculated as a function of the length of the cable and the number of connected devices: Tcycle=(Cable length+Number of devices)×Transmission timeT_{cycle} = (Length_{cable} + Number_{devices}) \times Transmission time $T$ c ycle = $($ $Cable$ $length$ $+$ $N$ $u$ $m$ $b$ e $r$ o f transmissions ) $\times$ $T$ e $m$ $p$ $o$ t r​​​​​​​​​​​​​​​​ a s mi ss i o nWhere the .

Workable Materials and Maintenance

The 6ES7 193-4CB20-0AA0 does not process materials directly, but is designed to be an integral part of systems that monitor and control processes in sectors such as industrial automation. Maintenance of this device is based on regular monitoring of the diagnostic software to ensure correct system operation. Periodic checks of connectors and wiring are recommended.

Evaluation of a Good Used Car

To understand if the Siemens 6ES7 193-4CB20-0AA0 is in good condition, you need to check for any physical damage such as cracks or worn connectors. Another important element is checking the hours of use and the possible need for software updates to ensure compatibility with the most recent systems.

Sectors of Use and Advantages of Purchasing Used

This Siemens module is widely used in industries such as industrial automation, process control, manufacturing and robotics. Buying used is convenient because these devices are designed for a long life and often, even when used, they still work perfectly, representing a low-cost option for upgrading or expanding an existing system.
