Technical data sheet of the Steton Mod. C300 Wood Combiner

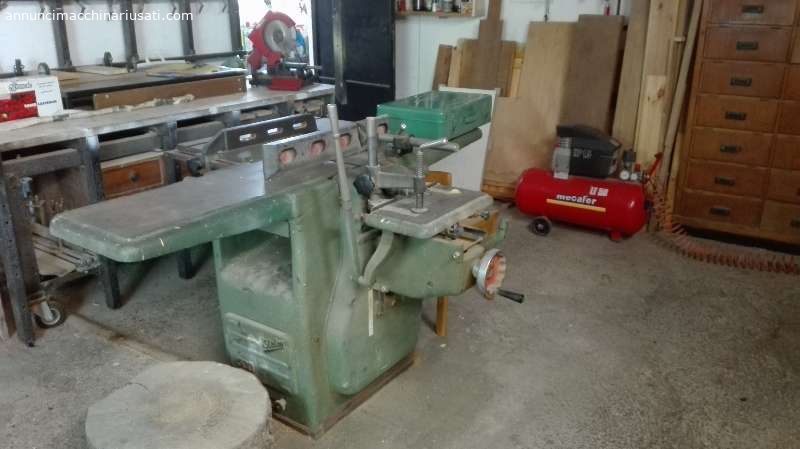

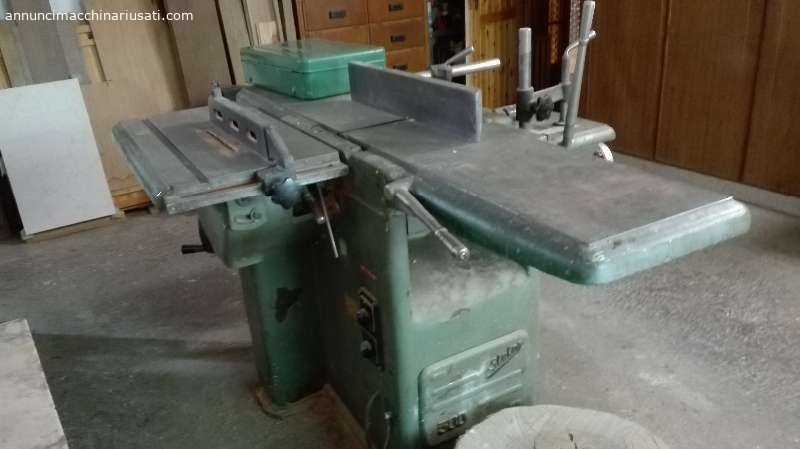

1. Introduction to the Combined Steton Mod. C300

The Steton Mod. C300 woodworking machine is a high quality used machine designed for versatile woodworking. This machine combines multiple functions in a single unit, making it ideal for woodshops and workshops that need efficiency and precision in their daily operations. The Steton Mod. C300 is appreciated for its robustness and ability to manage different processes with precision.

2. Construction and Components

The combined Steton Mod. C300 is built with high quality and robust components. Here is a detailed overview of its components and main features:

• Structure and Materials:

  • Worktops : The worktops are made of high quality cast iron, designed to offer stability and precision during work.
  • Guide and Trolley : Includes a squaring trolley with a stroke of 800 mm, designed to ensure smooth and precise movements of the pieces of wood.

• Main Components:

  • Surface planer:

    • Top dimensions : 1600 mm x 300 mm.
    • Knives : The planer is equipped with 3 knives for uniform and precise processing.

  • Thickness Planer / Spindle Moulder / Circular Saw / Mortiser:

    • Spindle moulder:
      • Shaft Diameter : 30 mm, compatible with a wide range of tools and cutters.
    • Circular saw:
      • Blade Diameter : Specification not provided, but generally up to 315 mm.
      • Blade inclination : Adjustable to make angular cuts.

  • Engines:

    • Number : 2 engines, designed to guarantee power and reliability during work operations.
    • Power supply type : Three-phase 220/380 V, suitable for use in professional environments.

3. Procedure for Use

1. Preparation:

   • Make sure the machine is placed on a stable and level surface.
   • Check that the machine is correctly connected to the three-phase electrical network.

2. Setting:

   • Adjust the work surfaces and guides according to the processing needs. Use the handwheels and adjustments to set the machine for flush planing, thickness planing, circular saw, moulder or mortiser.

3. Loading and Operation:

   • Place the piece of wood on the worktops and secure it if necessary.
   • Turn on the machine and select the desired function. Adjust settings such as cutting height, forward speed and blade angle.
   • For the surface and thickness planer, use the guides and safety devices to ensure precise and safe work.

4. Cleaning and Maintenance:

   • After use, remove chips and dust from worktops and guides.
   • Regularly lubricate the moving parts and check the wear of the blades and knives.
   • Check the adjustments and make sure all parts are secure and functioning.

4. Matching Accessories

• Extension Tables : To handle longer, heavier pieces of wood.
• Precision Guide : To improve the precision of cuts and processes.
• Special Tools : Specific cutters, blades and tips to expand the machine's capabilities.

5. Mathematical Formulas for Optimal Use Parameters

• Rotation Speed ​​(v) : Calculated with the formula v=π⋅D⋅n60v = \frac{π \cdot D \cdot n}{60} $v$ $=$ 60 π ⋅ D ⋅ n ​, DD $D$ is the diameter of 'shaft and nn $n$ is the rotation speed in revolutions per minute.
• Removal Capacity (C) : Determined by the engine power and the machine's ability to handle the material.

6. Workable Materials

The combined Steton Mod. C300 is designed to process various wooden materials, including:

• Solid Wood : Ideal for the production of furniture and structural components.
• Plywood and MDF : For joinery and light construction applications.

7. Maintenance

To keep the combined Steton Mod. C300 in excellent condition:

• Lubrication : Apply lubricant to the moving points and guides regularly.
• Cleaning : Remove chips and dust after each use.
• Inspection : Check the wear of the blades, cutters and moving parts. Replace worn or damaged parts.
• Alignment : Check and adjust the alignment of working parts to ensure accuracy.

8. Evaluation of Used Equipment

When purchasing a used Steton Mod. C300 combo, consider:

• General Condition : Inspect the machine for signs of wear and malfunctions.
• Operation : Test all machine functions to ensure they operate properly.
• Documentation : Request maintenance documentation and any repairs carried out.

9. Sectors of Use

The combined Steton Mod. C300 is ideal for:

• Joineries and Wood Workshops : For a wide range of woodworking, including the production of furniture and components.
• Restoration and Maintenance Laboratories : To work and restore valuable wood.
• Wood Industries : For wood manufacturing and processing applications.

10. Advantages of Buying Used

Buying a used Steton Mod. C300 combined offers numerous advantages:

• Lower Cost : Lower price than a new machine.
• Reliability : Brand name machines like Steton are designed to last and continue to perform well.
• Efficiency : It offers all the features needed for effective woodworking, making it a practical and convenient choice.

In summary, the used Steton Mod. C300 combined machine represents a versatile and robust machine, ideal for laboratories and carpentry shops that need a complete solution for woodworking. With its wide range of functions and components, it is an excellent choice for ensuring precision and efficiency in daily operations.
